SAJ PDS23 Plus User Manual

PDS23 Plus Series
- 20 -
Chapter 4 Start-up and Operation
4.1 Keypad Description
RUN
STOP
5 0 .0 0
PRGM
ENT
SHIFT
RUN
STOP
▼
▼
Program/exit
key
Digital
Display
Data enter
key
Shift key
Run/stop
key
Up increase
key
Down decrease
key
ALM1
ALM2

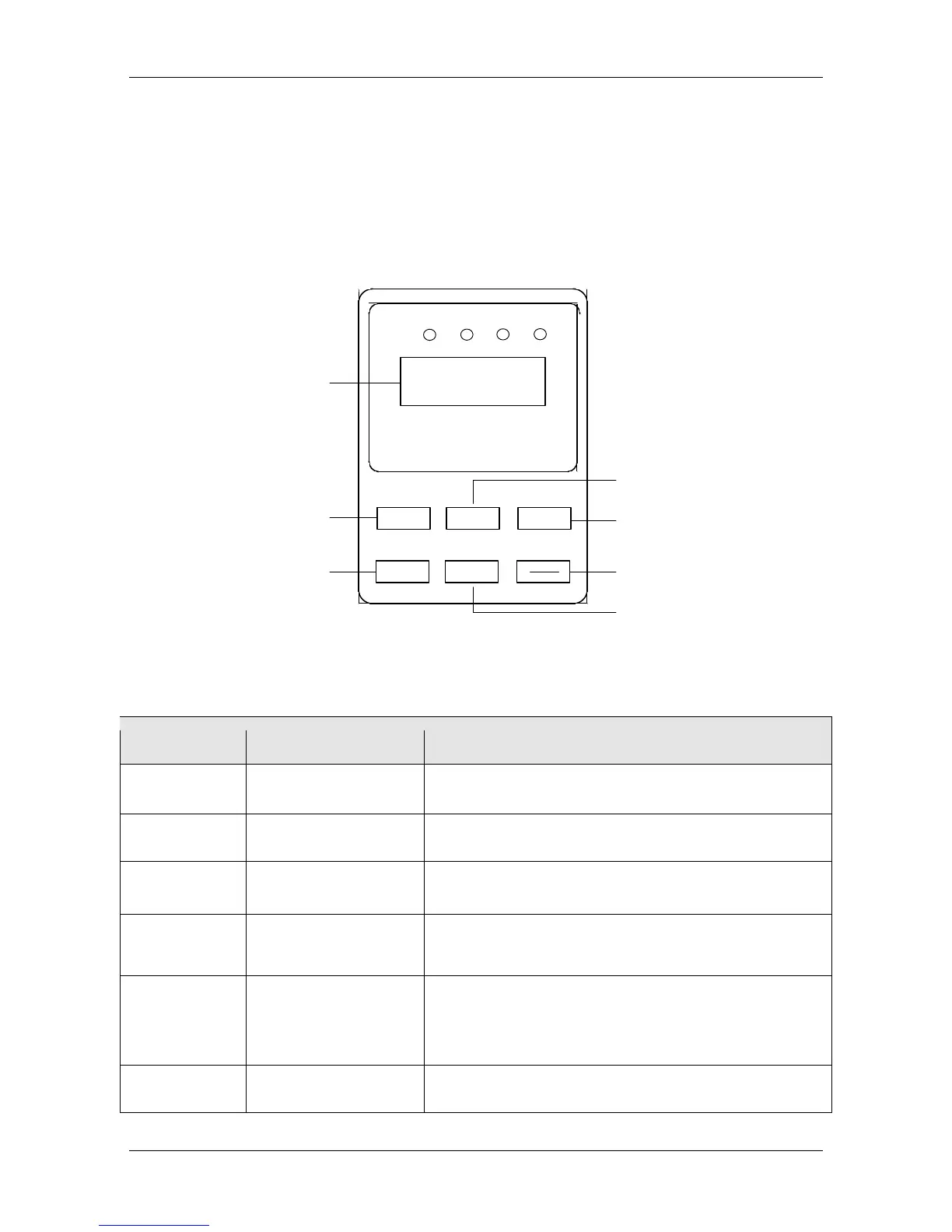

Figure 10 Keypad Schematic Diagram
4.1.1 Key Functions
Symbol
Button Name
Function Description
PRGM
Program/ Exit Key
Enter or exit of menu, parameter modification
ENT
Data Enter Key
Progressively enter menu and confirm parameter
▲
Up Increase Key
Progressively increase data or function codes.
▼
DownDecrease Key
Progressively decrease data or function codes.
SHIFT
Shift Key
Use it to select displayed parameters cyclically
during running or stop status. In parameter setting
mode, press this key to select the bit to be modified.
RUN/STOP
Run/stop key
Start to run the controller in keypad control mode.
