R6 Series
- 23 -
30CM

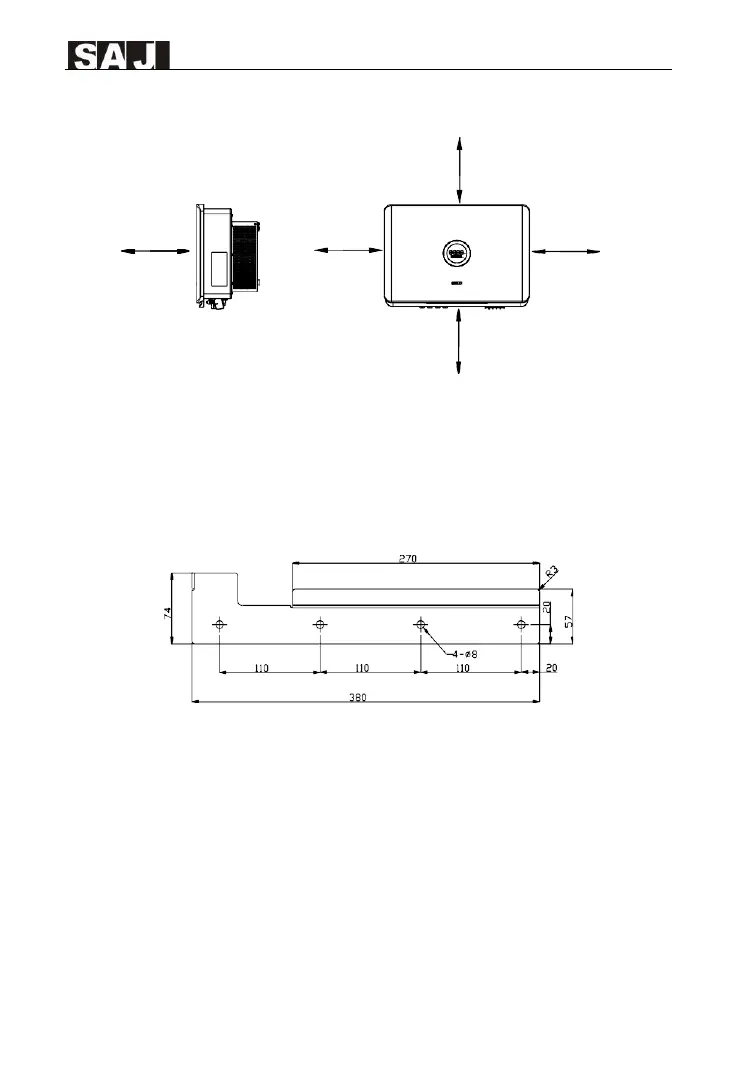

4.2 Installation position
4.4 Mounting Procedure
4.4.1 Mark the Positions of the Drill Holes of the Rear Panel
The mounting position should be marked as shown in Figure 4.3, Figure 4.4.
Figure 4.3 Dimensions of rear panel of R6-15K/17K/20K/22K/25K-T2-32
R6-5K/6K/8K/10K/15K-T2-32-LV
80CM
80CM
50CM
50CM
