R6 Series
- 29 -
5.2 Specifications for Electrical Interface

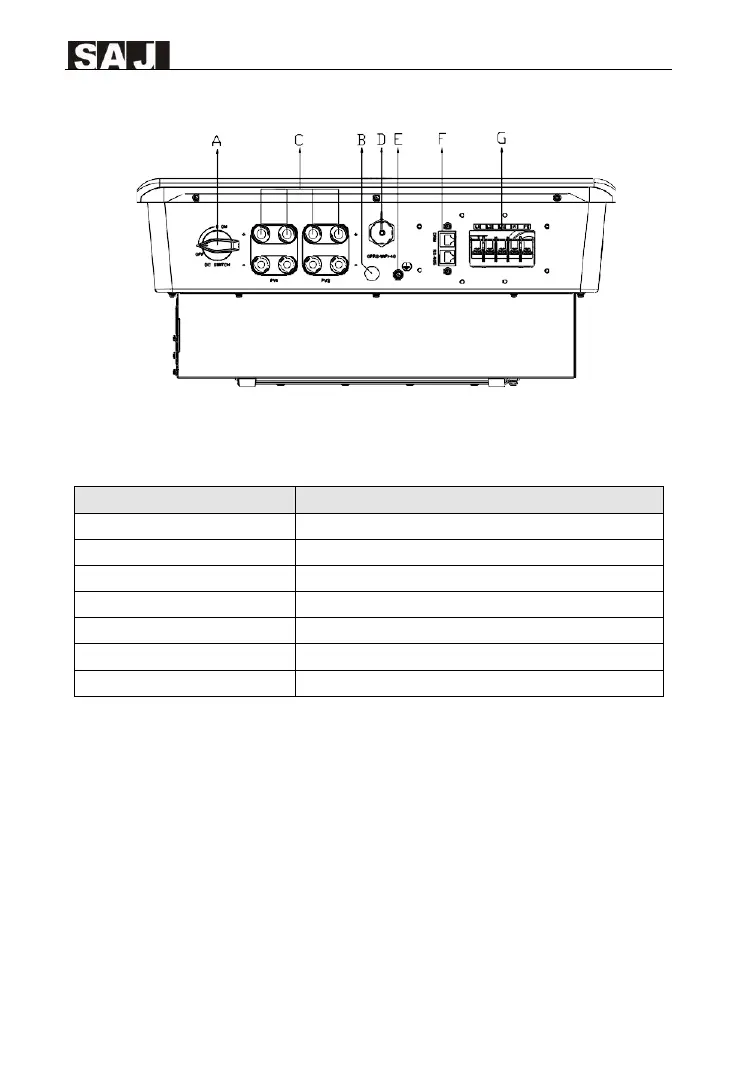

Figure 5.1 Electrical interface of R6-15K/17K/20K/22K/25K-T2-32,
R6-5K/6K/8K/10K/15K-T2-32-LV
Code
Name
A
DC Switch
B
Decompression Valves
C
DC Input
D
RS232 Communication (GPRS/ Wi-Fi /4G)
E
Ground Connection
F
RS485 Communication
G
Terminal Block
Table 5.1 Specifications for interface
