Salus Quantum SQ610 User Manual

3
Before you start:

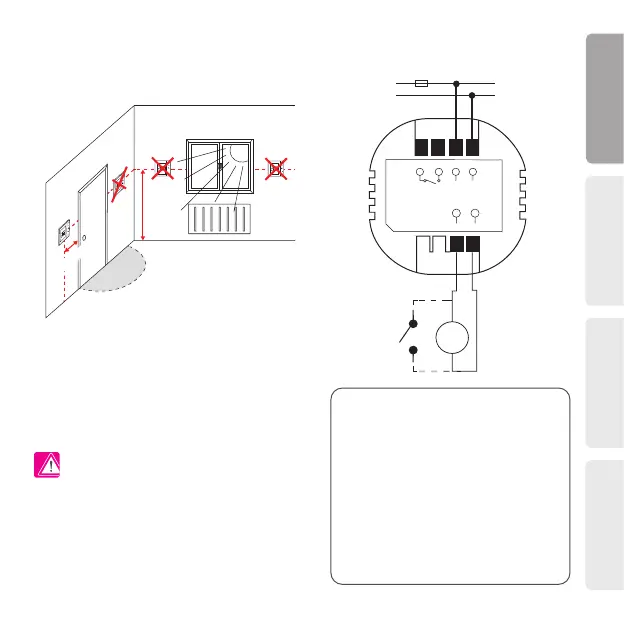

Wiring diagram:
Symbols explanation:
S - volt-free contact
T - temperature sensor
L, N - 230V AC pover supply
COM, NO - Voltage free output
S1,S2 Terminals:
- air or oor temperature sensor
- external volt-free contact to connect any ON/
OFF switch or occupancy sensor (Hotel card)
Mounting: to mount thermostat you can use included
accessories (mounting screws). Remove plate from
the back to mount it to the wall. After that just put
thermostat on the plate.
Please note:
The ideal position to thermostat mounting is about 1,5m
under oor level far from heating or cooling sources.
Thermostat can’t be exposed to sunlight or any extreme
conditions like for example draft.
COM
SQ610
NO L
L
230V~,50Hz
S1 S2
N
N
T
S
M
M
150 cm
min 20 cm
Select correct thermostat location
AC 230V
Español Deutsch
Português
English
