7

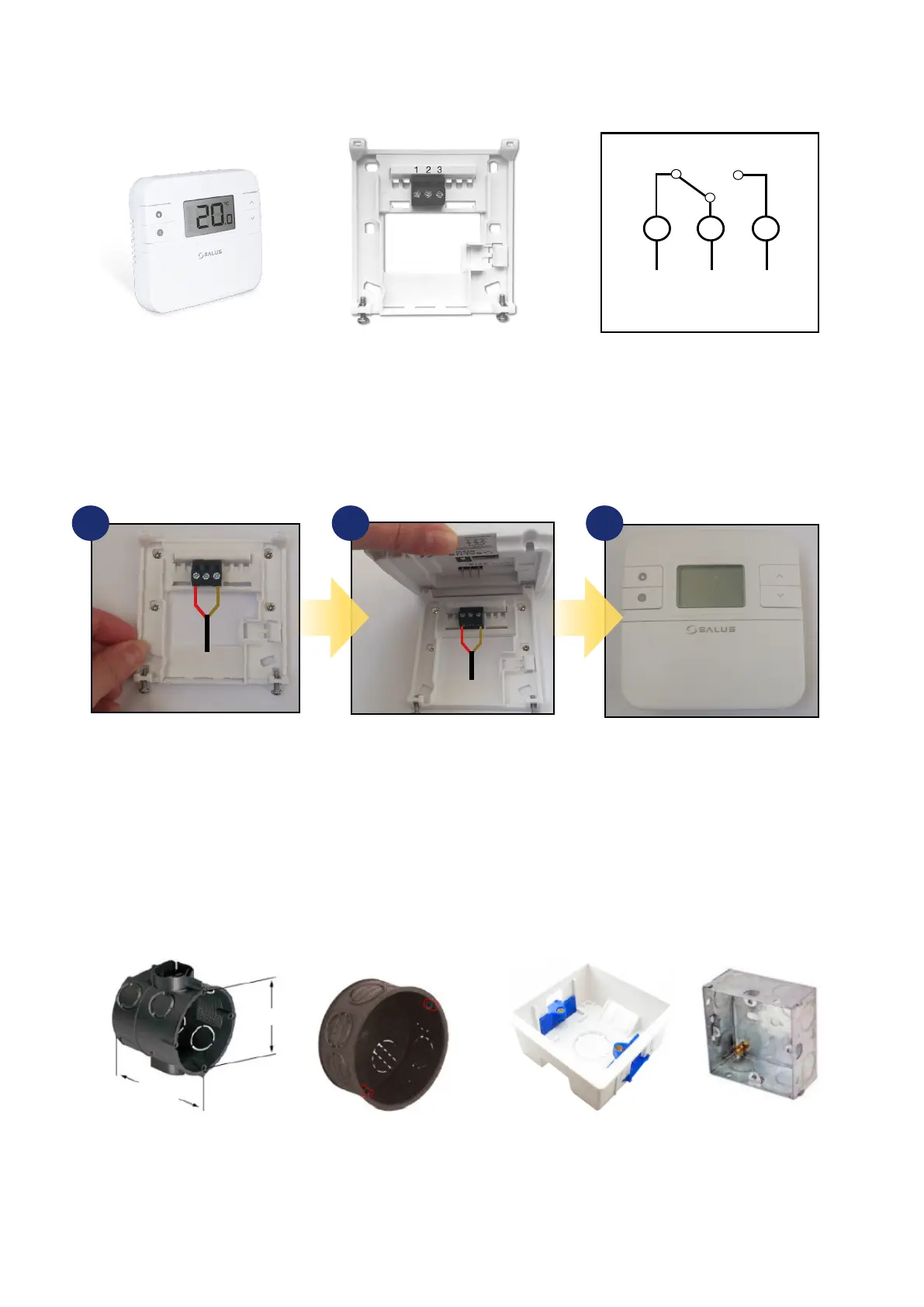

2.3 Wall mounting
RT310 front Backplate
(two screws at the bottom)
Wiring conguration
1
2
3
COM
NO
NC
Fit the front housing.
Press lightly.
Note: You can also use a ush mount housing and a German and UK wall box to mount the thermostat directly into the wall. The standard wall box has a
diameter max 60mm and depth from 41-46 mm. The cable entry on the backplate must allow a cable with 2*1,5 mm
Fix the backplate
to the wall.
Align the front housing
at the top edge.
60mm
46mm
Content used for thermostat mounting:
How to mount the thermostat to the wall:
1 2 3
