BOILER CONTROL WIRING TERMINALS
Terminal
Identifier
Description
1
N
Neutral
2
L
Live feed (230V AC)
3
COM
Linked Live feed
4
N.O.
Switched Live (Normally Open [N.O.] contact)

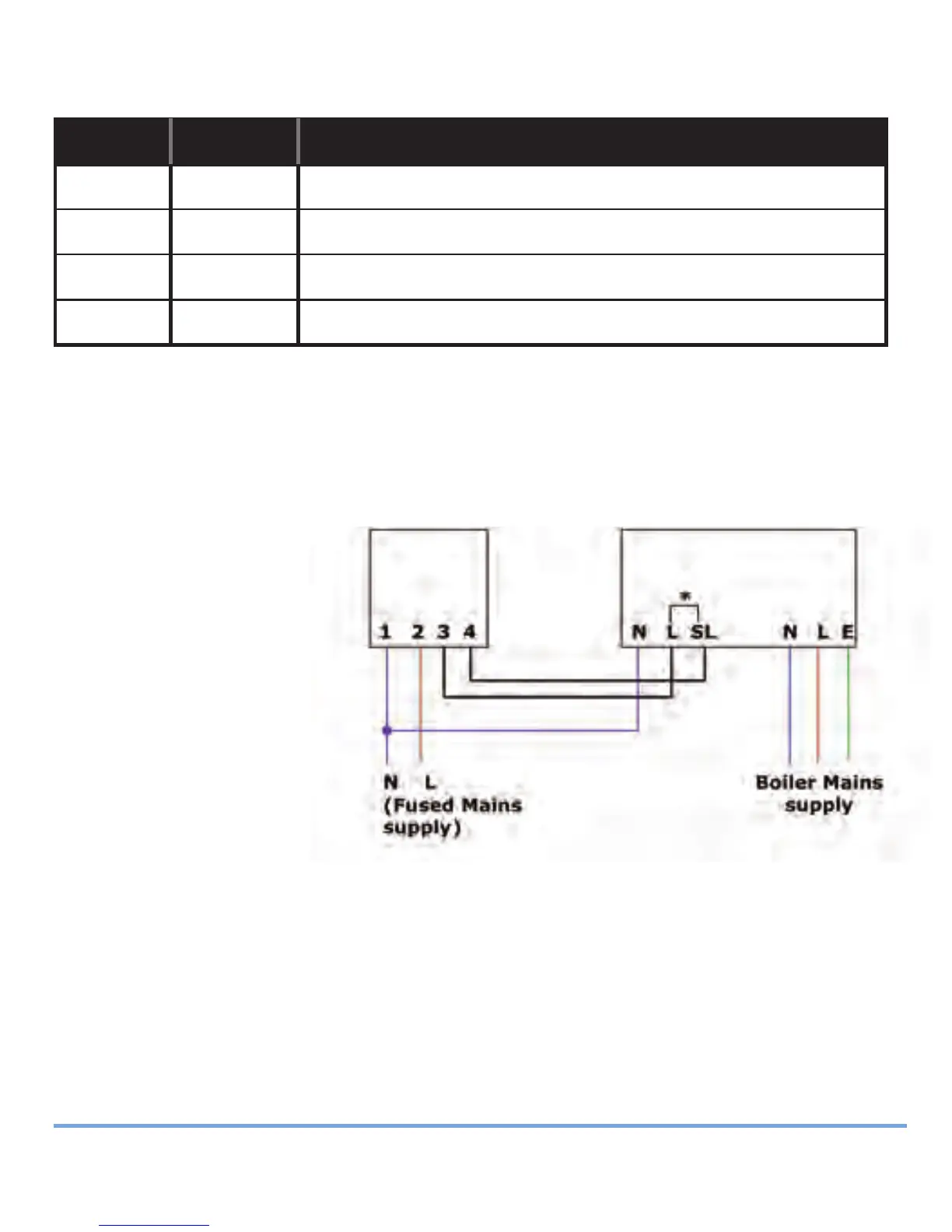

TYPICAL WIRING INSTALLATION
RT500BC INSTRUCTION MANUAL
6
Boiler Control
Boiler
Salus RT500BC Boiler Control 026_89 21/01/2012 18:18 Page 6
5
7
Table of Contents
Product Compliance
2
Safety Information
2
Installation
4
Boiler Control Wiring Terminals
6
Typical Wiring Installation
6
Synchronising Boiler Control
10
After Installation
13
User Interface
14
Setting the Time
15
Operation
15
5/2 Day Mode
16
Programming
16
Day Mode
18
Frost Protection
20
Reviewing Set Point Temperature
20
Temporary Override
21
Reset Button
23
Sleep Mode
23
Maintenance
24
Warranty
24
Product Specification
25
