Samson SERVO 200 User Manual

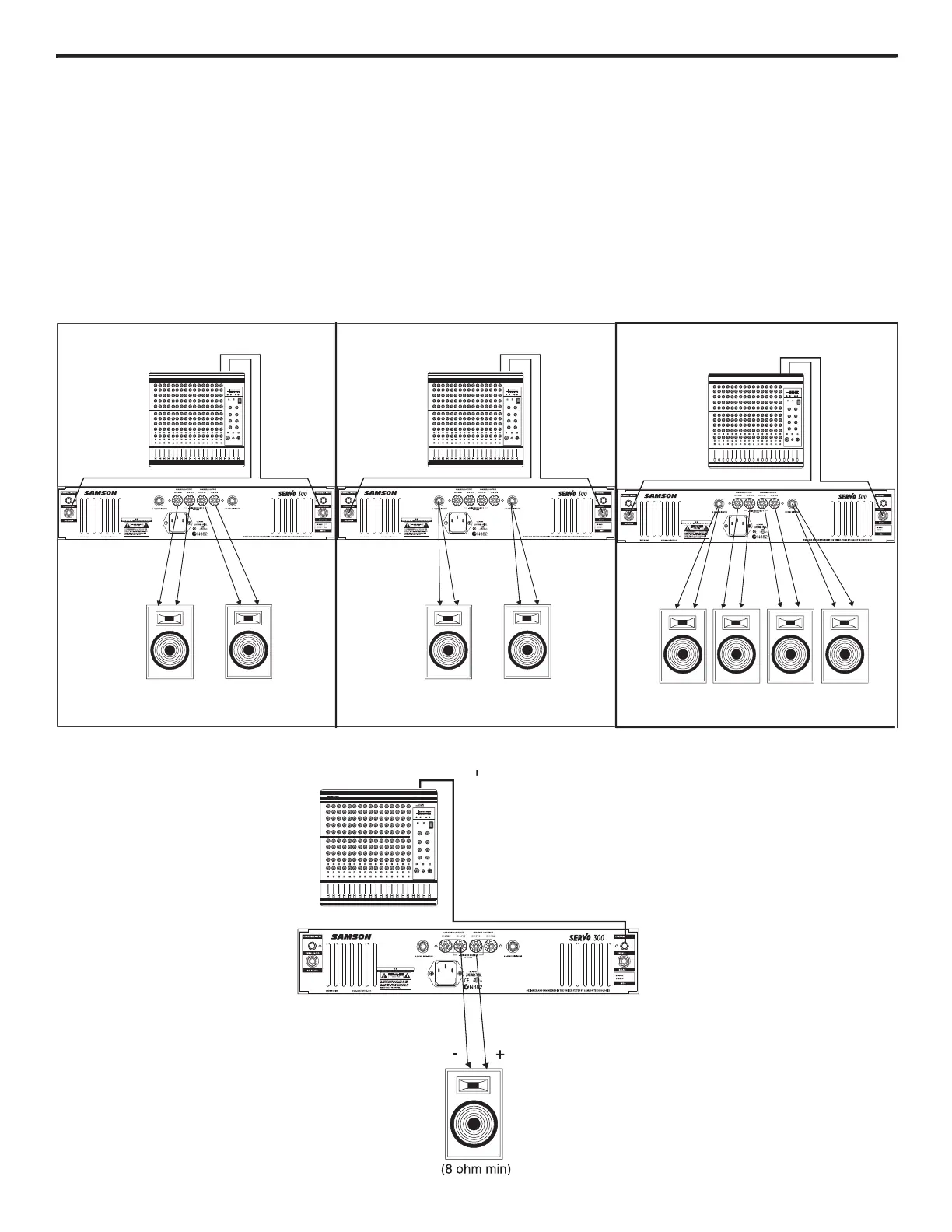

The illustrations on this page show the required
interconnections when using the Servo Series in
Stereo and Bridged modes.
Servo Series Connections
9
+-
-+
(4 ohm min)
(4 ohm min)




+-
-+
(4 ohm min)
(4 ohm min)




�
+
-
-
+
+
-
+
-
(8 ohm min)
(8 ohm min)
(8 ohm min) (8 ohm min)

MPL2242
MMPL2242

Stereo Mode: (two or four speakers)
Bridged Mode: (single speaker only)

Samson SERVO 200 Specifications

General

Damping factor	280
Amplifier class	A/B
Frequency range	20 - 20000 Hz
Audio output channels	2.0 channels
Peak power per channel	100 W
Signal-to-Noise Ratio (SNR)	102 dB
Total Harmonic Distortion (THD)	0.05 %
RMS power output per channel (8 Ohm)	66 W
Bridge-mode power output per channel (8 Ohm)	200 W
Headphone connectivity	6.3 mm
Speakers connectivity type	6.35 mm / RCA
Purpose	-
Product color	Black
Connectivity technology	Wired
AC input voltage	115-230 V
AC input frequency	50 - 60 Hz
Power protection features	Over current, Overheating, Short circuit
LED indicators	Yes

Weight and Dimensions

Depth	297 mm
Width	483 mm
Height	89 mm
Weight	6820 g
