Samson VHF Series User Manual

MANUFACTURER MODEL PIN 1 PIN 2 PIN 3
AKG C410
SHIELD
WHITE JUMP TO PIN 2
RED
AUDIO TECHNICA AT831
YELLOW x 2
RED x 2 JUMP TO PIN 2
SHIELD
AUDIO TECHNICA ATM75
YELLOW x 2
RED x 2 JUMP TO PIN 2
SHIELD
AUDIO TECHNICA ATPRO8HE
YELLOW x 2
N/C RED x 2
SHIELD
AUDIO TECHNICA ATPRO35X
YELLOW x 2
RED x 2 JUMP TO PIN 2
SHIELD
AUDIO TECHNICA MT350
SHIELD WHITE JUMP TO PIN 2
CROWN CM311(E)
SHIELD
RED JUMP TO PIN 2
WHITE
SONY ECM44
SHIELD
RED JUMP TO PIN 2
WHITE
SONY ECM55
SHIELD
RED JUMP TO PIN 2
WHITE
SONY ECM77
SHIELD
RED JUMP TO PIN 2
WHITE
SONY ECM144
SHIELD WHITE JUMP TO PIN 2
SENNHEISER MKE2
SHIELD
JUMP TO PIN 2
BLUE
RED
SENNHEISER MKE40
SHIELD
JUMP TO PIN 2
BLUE
RED
SENNHEISER MKE48
SHIELD
JUMP TO PIN 2
BLUE
RED
SAMSON ECM40
SHIELD WHITE JUMP TO PIN 2
COUNTRYMAN ISOMAX
SHIELD WHITE JUMP TO PIN 2
GUITAR
SHIELD N/C AUDIO
PIN INFORMATION
SWITCHCRAFT
GROUND +Vdc AUDIO
TA3F

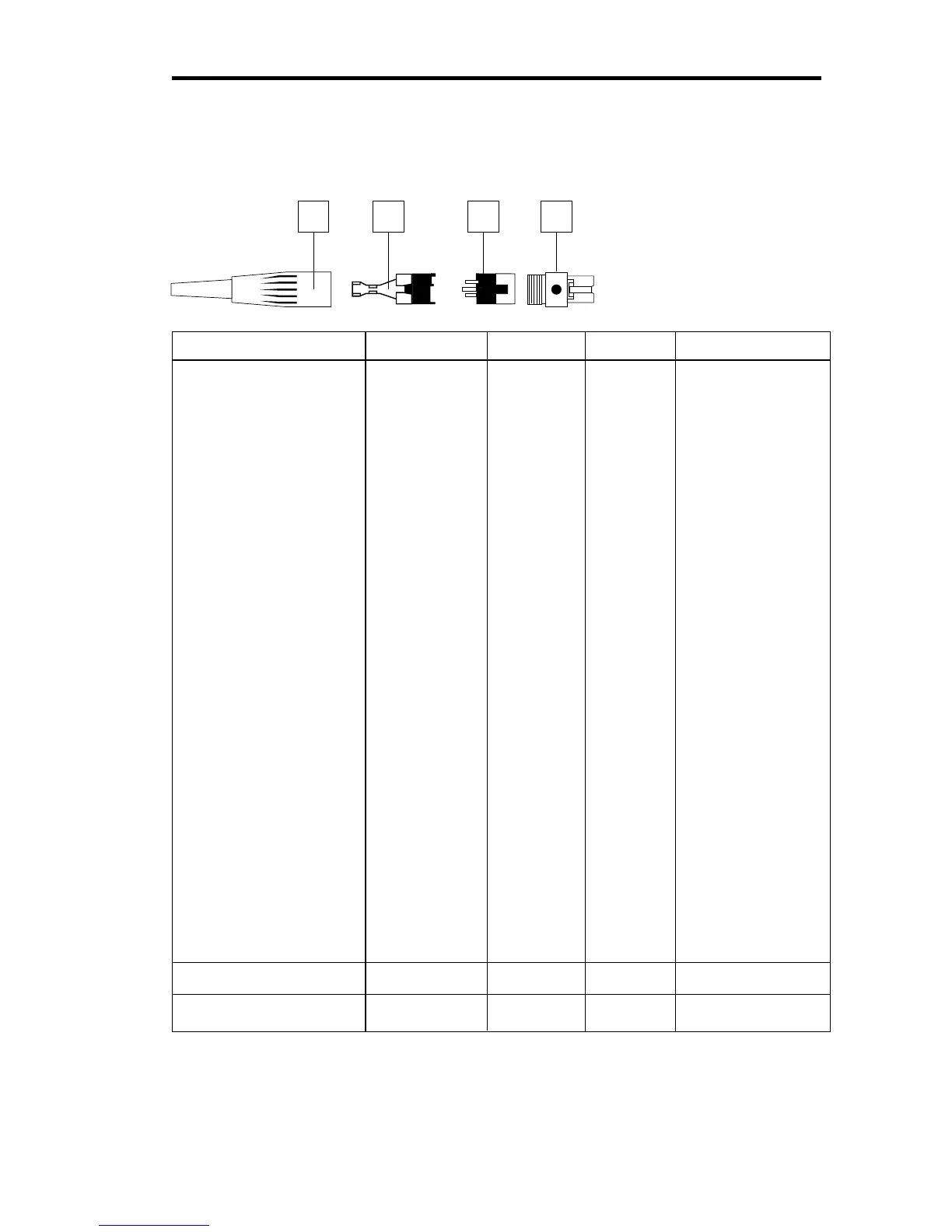

Procedure for wiring VT3L connector: Unscrew rubber boot 1 and pass
wire through 1 and 2. Solder wire to 3 after removing from 4 (use chart
above). Reinsert 3 to 4 with attached wire (3 is keyed to fit 4). Plug 2 into
3 again (2 is keyed to 3) and crimp wire. Rescrew rubber boot 1 to 4.
Appendix A: VT3L Multipin
Wiring Guide and Chart
SWITCHCRAFT TA3F
1 2 3 4
51
