Samson VHF Series User Manual

6

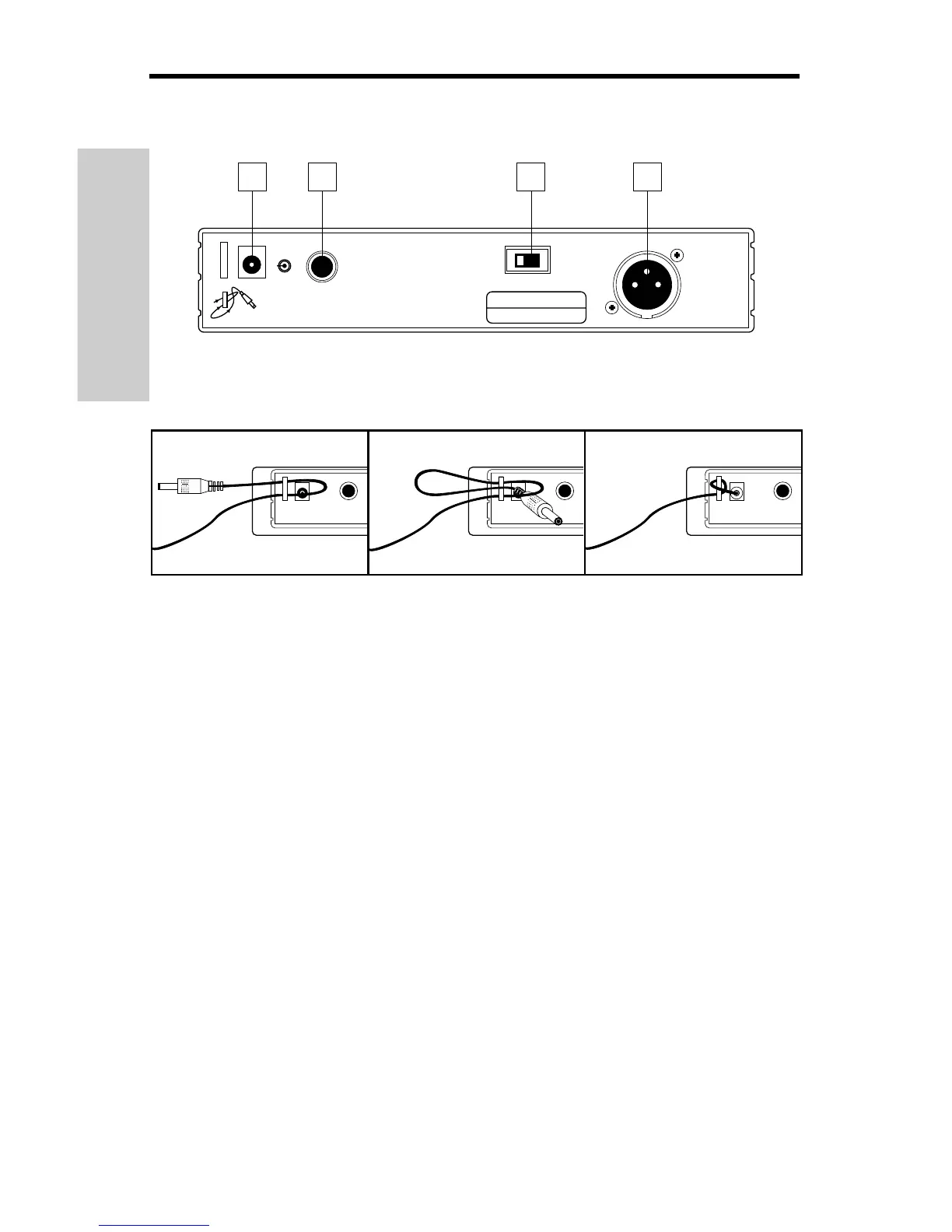

Guided Tour - VR3TD Rear Panel
1: DC input - Connect the supplied 12 volt 250 mA power adapter here, using the strain
relief as shown in the illustration below. WARNING: The substitution of any other kind of
power adapter can cause severe damage to the VR3TD and will void your warranty.
2: Unbalanced output* - Use this unbalanced high impedance (5K Ohm) 1/4" jack when
connecting the VR3TD to consumer (-10) audio equipment. Wiring is as follows: tip hot,
sleeve ground.
3: Audio Output Level switch - Sets the audio output level attenuation of the balanced
output (see #4 below) to -20 dBm (line level) or -40 dBm (mic level). See the “Setting Up
and Using Your VHF TD Series / VHF Series System” section on page 10 in this manual
for more information.
4: Balanced output* - Use this electronically balanced low impedance (600 Ohm) XLR
jack when connecting the VR3TD to professional (+4) audio equipment. Pin wiring is as
follows: Pin 1 ground (shield), Pin 2 high (hot), and Pin 3 low (cold).
* If required, both the unbalanced and balanced outputs can be used simultaneously.
+
-
DC INPUT
UNBALANCED OUTPUT
CAUTION
USE SAMSON
AC ADAPTER
ONLY
AC CABLE LOCK
CABLE LOCK LOOP THRU AND TIE
-10 dB 5KΩ
S. No.
CH :
Diversity Receiver
F:
BALANCED SWITCH
LINE:
-20dBm600Ω
MIC:
-40dBm600Ω
MIC
LINE
BALANCED OUTPUT
XLR:
①GND
②HOT
③COLD
POWER RATING
DC 12V, 1.9W(160mA)
1
2
3
4
-
Using the strain relief: Gather up a loop of wire and pass it through the strain relief,
then pass the adapter plug through the loop in order to create a knot.
