13 Circuit Descriptions
13-1
13 Circuit Descriptions

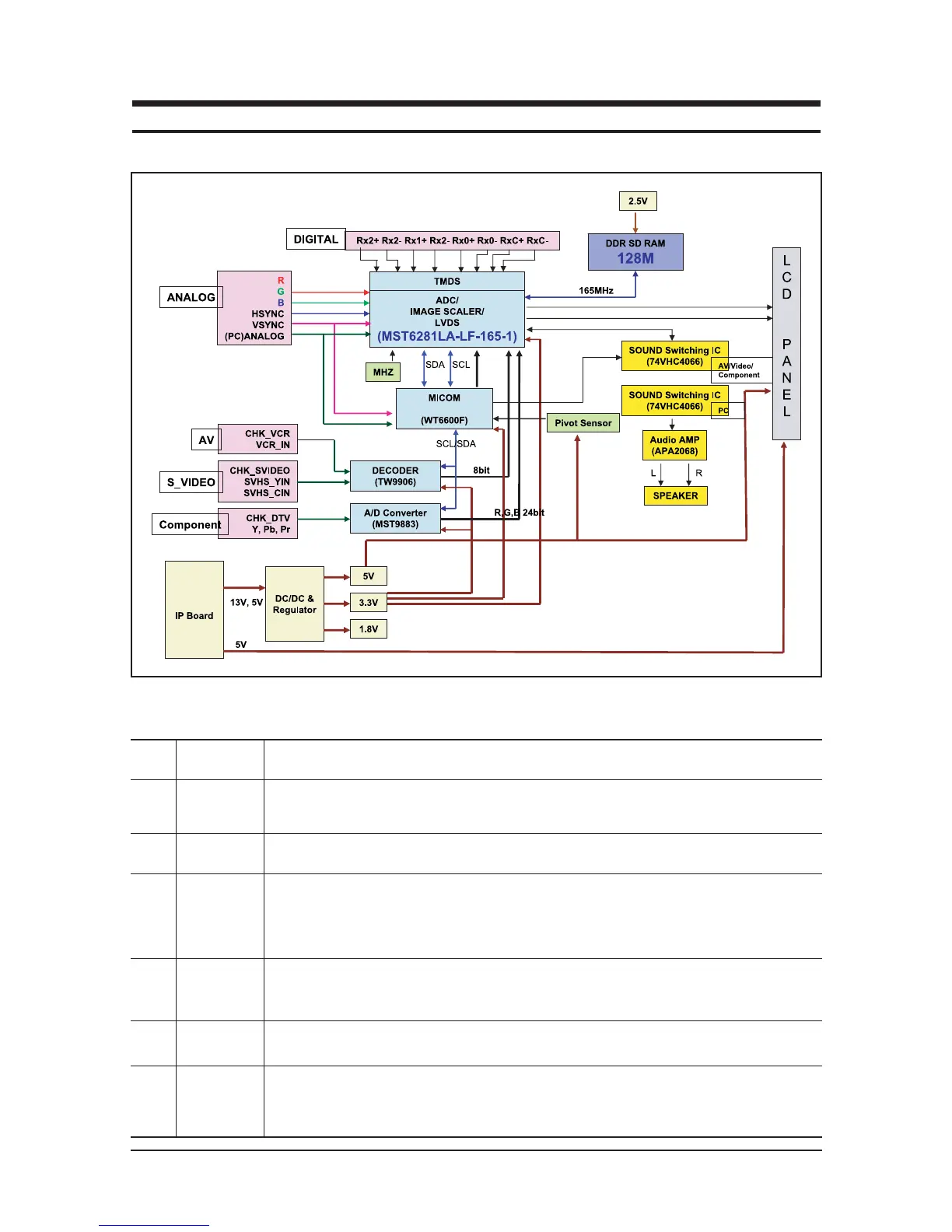

13-1 Block description
13-2 Block operating
No Feature Description
Scaler Integrate ADC and TMDS, Scaling part
DDR memory Save frame information that SCALER needed
This chip receives video signal from the source and decodes signal to scaler needed
-.MCU recognize angle through the sensor and rotate OSD
-.Magic tune3.6 receive Basic information from MCU and rotate screen through the Pivot soft
ware
Microcontroller
Micom control all function of monitor
Scaler
DDR
MEMORY
VIDEO
DECODER
Pivot sensor
Flash memory save information that MICOM needed
Program update is possible through the Firmware
FLASH
MEMORY
MICOM
1
2
3
4
5
6
