1. Pull out the freezer drawer ( 1 ), then you can see the middle hinge ( 2 ) .
2. Insert the supplied hex wrench ( 3 ) into the shaft ( 4 ) of the middle hinge.
3. Please adjust the height by turning the hex wrench ( 3 ) clockwise (
) or counter-clockwise ( ).
1. After adjusting the doors, please insert the supplied fastener ( 6 ) using pliers ( 5 ) in the gap between
the hinge-grommet ( 7 ) and the lower hinge ( ). The number of fasteners you’ll need to insert
depends on the gap.

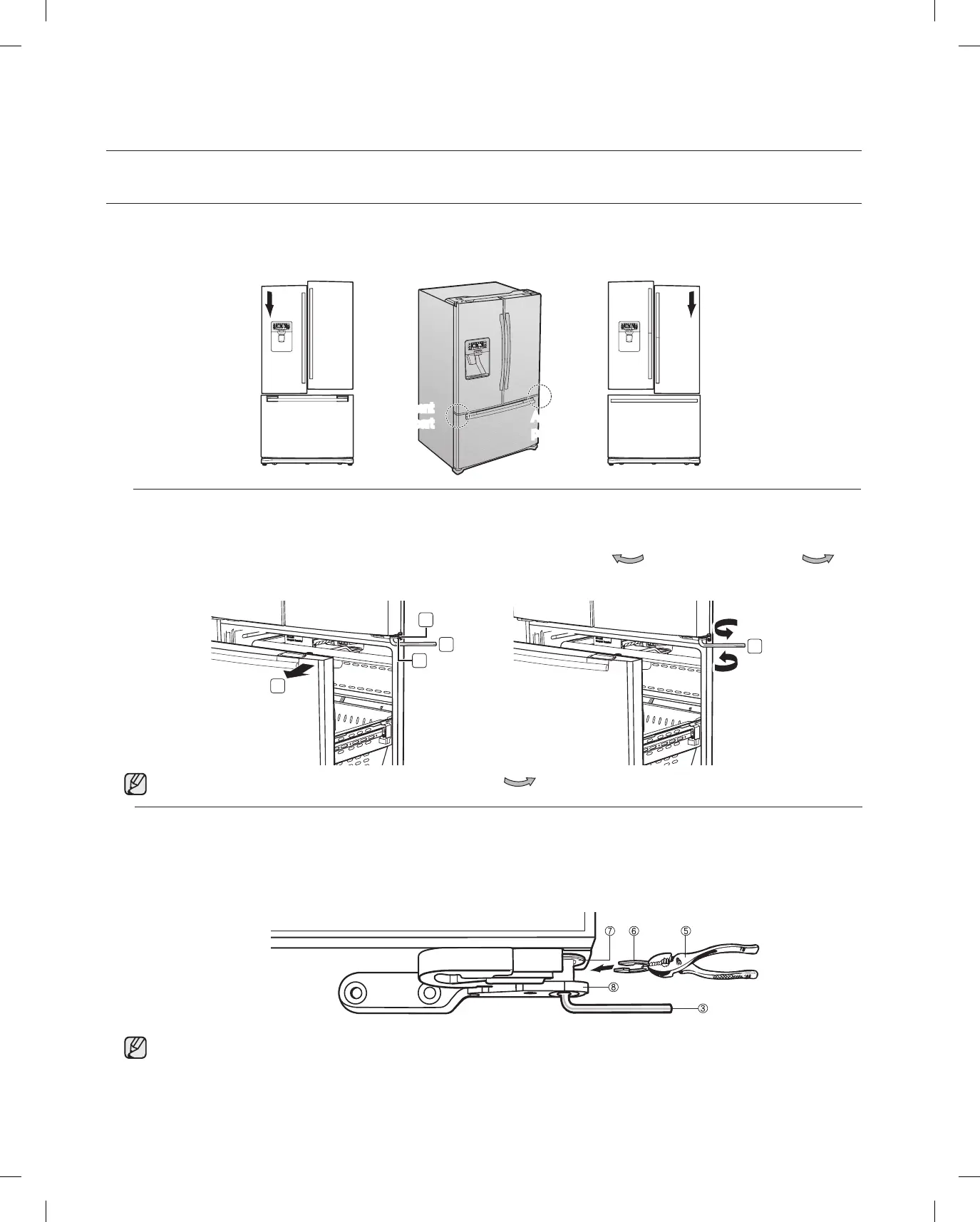

MAKING MINOR ADJUSTMENTS BETWEEN DOORS
Remember, a level Refrigerator is necessary for getting the doors perfectly even. If you need help, review the
previous section on leveling the Refrigerator.
Setting up your French Door Refrigerator
When you turn the hex wrench counter-clockwise( ), the door will move up.
2 fasteners are enclosed with the refrigerator.
The thickness of each fastener is 0.04”.
When the left
door is lower
than the right
door.
When the left
door is higher
than the right
door.
Adjustment
part
Adjustment
part
3
2
3
4
1
