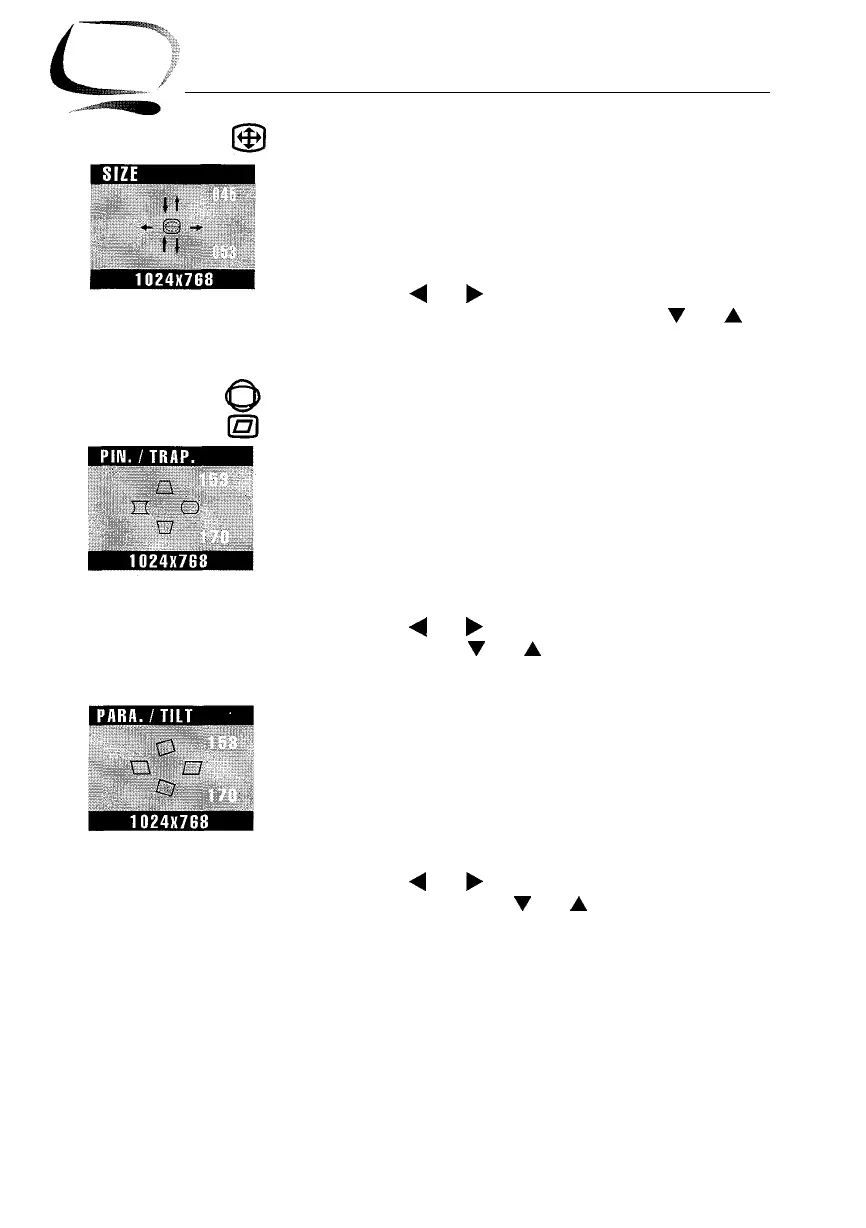

Chapter Three: Adjusting Your Monitor
Size (H/V)
Follow these instructions to change the size of the moni-
tor’s entire display.
1
Push this button once to adjust the horizontal and
vertical size of the entire display.
2
Use the
4
and
b
buttons to change the horizontal
size (width) of the entire display; use the
V
and
A
buttons to change the vertical size (height).
Geometric Distortion (G/D)
First function: Pincushion / Trapezoid
Adjust the pincushion setting when the sides of the display
are bowed in or bowed out.; adjust the trapezoid setting to
equalize the length of the top and bottom edges.
1
Push this button once to access the pincushion and
trapezoid functions.
2
Use the
4
and
b
buttons to change the pincushion
setting; use the
V
and
A
buttons to change the
trapezoid setting.
Second function: Parallelogram/ Tilt
Adjust the parallelogram setting when the display is lean-
ing left or right; adjust the tilt setting when the display area
appears rotated to the left or right.
1
Push this button twice to access the parallelogram
and tilt functions.
2
Use the
4
and
b
buttons to change the parallelo-
gram setting; use the
V
and
A
buttons to adjust the
tilt setting.
