Samsung Techwin User Manual

6
0 7 / J A N/ 2 0 0 7
0 9 : 3 7 :1 5
C A M 1
O : - 2 3 -
I : 1 2 3 45 6 7 8
3 0 7 / 4 6/ x 3
P R E S E T 3
P R E S E T3
P A R K I N G B A Y 1
R E C E P TI O N
Basic speed dome operation
Programming, calling and deleting presets

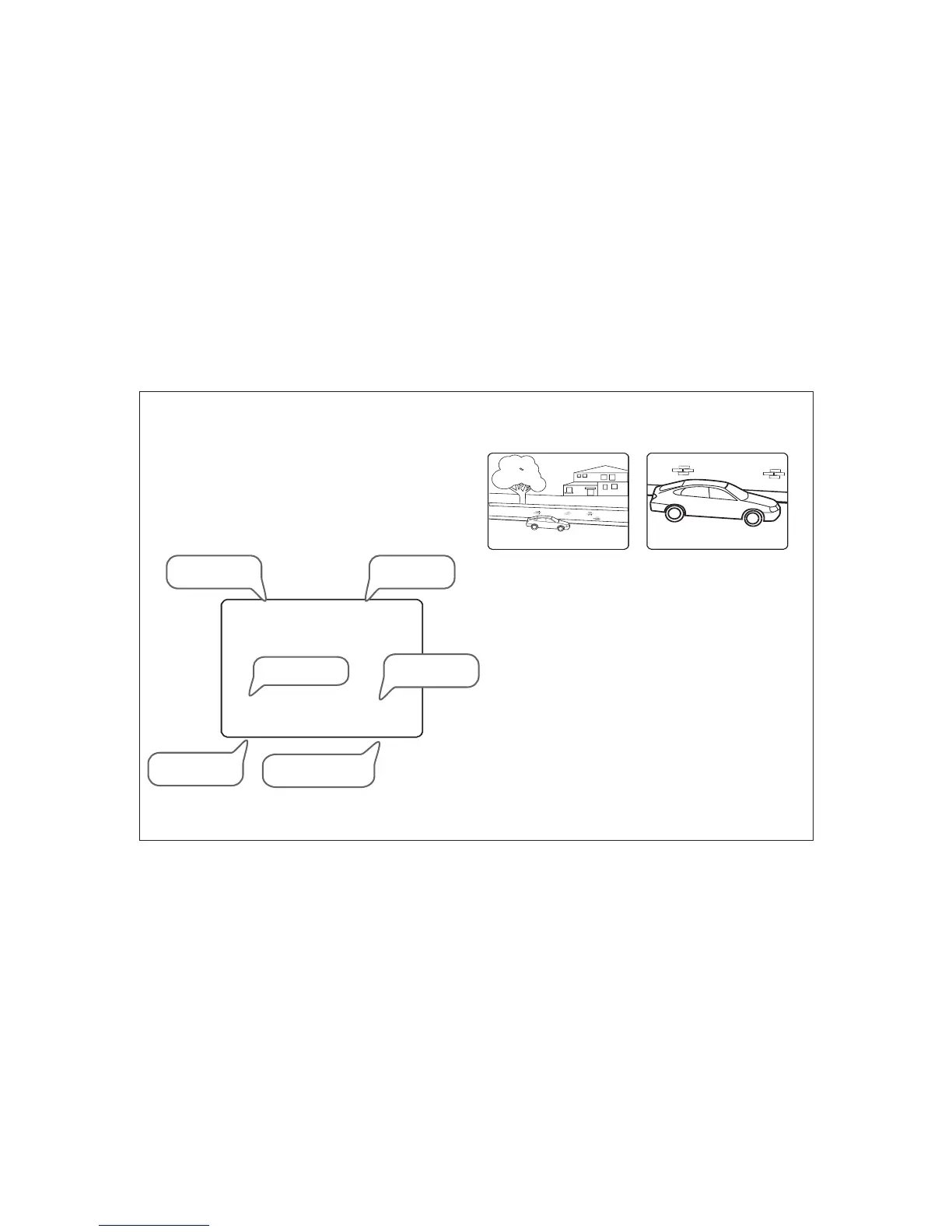

Understanding the On Screen Display (OSD)
S E T P R E S E T 1
There are many different PTZ keyboards and DVR systems capable
of controlling this speed dome, and it would be impossible to
describe them all here. Therefore, examples given in the following
pages are based on the more popular control equipment available.
Whilst the principles of operation are the same, regardless of the
control equipment used, reference may need to be made to the
manual supplied with your particular control equipment.
To program a preset position, move the speed
dome to the desired scene and zoom level
and press:
SET - XXX - ENTER
Where XXX is a preset number between 1 &
128 (but note that preset 95 is reserved and
cannot be used). Confirmation is displayed on
the OSD.
To delete a preset position, press:
CLEAR - XXX - ENTER
Where XXX is a preset number between 1 &
128 (but note that preset 95 is reserved and
cannot be used). The preset position is
cleared from memory.
To reprogramme a preset position, follow the
steps for programming a preset - it is not
necessary to delete the old preset position first
PRESET LABEL: If defined,
is displayed when a preset
position is called
CAMERA ID: Shows the
current ID as defined by the
dip switch settings
ALARM I/O: Shows which
alarm inputs and outputs are
active
DATE/CLOCK: Shows
current time and date
PTZ INFORMATION: The current
pan/tilt position in degrees and
the current zoom level
ACTION TITLE: Shows
current speed dome
action
To go to a preset position thats already
been programmed, press:
SHOT - XXX - ENTERXXX - Preset
Where XXX is a preset number between 1 &
128 (but note that preset 95 is reserved and
cannot be used). The speed dome moves to
the preset position. Confirmation and preset
title (if defined) is displayed on the OSD.
O : - - - -
I : 1 2 3 4 5 6 7 8
3 2 5 / 3 7 / x 1
O : - - - -
I : 1 2 3 4 5 6 7 8
3 2 5 / 3 7 / x 3
0 7 / J A N / 2 0 0 7
1 2 : 3 8 : 0 5
C A M 1
0 7 / J A N / 2 0 0 7
1 2 : 4 2 : 2 2
C A M 1
