NOTE
x
Make sure to distinguish between the front and back of each component when assembling them.
x
Make sure that at least two people lift and move the TV.

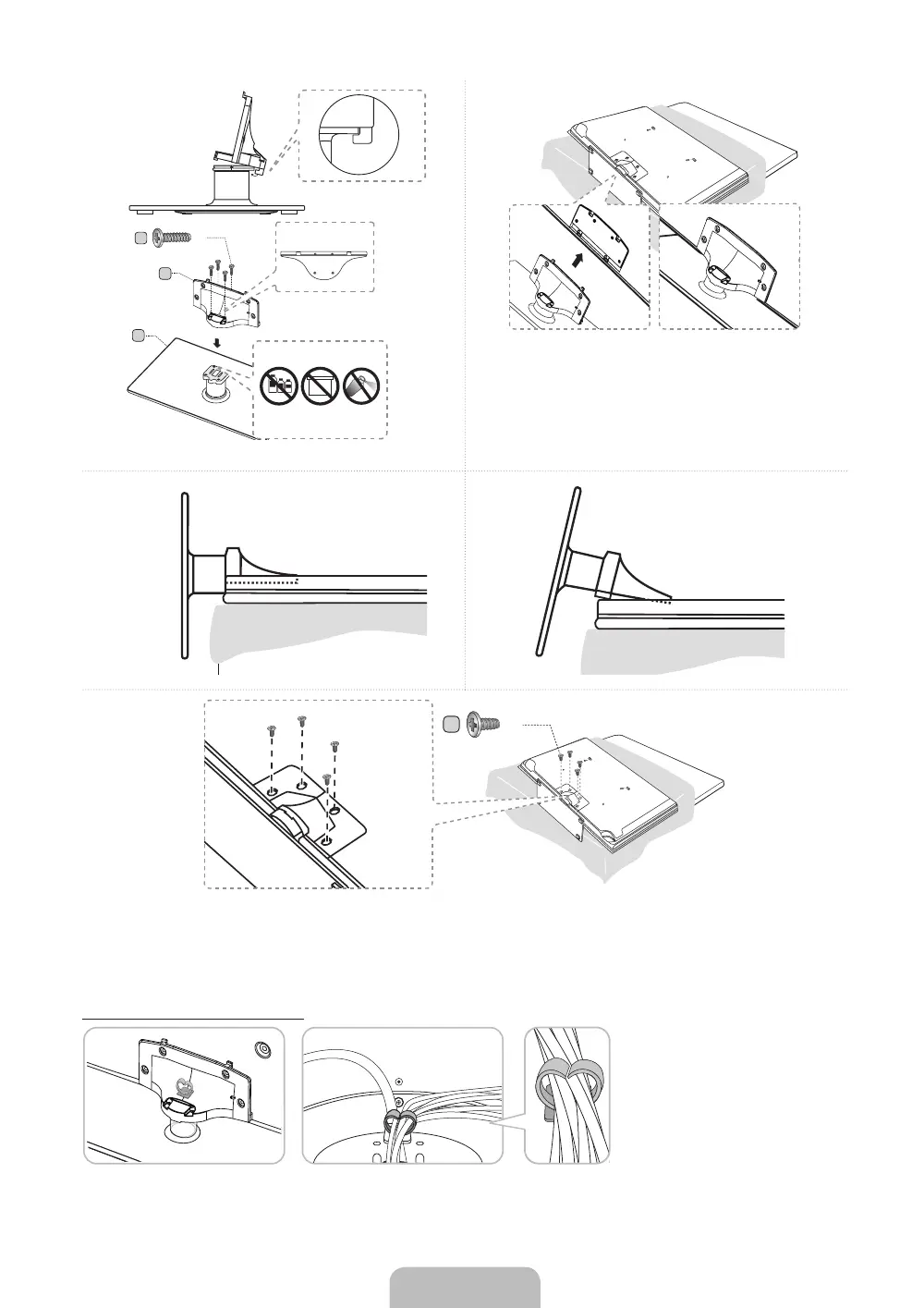

Assembling the Holder-Wire stand
Side View
D
(M4 X L8)
x4
(Correct assembly) (Incorrect assembly)
✎
Place a soft cloth over the table to protect the TV, and
then place the TV on the cloth screen side down.
✎
Insert the Stand Guide into the slot of TV bottom side.
1
4
5
3
2
B
A
Front
C
(M4 X L12)
x4
Top View
DO NOT USE
CHEMICALS
DO NOT USE
GREASE
DO NOT USE
OIL
ATTENTION
Rear
[UD6000(6050)-ZA]BN68-03330A-02Eng.indb 5 2011-02-21 오후 3:44:01
To Next Page
