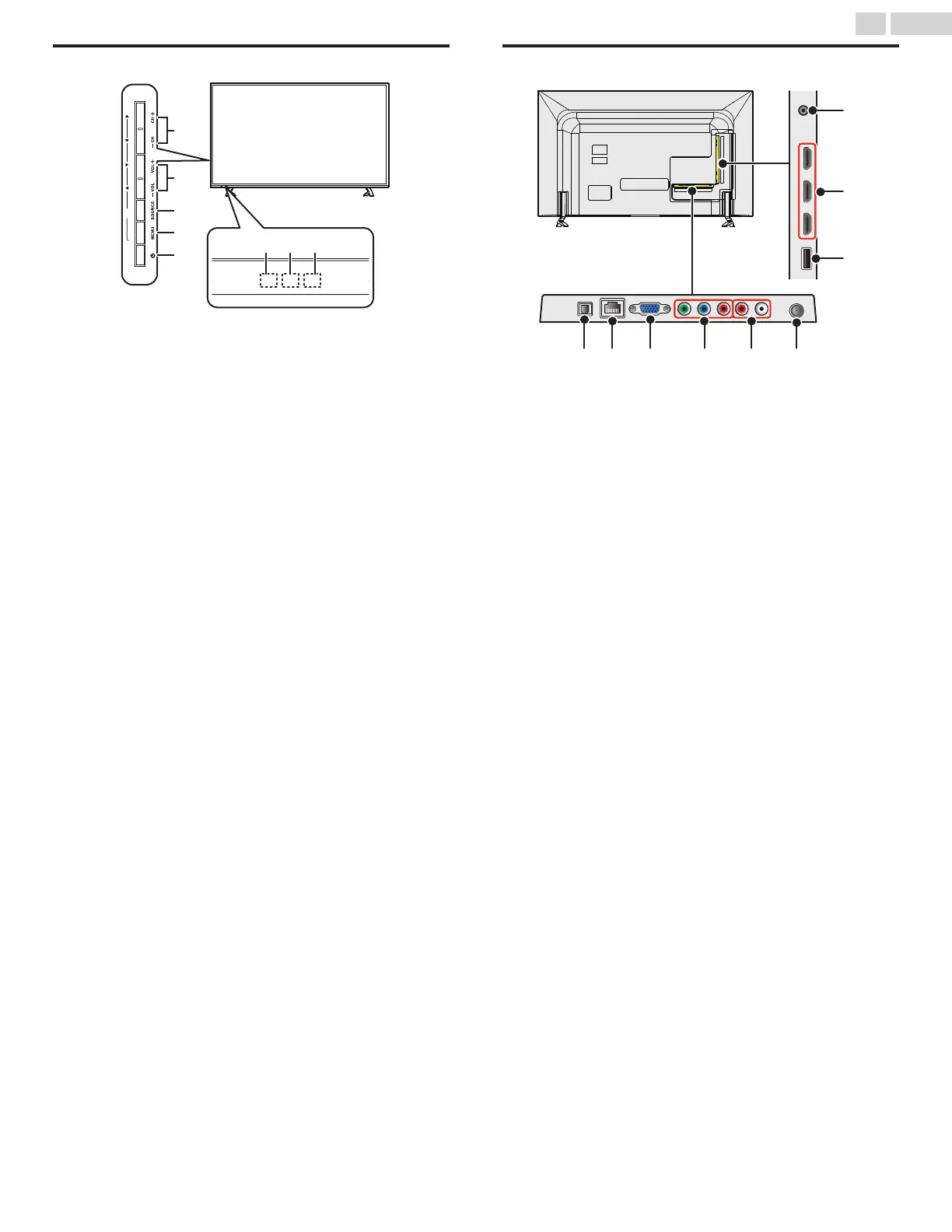

Control Panel
OKOK
fg
h
d
e
c
b
a
a
CH H / I
Selects a Channel. In the Menu screen, moves the Cursor
Up (H)/Down (I).
b
VOL J / K
Adjusts the Volume. In the Menu screen, moves the Cursor
Left (J) / Right (K).
VOL J
: Volume Down
VOL K
: Volume Up
c
SOURCE
Selects Connected Devices.
d
MENU
Opens the Main On-screen Menu.
e
B (POWER)
Turns the TV On and Off.
f
Power On / Standby Indicator
(On : lights in red, Standby : no light)
g
Remote Control Sensor
Receives IR signal from Remote control.
h
Ambient Light Sensor
Alters the brightness of the TV screen automatically by detecting
your room lighting level. Do not block this Light Sensor window
which allows proper operation.
Terminals
n
o
p
q
j
i
m
kl
i
Digital Audio Output jack
Digital Audio (S/PDIF) Output to home theaters and other Digital
Audio systems.
j
Ethernet port
For Internet connection using an Ethernet Cable with an RJ-45
connector.
k
PC Input jack
VGA cable connection for PC.
l
Component (Y/Pb/Pr) / Composite Video (VIDEO) Input jack(s) for
VIDEO
Composite Video Input (VIDEO) jack is a shared jack with
Component Video Input (Y) jack.
m
Analog Audio (L/R) Input jacks
Connect Analog Audio signals from;
–
HDMI-DVI / Analog Audio (L/R) jacks signal
–
Component Video / Analog Audio (L/R) jacks signal
–
Composite Video / Analog Audio (L/R) jacks signal
–
PC Connection / Analog Audio (L/R) jacks signal with Stereo mini
3.5mm plug Audio cable on PC
n
75 ohm Cable / Antenna connection
Signal Input from an Antenna or Cable / Satellite Set-top Boxes.
o
Headphone Audio Output jack
Headphone 3.5mm stereo jack for personal listening.
p
HDMI Input jack(s)
Digital Audio and Video Input from high definition Digital devices
such as DVD / Blu-ray disc players, Cable / Satellite Set-top Boxes,
PC’s, etc.
* For HDMI 1 only
In addition to normal HDMI and HDMI-DVI functionality, it outputs
TV Audio to an HDMI-ARC-compliant device, such as a home
theater system.
q
USB terminal
Data Input from USB Memory Stick only.
Do not connect any device to this terminal such as Digital camera,
keyboard, mouse, etc.
11
.English
Continued on next page.

Sanyo FW50C85T Specifications

General

Brand	Sanyo
Model	FW50C85T
Category	LCD TV
Language	English
