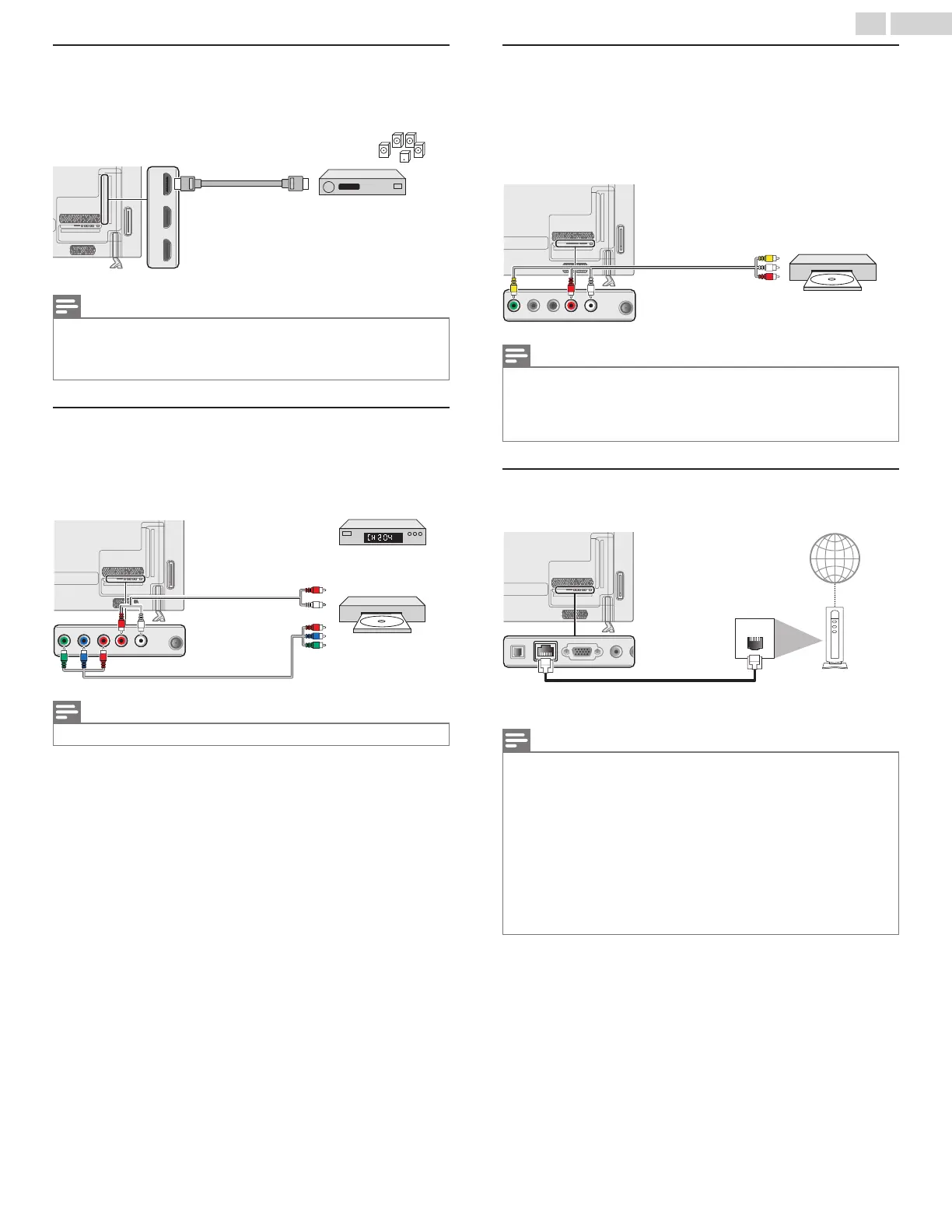

HDMI-ARC Connection
HDMI-ARC allows you to use HDMI-CEC to output TV Audio directly to
a connected Audio device, without the need for an additional Digital
Audio cable.
HDMI 1 IN only
Digital home theater
amplifier that supports
HDMI-ARC
Note(s)
●
The HDMI 1 connector is HDMI Audio Return Channel (ARC) compliant. Use it to output
Digital Audio to an HDMI home theater system.
●
Be sure that the device is HDMI CEC and ARC compliant and that the TV is connected to
the device using an HDMI cable attached to HDMI-ARC connectors.
Component Analog Video Connection
Component Analog Video Connection offers Better Picture quality for
Video Devices connected to the Unit.
If you connect to the Unit’s Component Video (Y/Pb/Pr) Input jacks,
connect Analog Audio Cables to the Analog Audio (L/R) Input jacks.
Blu-ray Disc / DVD
Recorder
Blu-ray Disc / DVD
Recorder
Blu-ray Disc / DVD
Recorder
or
OUT
Component
(Y/Pb/Pr) Video
cables
Component
(Y/Pb/Pr) Video
cables
Component
(Y/Pb/Pr) Video
cables
IN
Note(s)
●
The Unit accepts 480i, 480p, 720p, 1080i and 1080p of Video signals for this Connection.
Composite Analog Video Connection
Composite Analog Video Connection offers Standard Picture quality for
Video Devices connected to the Unit.
If you connect to the Unit’s Component/Composite Video (Y/VIDEO)
Input jack (green), connect Audio Cables to the Audio (L/R) Input jacks.
When the Audio is monaural, then only connect to the Audio L Input
jack.
DVD Player
OUT
Video + Audio(L/R)
cables
Video + Audio(L/R)
cables
Video + Audio(L/R)
cables
IN
Note(s)
●
With this Unit, yellow cable must be connected to Y (green) jack on the Component Video
Input jacks.
●
Whenever you connect to the Composite Video Input jack (Y/VIDEO), you must disconnect
the Component Video Input jacks (Pb and Pr). If you leave those jacks connected, it may
cause an unstable picture.
Connecting the TV to the Internet using an Ethernet
cable
Internet
Network provisioning
equipment
Network provisioning
equipment
Network provisioning
equipment
Ethernet cable
Note(s)
●
Please purchase Shielded Ethernet Cables at your local store and use them when you
Connect to Network equipment.
●
After connecting an Ethernet Cable, set up necessary Network Settings. Connect to
network L p. 38
●
Do not insert any cable other than an Ethernet Cable to the Ethernet port to avoid damaging
the unit.
●
If your telecommunications equipment (modem, etc.) does not have Broadband Router
functions, connect a Broadband Router.
●
If your telecommunications equipment (modem, etc.) has Broadband Router functions but
there is no vacant port, then add a hub.
●
For a Rroadband Router, use a Router which supports 10BASE-T / 100BASE-TX.
●
Do not connect your PC directly to the Ethernet port of this unit.
14 .English
Continued on next page.
