Sanyo LCD-26E30A Owner's Manual

10

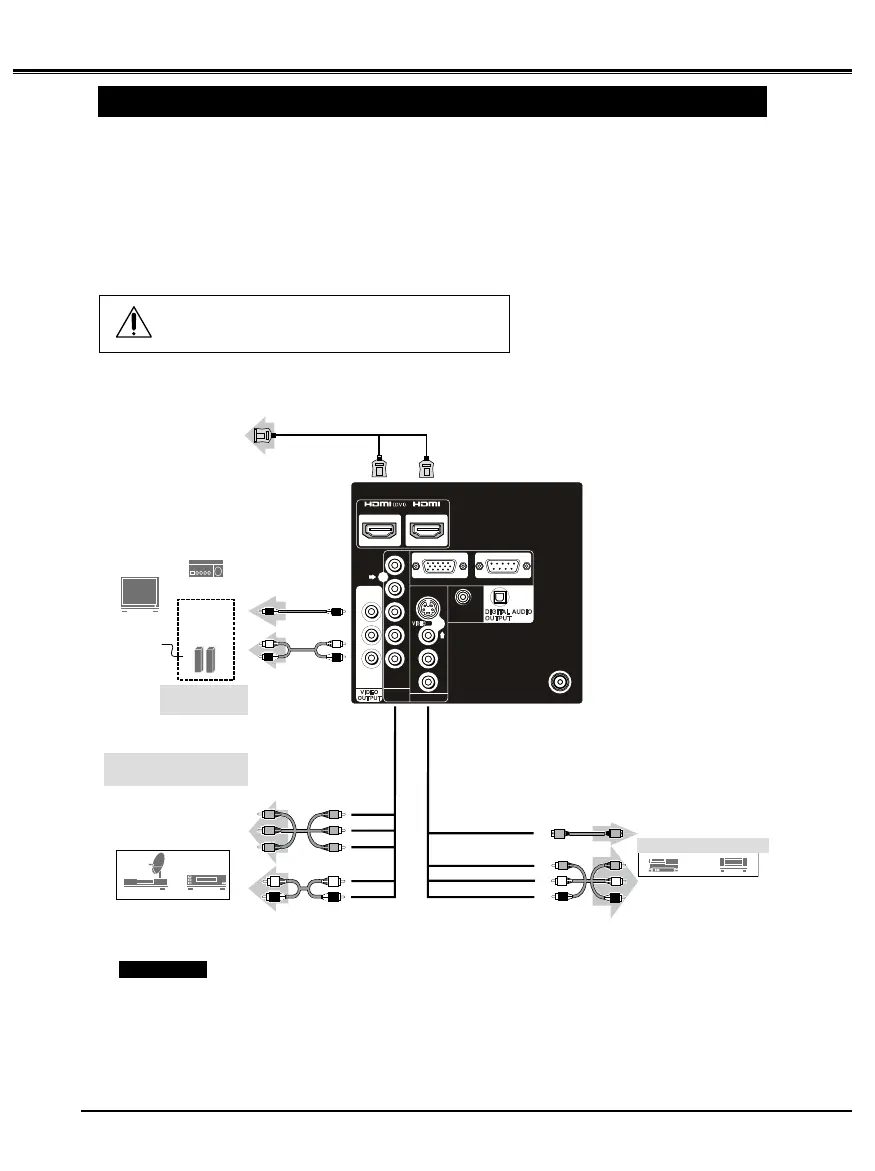

CONNECTING VIDEO EQUIPMENT
Cables used for connection (These cables are not supplied with this LCD TV.)
Video Cable (RCA X 1), S-Video Cable, Audio Cable (RCA X2) : Video 1 or Video 2
Video Cable (RCA X3), Audio Cable (RCA X 2) : DVD (Component Video)
Video Cable (RCA X 1), Audio Cable (RCA X2) : Monitor Outputs
HDMI Cable: HDMI Input
VIDEO3
INPUT
VIDEO1 INPUT
PC INPUT RS232 INPUT
ANT
S-VIDEO
L
R
L
R
Pr
Pb
Y
INPUT1
DVI
INPUT2
VID E O
VI DE O
L
R
PC AUDIO
INPUT
D
IG ITA L AU DI O
OU TP U T
VI DE O
OU TP UT
•
•
•
•
CONNECTING LCD TV
NOTE : When connecting the cable, AC Power Cords
of both LCD TV and external equipment should be
disconnected from AC outlet.
HDMI cable
HDMI Output
HDMI Input
Video cable
(RCA x1)
Audio cable
(RCA x2)
External Audio
Equipment
Audio Amplifier
Audio
Speaker
(stereo)
External
Monitor
Composite
Video and
Audio Output
AV OUT
Note:
Video (RCA) output is for TV, AV or S-VIDEO only.
DVD
(RCA x3)
Audio cable
(RCA x2)
Component Video Source
(example)
DVD video equipment
(such as DVD player
or high-definition TV
source)
R L Pr, Pb, Y
Video and Audio
cable (RCA x3)
S-Video cable
R, L, V S-Video
Video Source (example)
S-Video output
Video Cassette
Recorder
Video Disc
Player
For exsample : 26”
