CONNECTING LCD TV

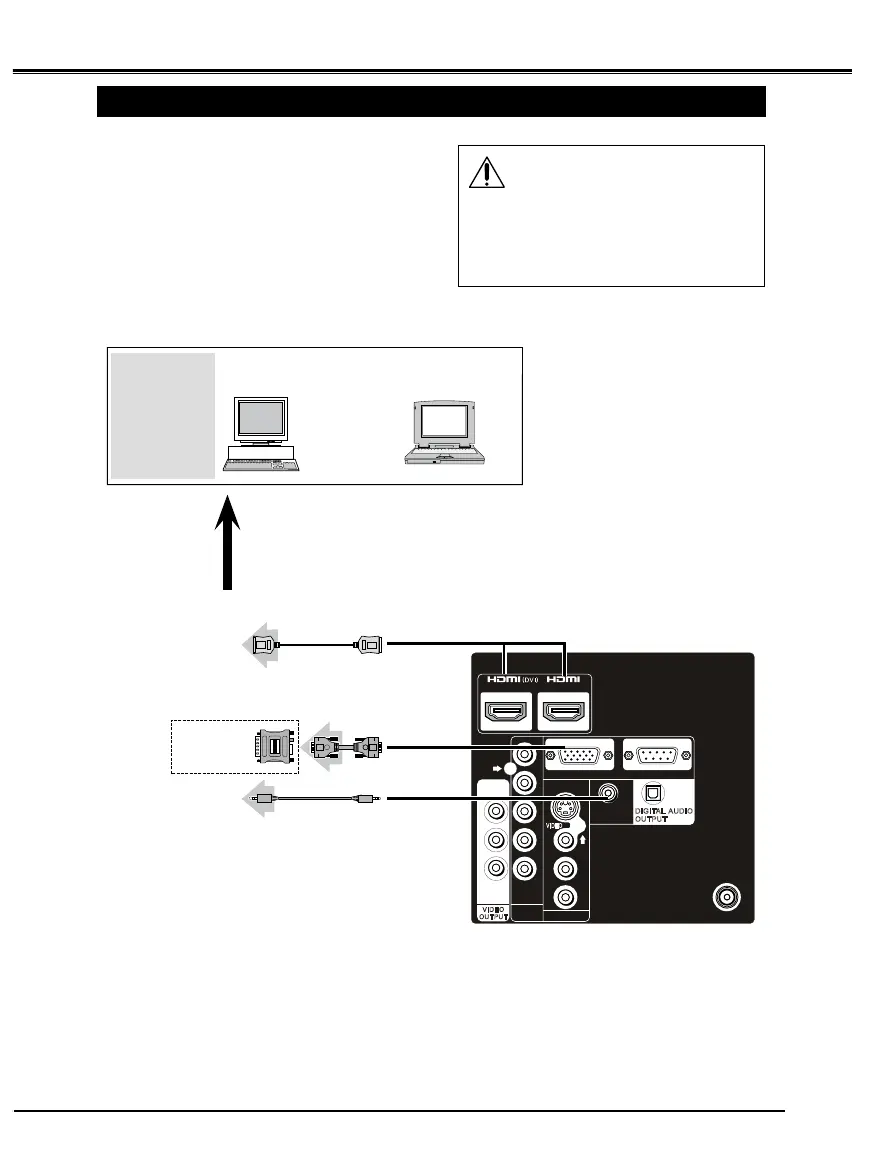

CONNECTING A COMPUTER
Cable used for connection (This cable is not supplied
with this LCD TV.)
PC/VGA Cable (D-SUB 15pin)
HDMI Cable
MAC Adapter (in the case of connecting Macintosh
computer)
Audio Cable [Mini Plug (L/R)]
•
•
•
•
NOTE:
When connecting the cable, AC Power
Cords of both LCD TV and external
equipment should be disconnected from
AC outlet. Turn LCD TV and peripheral
equipment on before your computer is
switched on.
NOTE : You can connect the DVI source to HDMI input terminal by using the DVI to HDM I converter, and you just
can watch image, but without sound.
VIDEO3
INPUT
VIDEO1 INPUT
PC INPUT RS232 INPUT
ANT
S-VIDEO
L
R
L
R
Pr
Pb
Y
INPUT1
DVI
INPUT2
VID EO
VI DEO
L
R
PC AUDIO
INPUT
D
IG I TAL AUD I O
OU T PUT
VI DEO
OU TPU T
IBM-
compatible
computers
or Macintosh
computers
(VGA/SVGA/
XGA)
Desktop Type Laptop Type
Audio Output
(stereo)
Audio Input
(stereo)
HDMI Input
PC Input
MAC
Adapter
Monitor
Output
HDMI Output
For exsample : 26”
To Next Page
