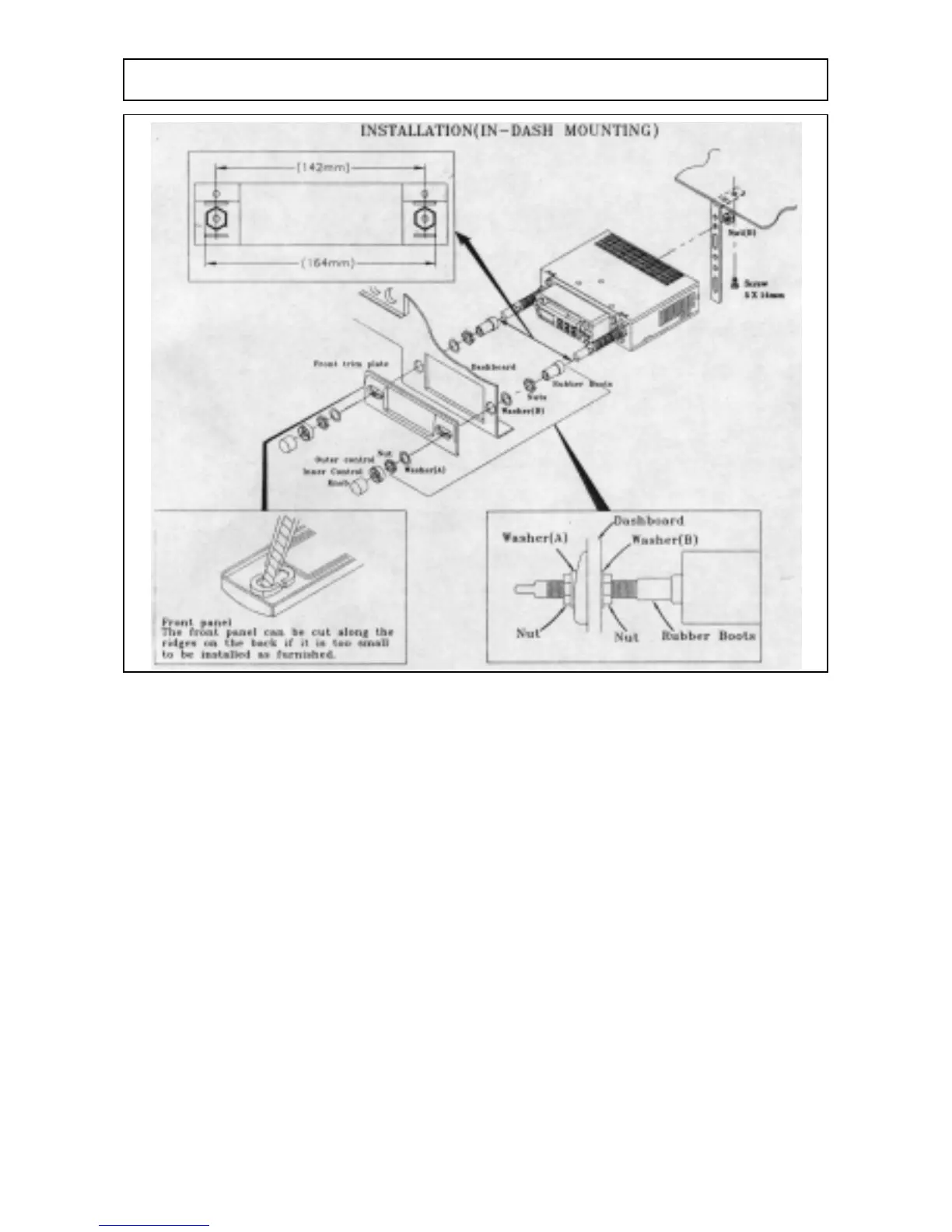

INSTALLATION
1. First, determine the correct shaft spacing required for your vehicle, then adjust the
spacing as necessary.
2. Install one shaft boot on each control shaft.
3. Install one shaft nut and one shaft washer on each control shaft. Determine the
correct positions for the shaft nuts by placing the unit in the dashboard.
4. From behind the dashboard, insert the unit through the dash opening. If the unit
protrudes too far, or not far enough, adjust the position of the shaft nuts.
(Once the correct position is found, it may be necessary to cut off excess material
to shorten the shaft boots.)
5. Attach the rear support bracket to the threaded stud on the rear of the stereo using
the supplied nut.
6.
Attach the free end of the rear support bracket to the vehicle with the screw provided.
7. Secure the front of the unit with the supplied shaft washers and nuts.
NOTE: The faceplate is provided for use on automobiles which have enough space
surrounding the radio to accept the plate. Attach the faceplate to the stereo by
mounting the nuts and washers in front of the faceplate. (If the shafts have been
moved to the extreme outside position, it may be necessary to widen the openings
in the faceplate by using a round file.)
8. Attach the knobs to the control shafts.
