Installation

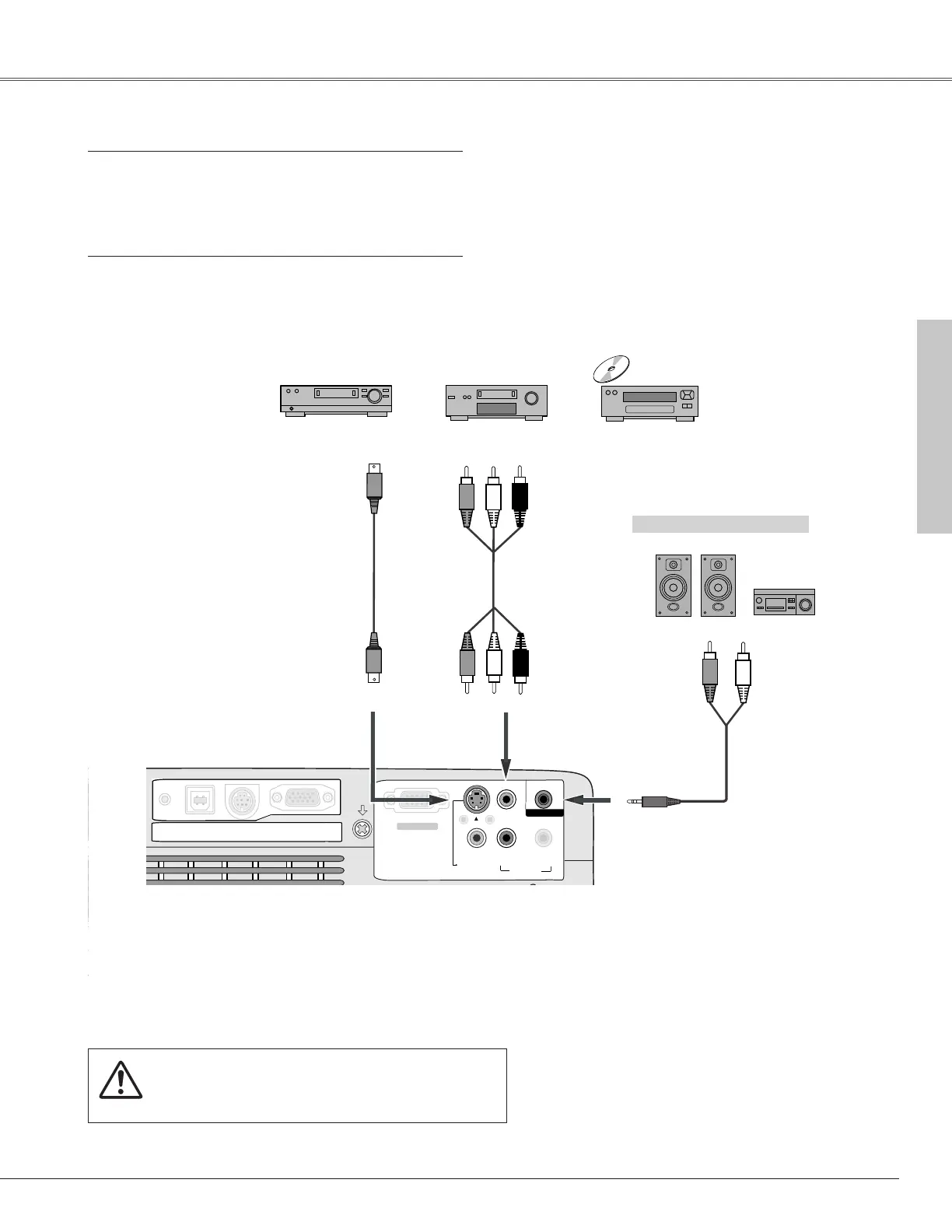

Connecting to Video Equipment
Cables used for connection
• Video and Audio Cable (RCA x 3)
• S-VIDEO Cable
• Audio Cable (Mini Plug: stereo)
(Not all the cables are suppled with this projector.)
✔
Note:
• When connecting AUDIO OUT to external audio equipment, the
projector's built-in speaker is disconnected.
• See p. 65 for ordering optional parts.
External Audio Equipment
Audio cable
(stereo)
VIDEO
S-VIDEO
S-Video cable Video and audio cable
Composite Video and Audio OutputS-Video Output
AUDIO IN
Audio Input
AUDIO OUT
(stereo)
(R) (L)
(R) (L) (Video)
(Video)
Unplug the power cords of both the projector and
external equipment from the AC outlet before connecting
the cables.
Installation
