Part Names and Functions

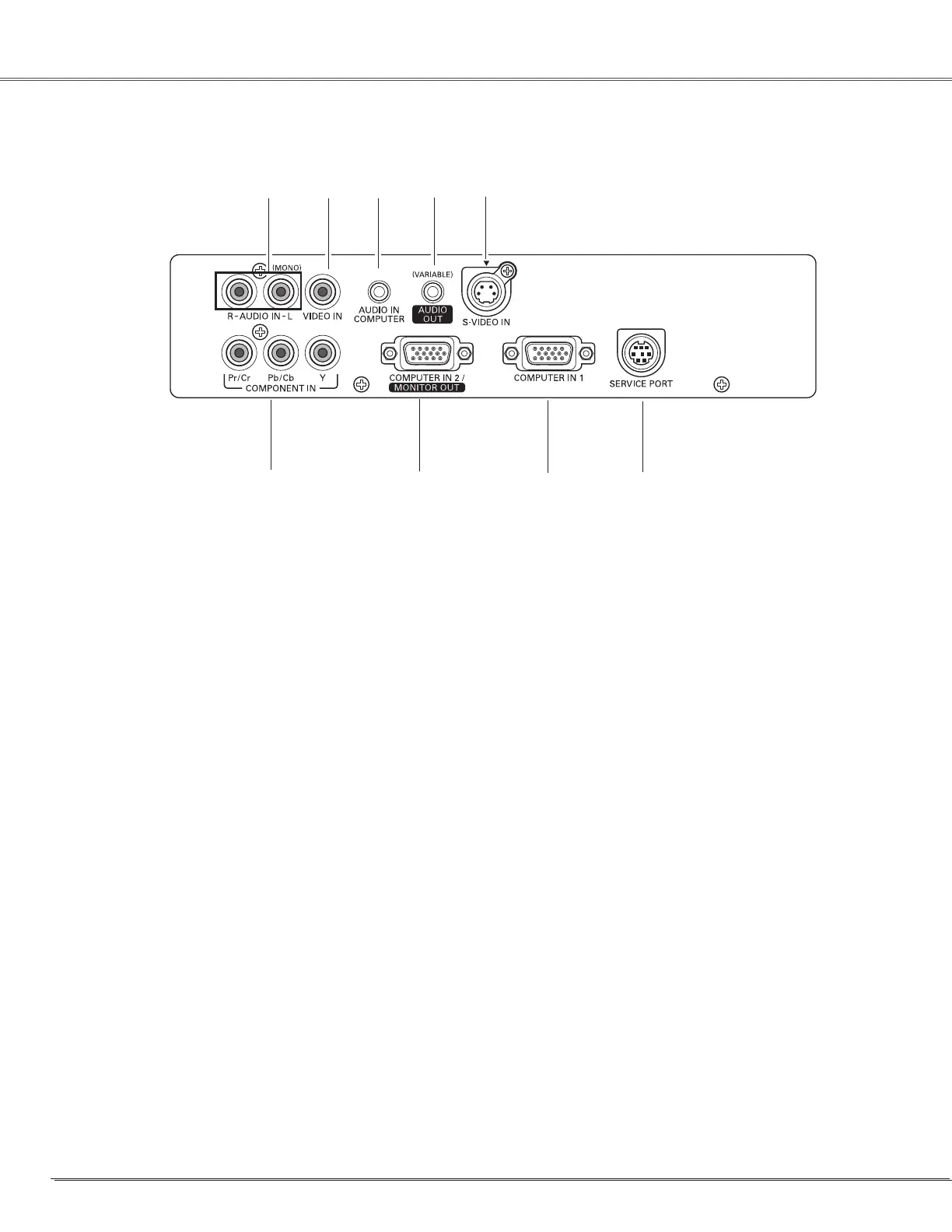

Rear Terminal
q w
e
r
t
y
iu
t S-VIDEO IN
Connect the S-VIDEO output from video
equipment to this jack (p.17).
q AUDIO IN
Connect the audio output from video equipment
connected to w, t or y to this jack. [When the
audio output is monaural, connect it to L (MONO)
jack (p.17-18).
e AUDIO IN COMPUTER
Connect the audio output (stereo) from a computer
connected to u or i to this jack (pp.16, 18).
w VIDEO IN
Connect the composite video output from video
equipment to VIDEO jack (p.17).
u COMPUTER IN 2/MONITOR OUT
This terminal is switchable and can be used for
input from a computer or output to the other
monitor.
Set the terminal up as either Computer input or
Monitor output properly. [Used for Monitor out,
this terminal outputs only incoming signal from
COMPUTER IN 1 terminal (pp. 16, 49).
r AUDIO OUT(VARIABLE)
Connect an external audio amplifier to this jack
(pp.16 – 18).
This terminal outputs sound from AUDIO IN
terminal (q or e).
o SERVICE PORT
This jack is used to service the projector.
When controlling the projector with RS-232C,
connect the control equipment to this connector
with the serial control cable.
i COMPUTER IN 1
Connect output signal from a computer, or RGB
scart 21-pin video output to this terminal (pp.16,
18).
When the cable is of the longer variety, it is
advisable to use this terminal and not COMPUTER
IN 2/MONITOR OUT.
o
y COMPONENT IN
Connect the component video output signal to
these jacks (p.18).
y
