17
✔Note:
• When the AUDIO OUT is plugged-in, the projector’s
built-in speaker is not available.
• The S-VIDEO jack connection overrides the VIDEO jack
connection when AUTO is selected in the Input Menu
(p.37).
External Audio Equipment
Audio cable
(stereo)
VIDEO IN
S-VIDEO IN
S-Video cable
Video and audio cable
Composite Video and Audio Output
S-Video Output
AUDIO IN
Audio Input
AUDIO OUT
(stereo)
(R)
(L)
(R)
(L)
(Video)
(Video)
Installation

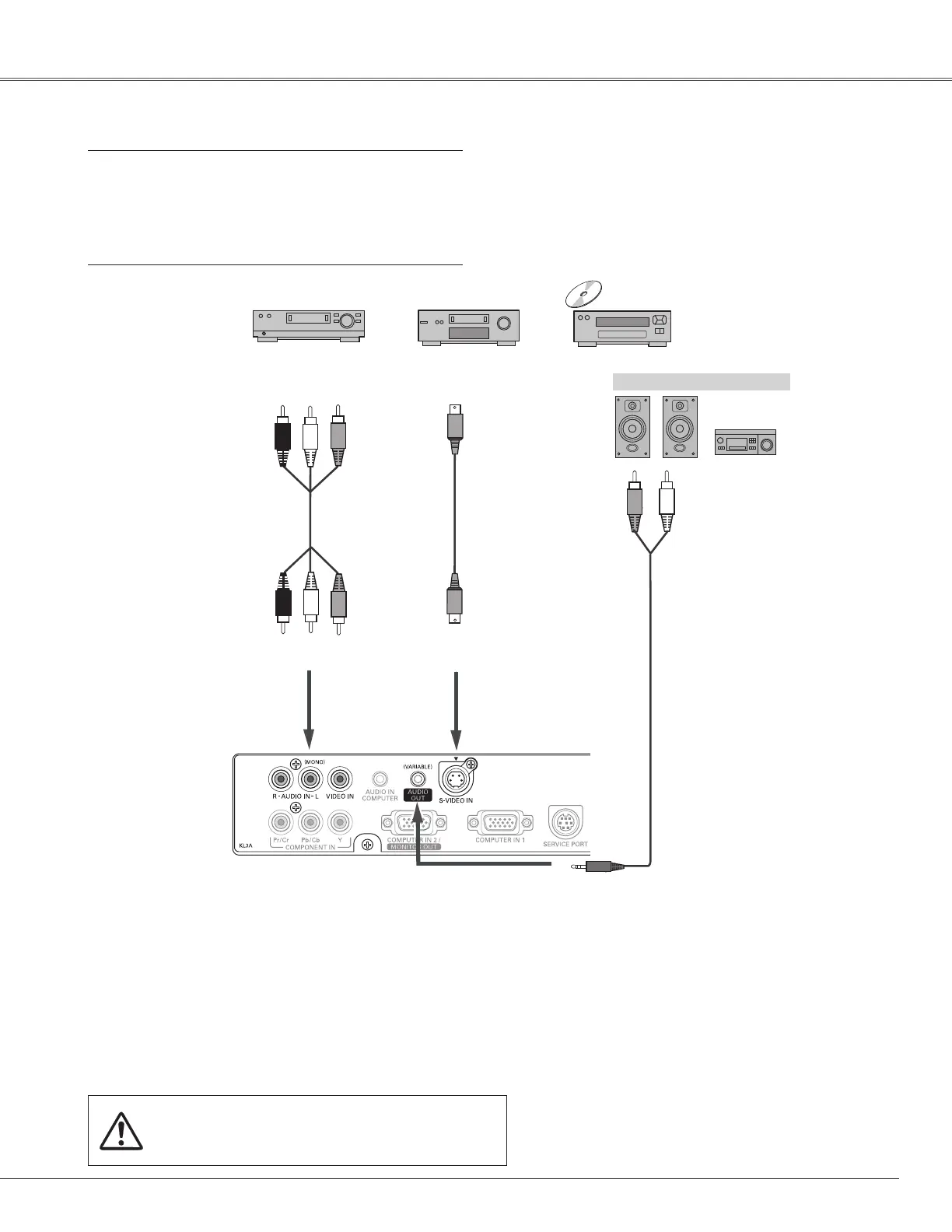

Connecting to Video Equipment (Video, S-Video)
Cables used for connection
• Video and Audio Cable (RCA x 3)
• S-VIDEO Cable
• Audio Cable (Mini Plug: stereo)
(Cables are not supplied with the projector.)
Unplug the power cords of both the projector
and external equipment from the AC outlet
before connecting the cables.
To Next Page
