Installation
Connecting to Video Equipment (Component and RGB Scart)
Cables used for connection
• Audio Cables (Mini Plug: stereo, RCA x 2)
• Scart-VGA Cable
• Component Cable
(Cables are not supplied with the projector.)
✔Note:
• When the AUDIO OUT is plugged-in, the projector’s
built-in speaker is not available.
•See page 69 for ordering optional cables.
Unplug the power cords of both the projector
and external equipment from the AC outlet
before connecting the cables.

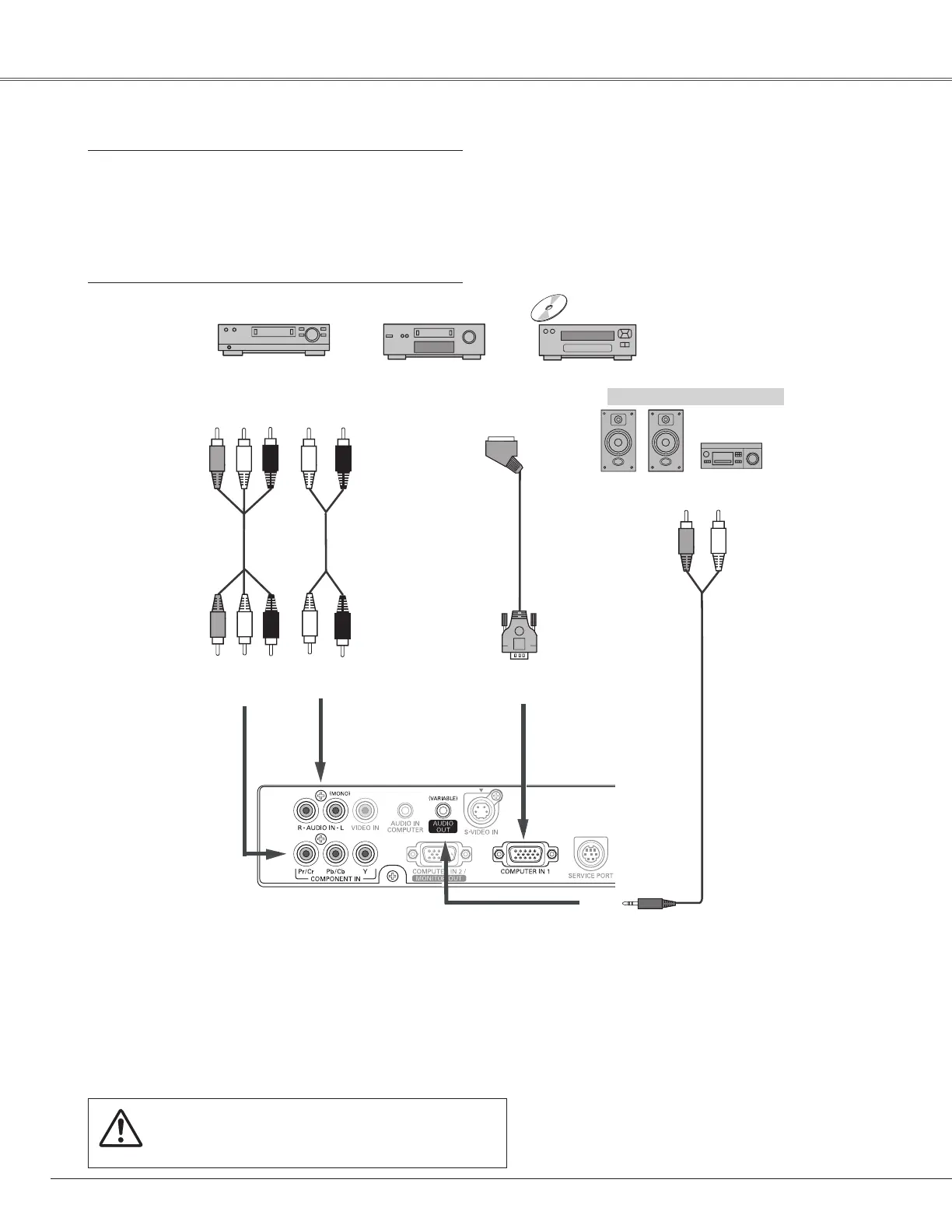

External Audio Equipment
COMPUTER IN 1
COMPONENT IN
Audio cable
(stereo)
Audio cable
(stereo)
Audio Input
Component Video Output
(Y, Pb/Cb, Pr/Cr)
RGB Scart 21-
pin Output
Audio Output
Scart-VGA
cable
AUDIO OUT
(stereo)
Component
cable
AUDIO IN
