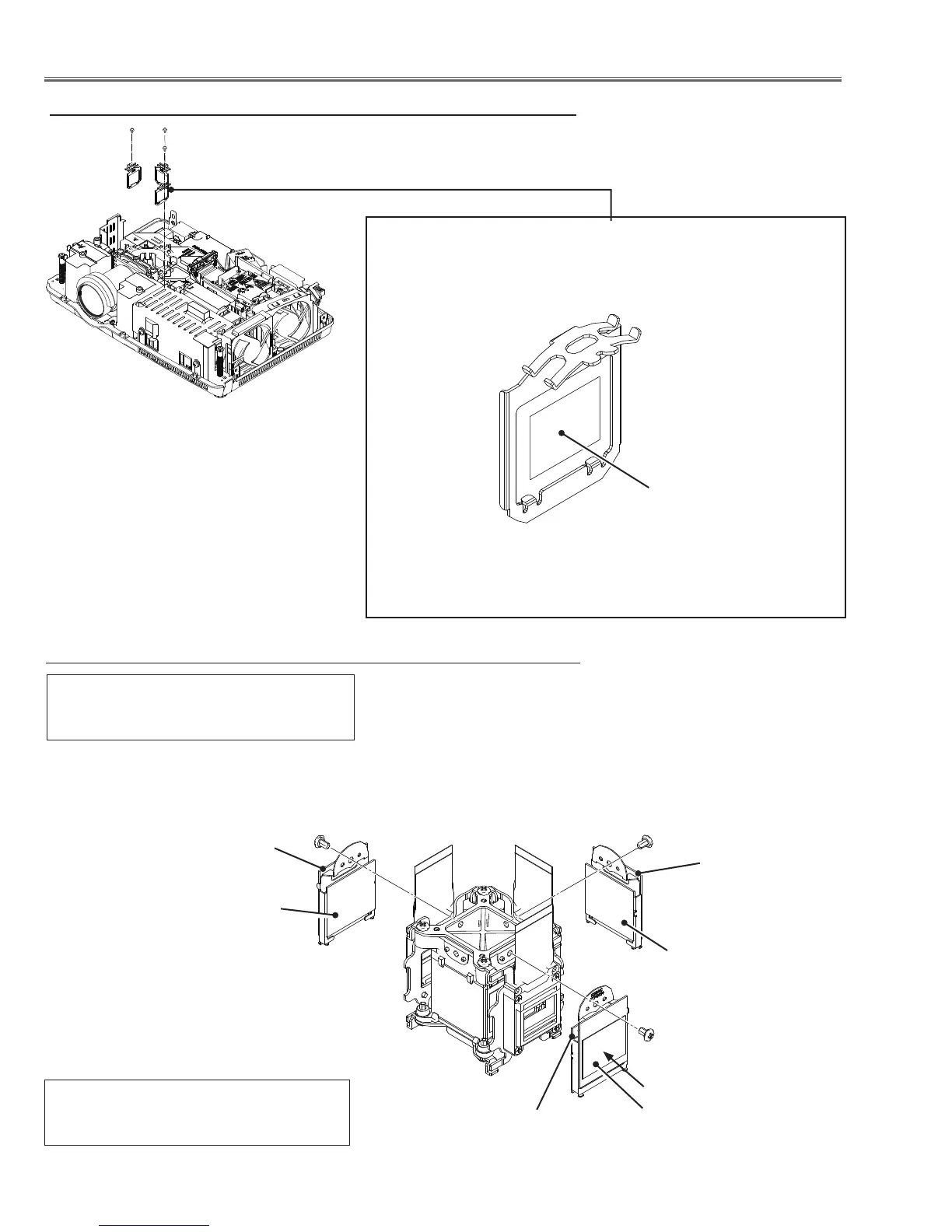

Optical Parts Disassembly
v Polarized glass-in disassembly
Polarized glass
Polarized glass-in Ass'y
(M2.5x6)x1
Fig.4
b Polarized glass, Pre-polarized glass removal
Pre-Polarized Glass(G)
* Mount the polarized glasses as the film
attached side faces the LCD panel side.
(M2x4)
Film
(Blue)
(Red)
(Green)
Fig.5
Polarized Glass(G)
Polarized Glass(R)
Polarized Glass(B)
(M2x4)
(M2x4)
Pre-Polarized Glass(B)
Pre-Polarized Glass(R)
* Note:
There is no Pre-Polarized Glass(R) for
KA5-XU30000.
