3-2
Operation
Model 280B
TRANSPORT
CONTROLS
1 POWER
OFF/ON
2
RECORD
(RED)
3
TENSION
4
ATL
DEFEAT
LEVER
5
FAST
REVERSE
(BLUE)
6
FAST
FORWARD
(BLUE)
7
STOP
(WHITE)
8
START
(GREEN)
9
CAPSTAN
LOW/HIGH
10
EDIT
(YELLOW)
RECORD/PLAYBACK
CONTROLPAI\IEL
1 RECORD
INDICATOR
LAMP
2
FUNCTION
SELECTOR SWITCH
RECORD
READY
(RED)
SAFE (GREEN)
SYNC
(ORANGE)
3
RECORD/PLAYBACK
MONITOR
MONITOR
SWI
TCH
4
PLAYBACK
LE
VE
L
5 RECO RD
LEVEL
6
VU
METER

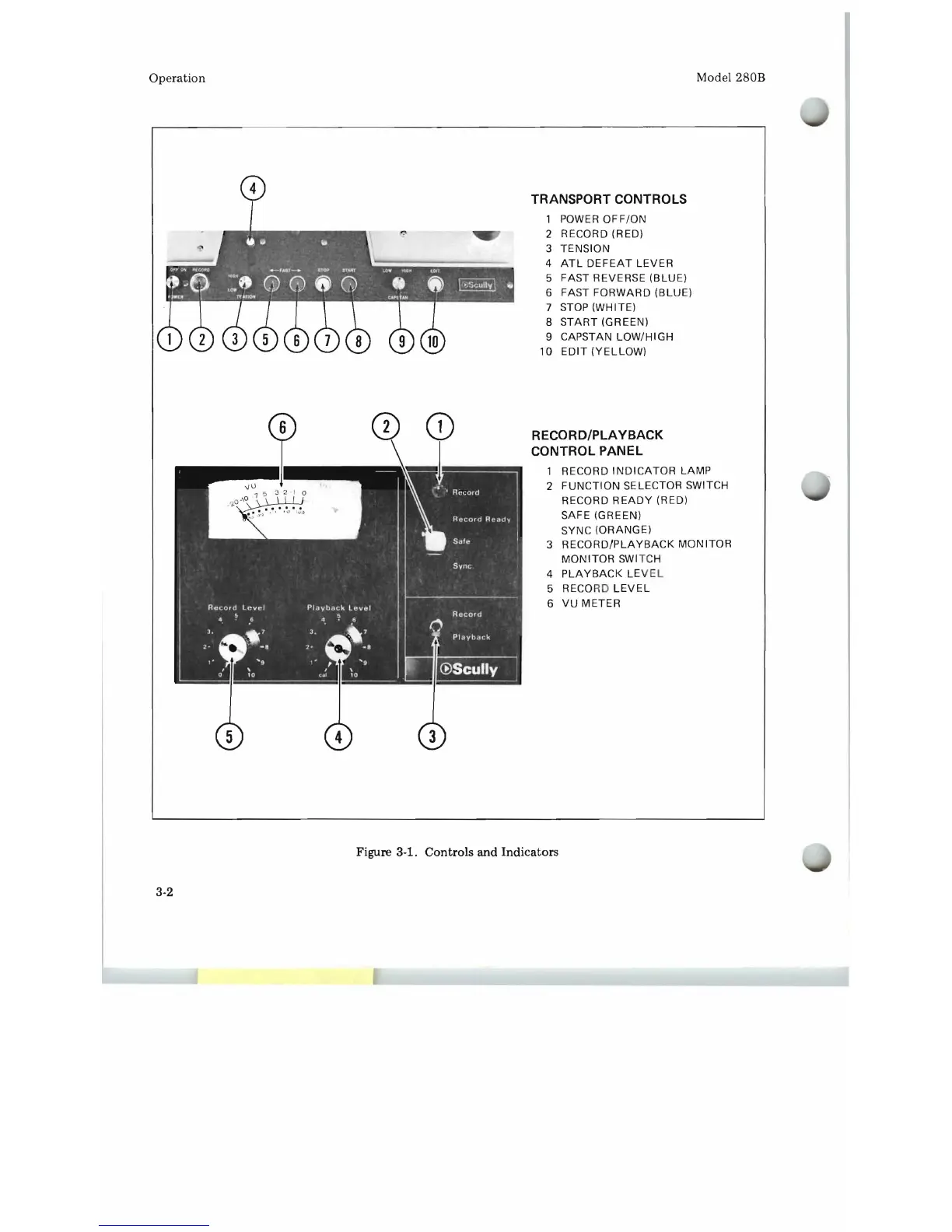

Figure 3-1.
Controls
and
Indicators
