Model 28GB
Maintenance
RECORD/PLAYBACK
CONTROL
PANEL
MOTHERBOARD
PWA
REGULATOR,
BIAS OSCILLATOR &
AMPLIFIER
PWA

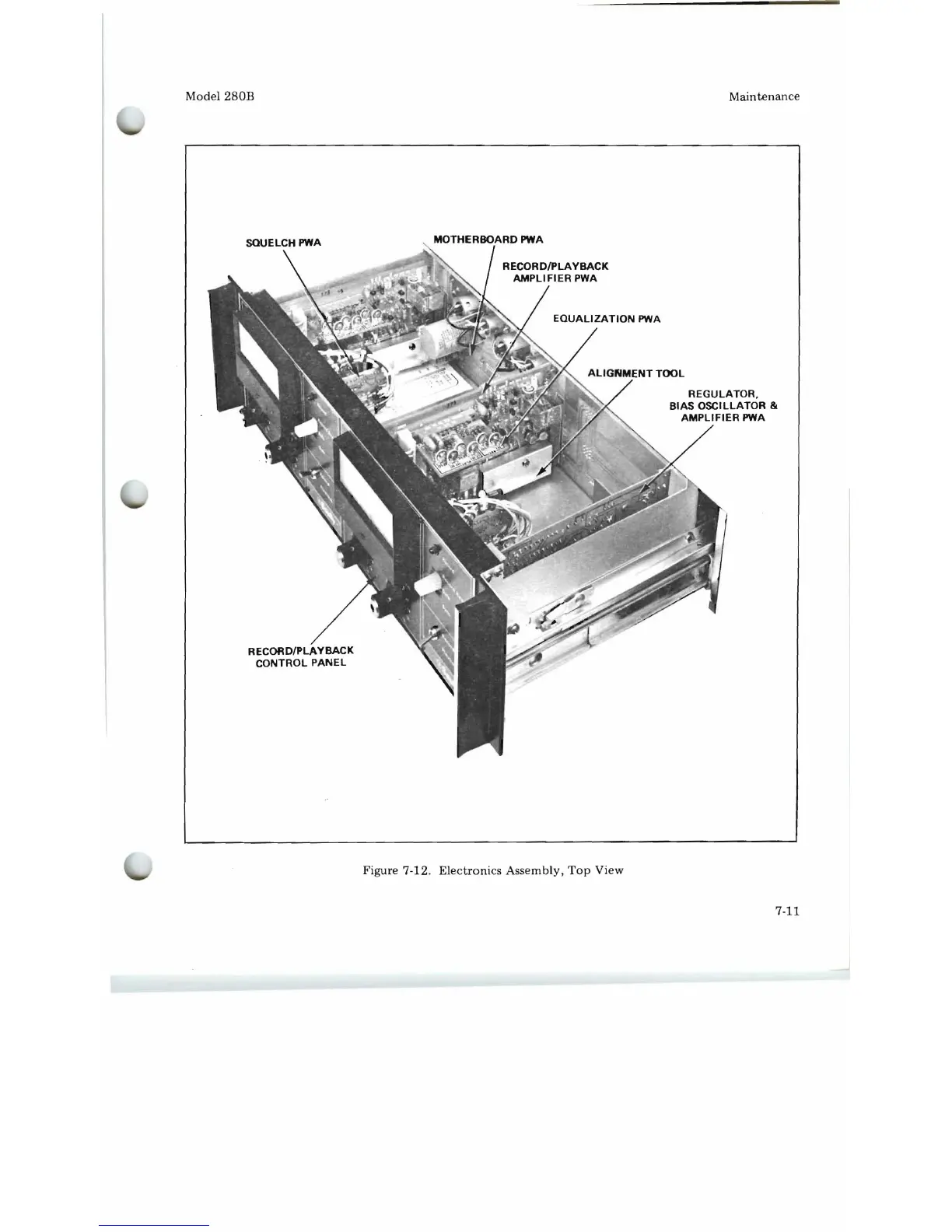

Figure 7-12.
Electronics
Assembly,
Top
View
7-11
