Scully 280B Series User Manual

8-70
Table 8-1. Schematic Diagrams and Parts List
FIG .
&
REF.
QUANTITY PER ASS EMBLY
DESCRIPTION
PART
NO.
I
MFR.
PART
1"\0 .
!
CODE
!DENT .
NO.
8-31 Ref Reel
assy.
turntable
(see
Fig 8-16
for NHA )
502060600
1
1
Reel table assy 502060601 - 01
1
!-~olded
assy.
turntable 400038
3
Reel pin.
7 in
502060603
2
Disc .
turntable 400037
4 2
Set screw. 10-32 -x
5/16
110259
5
A/R
Foil
sensing tape,
66
7/32
-x 162347
8 4-9 800 -
4486 - 5
66346
2
~OLE:. PATTE:R.tV TO
ALLoW FoR PlfJ CLv..RA~CE
5
REF.
502060600
, //
DETAIL 'A

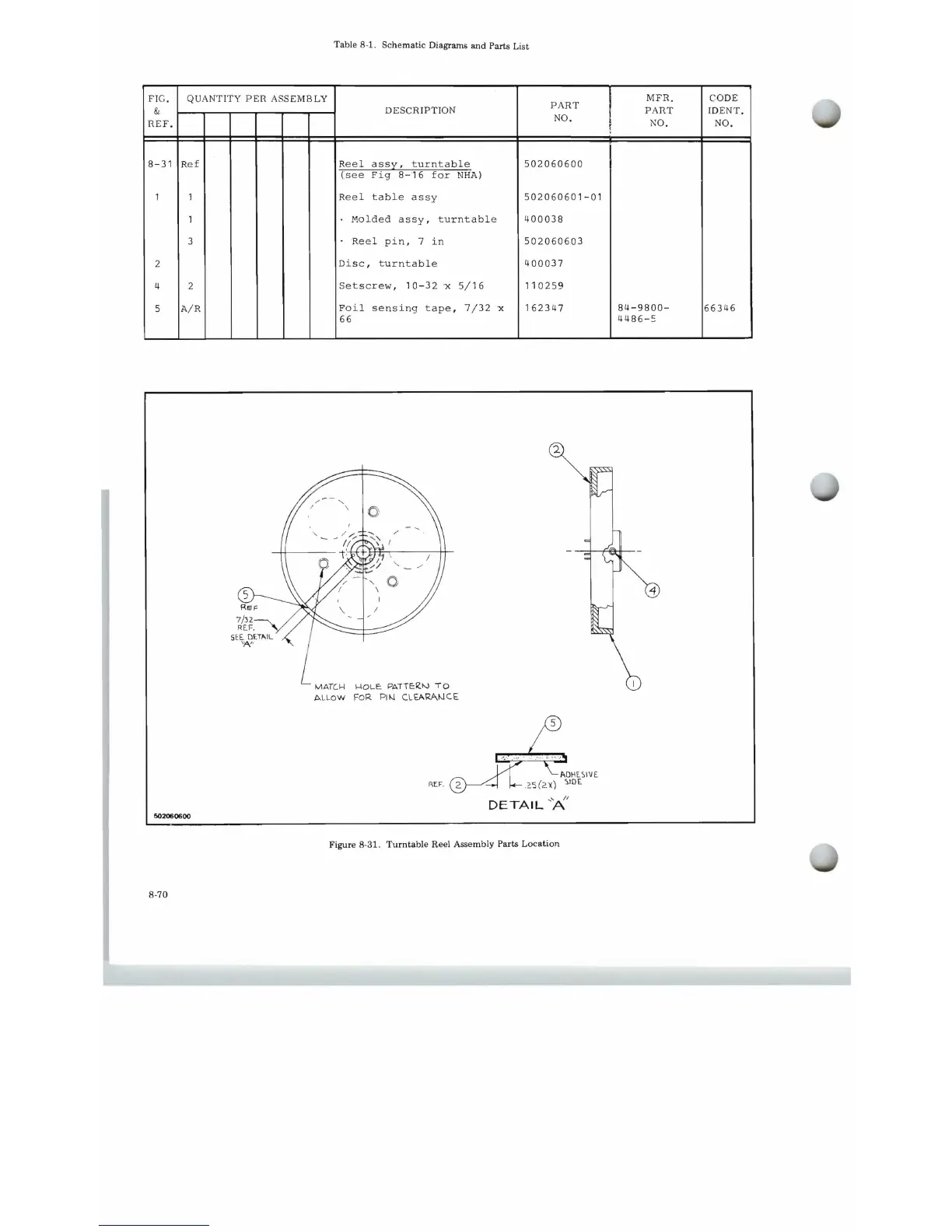

Figure 8-31. Turntable Reel Assembly Parts Location
