Scully 280B Series User Manual

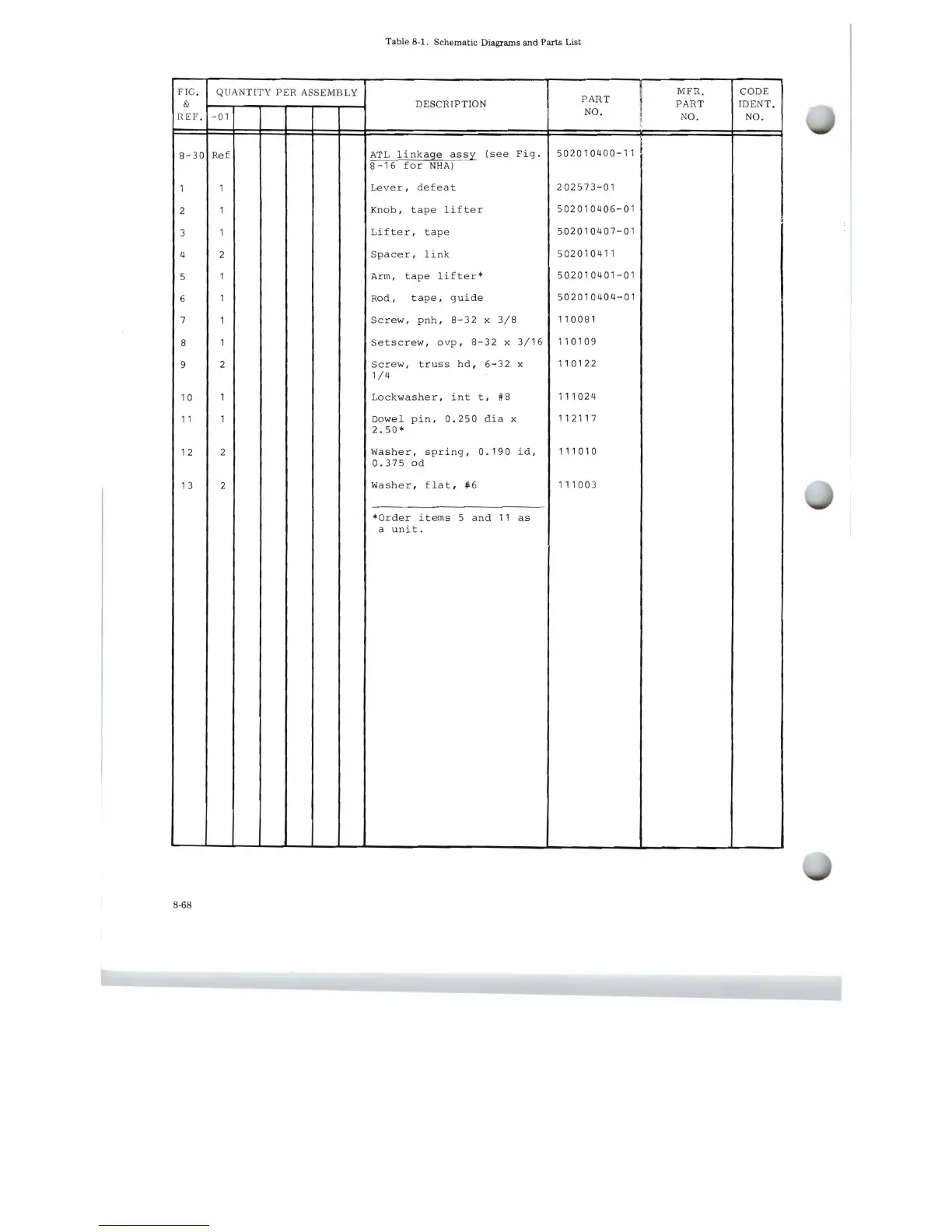

Ta bl e 8· 1. Schem atic Di agrams and P arts L is t
FIC .
&
REF.
QUANTITY PER ASSEMBLY
-01
DESCRIPTION
MFR .
PART
1\0.
CODE
IDENT.
NO .
8-30
1
2
3
4
5
6
7
8
9
10
11
1 2
1 3
Ref
1
1
1
2
1
1
1
1
2
1
1
2
2
ATL li nkage assy (see Fi g .
8
-1 6 for NH A)
Lever , defeat
Knob , tape lifter
Lifter , tape
Spacer , l ink
Arm , tape lifter*
Rod , tape , guide
Screw , pnh , 8- 32 x 3/8
Setscrew , ovp , 8- 32 x 3/16
Screw, truss hd , 6- 32 x
1/4
Lockwasher , int t , #8
Dow e l pin , 0 . 250 dia x
2 . 50 *
Washer , spr i ng , 0 .1 90 id ,
0.375 od
Washe r, flat , #6
*Order items
a unit .
5
and 11 as
8· 68
