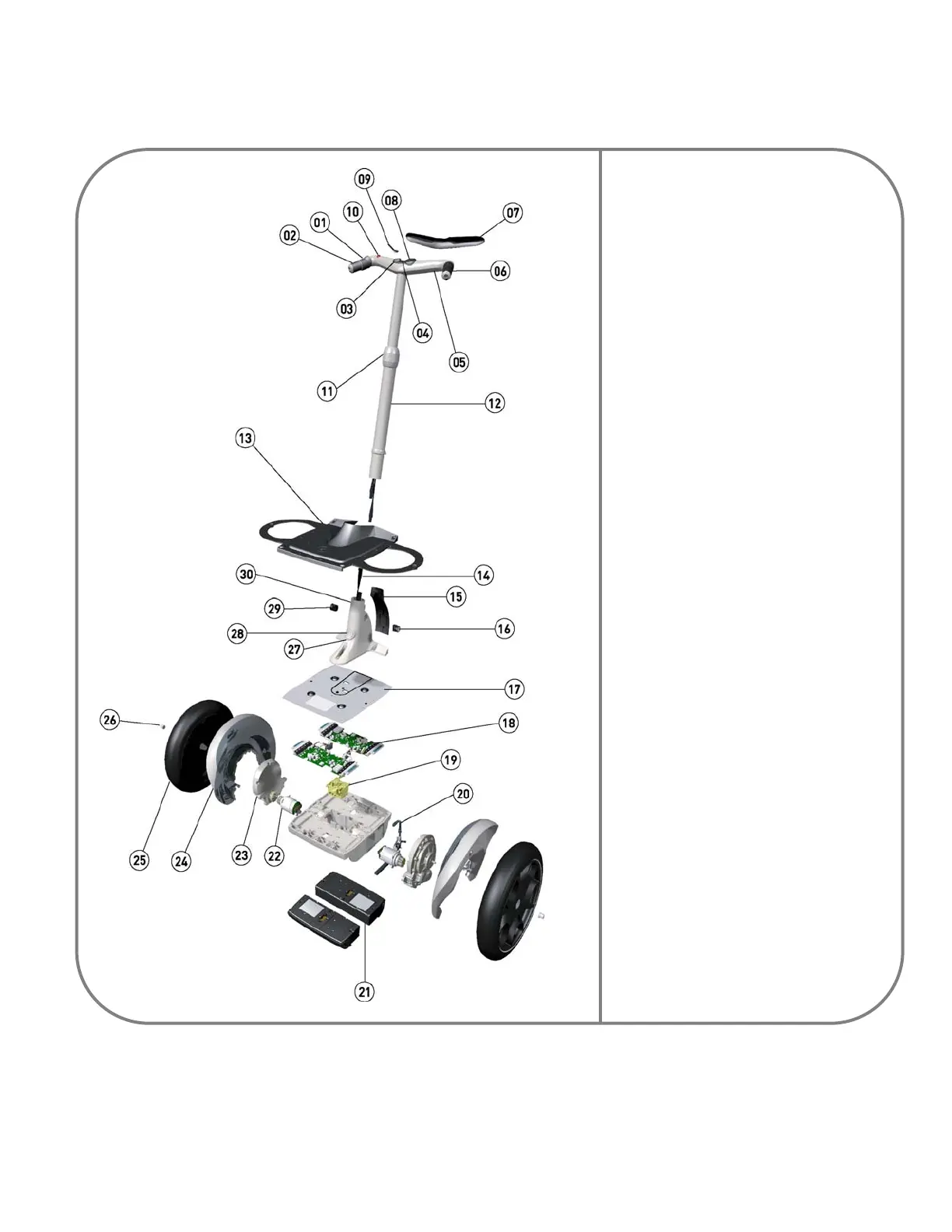

Components of the Segway HT
01. Steering Grip
02. Fixed Steering Grip
03. Key Port
04. Display Bezel
05. Handlebar
06. Fixed Grip
07. Handlebar Trim
08. Display
09. Key
10. Mode Button
11. Height Adjustment Collar
12. Control Shaft
13. Mat
14. Control Shaft Cord
15. Front Trim
16. Control Shaft Clamp Wedge (1 of 2)
17. Cover
18. Controller Boards
19. Balance Sensor Assembly
20. Parking Stand
21. Battery Packs
22. Motor
23. Gearbox
24. Fender
25. Tire/Wheel Assembly
26. Wheel Nut
27. Charging Indicators
28. Charge Port, Charge Port Cover
29. Control Shaft Clamp Wedge (2 of 2)
30. Control Shaft Base
