chapter 5: service
General Information
If you have a question on parts or replacements, please contact an Authorized Segway Dealer. For a list of Dealers, visit www.segway.com.
i180

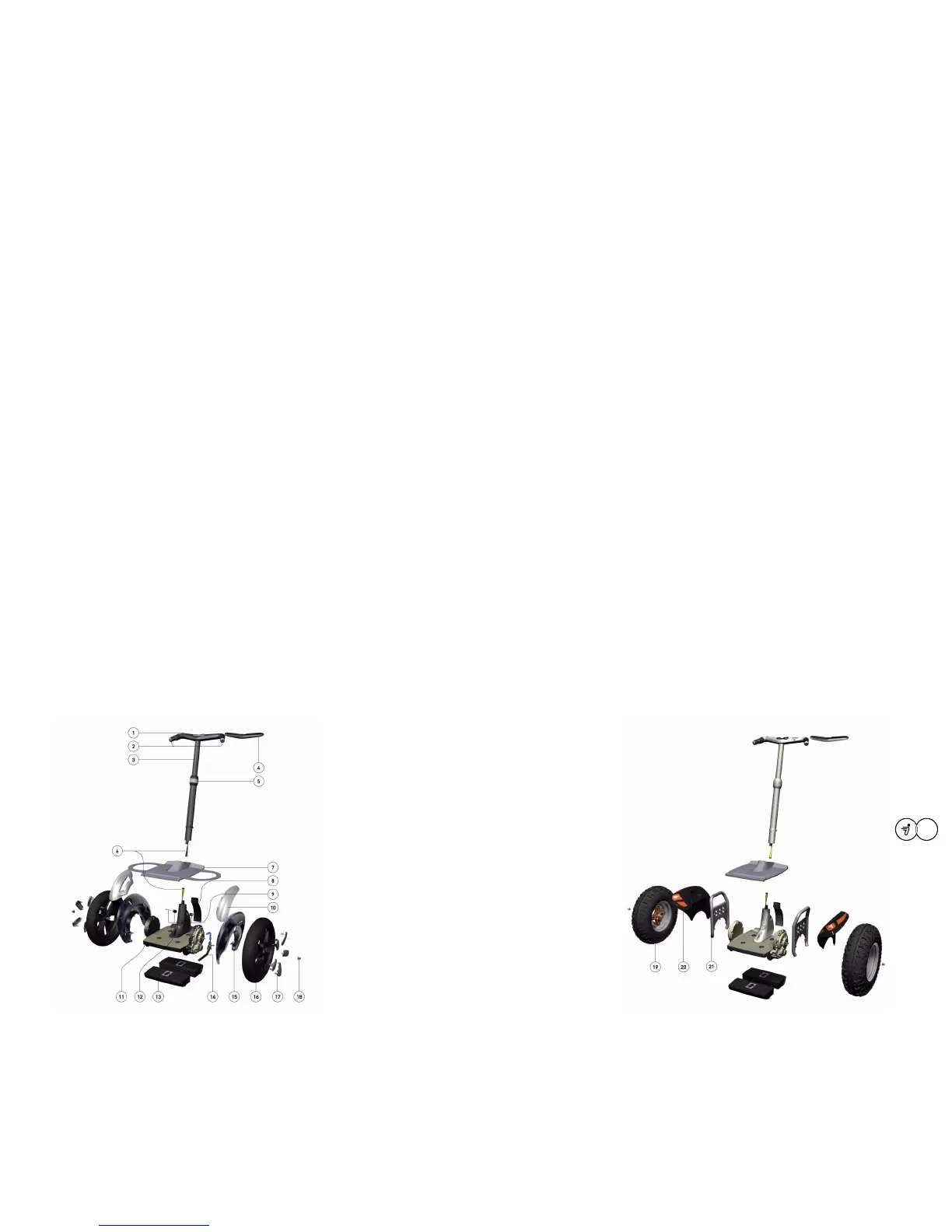

Parts Diagram
(shown on the i180)
1. Mode Button
2. Steering Grip (L) and Fixed Grip (R)
3. Control Shaft
4. Handlebar Trim
5. Height Adjustment Collar
6. Control Shaft Cords
7. Mat
8. Front Trim
9. Control Shaft Clamp Bolt and Clamps (2)
10. Splashguard (2)
11. Platform with Control Shaft Base and Gearboxes
12. Charge Port Cover
13. Rechargeable Battery Packs (2)
14. Parking Stand (i Series only)
15. Fender (2)
16. Standard Tire/Wheel Assembly (2)
17. Wheel Inserts (5 per Wheel)
18. Wheel Nut (2)
(shown on the Segway XT)
19. All-terrain Tire/Wheel Assembly
20. Segway XT Fender (2)
21. Fender Frame with Lifting Handle (2)
Segway XT
