Service Procedures
Follow these procedures when instructed to do so by the Troubleshooting section of this Reference Manual. The tools provided in the Wrench Set included with your Segway HT
are intended to assist with these procedures. However, additional tools, such as a torque wrench may be necessary to perform some of these procedures correctly.
Replacing Parts
If a part breaks or needs replacement, contact an
Authorized Segway Dealer. For a list of Dealers, visit
www.segway.com. Certain parts are owner-
replaceable. Use only Segway-provided replacement
parts and fasteners.
Torque Specifications
Adhere to torque specifications when tightening
fasteners. Over-tightening or under-tightening
fasteners can result in machine damage or malfunction
.
Remove Handlebar/Control Shaft
Assembly
Tool required: 5 mm hex wrench.
1. Make sure the Segway HT is powered off and not
plugged in. It is unsafe to perform this procedure
while the Segway HT is powered on or charging.
2. Loosen the Height Adjustment Collar and collapse
the upper portion of the Control Shaft fully into the
lower portion of the Control Shaft.
3. Gently tighten the Height Adjustment Collar.
4. Using the 5 mm hex wrench, loosen (but do not
remove) the Control Shaft Clamp Bolt.
5. Lift the Handlebar/Control Shaft Assembly up and
out of the Control Shaft Base far enough to expose
the two Control Shaft Cord connections.
6. Separate the Control Shaft Cords at the
connections by depressing the tabs and gently
pulling the Control Shaft Cords apart.
WARNING!
Always shut down your Segway HT and
unplug the Power Cord before performing
any maintenance or installing any part or
accessory.

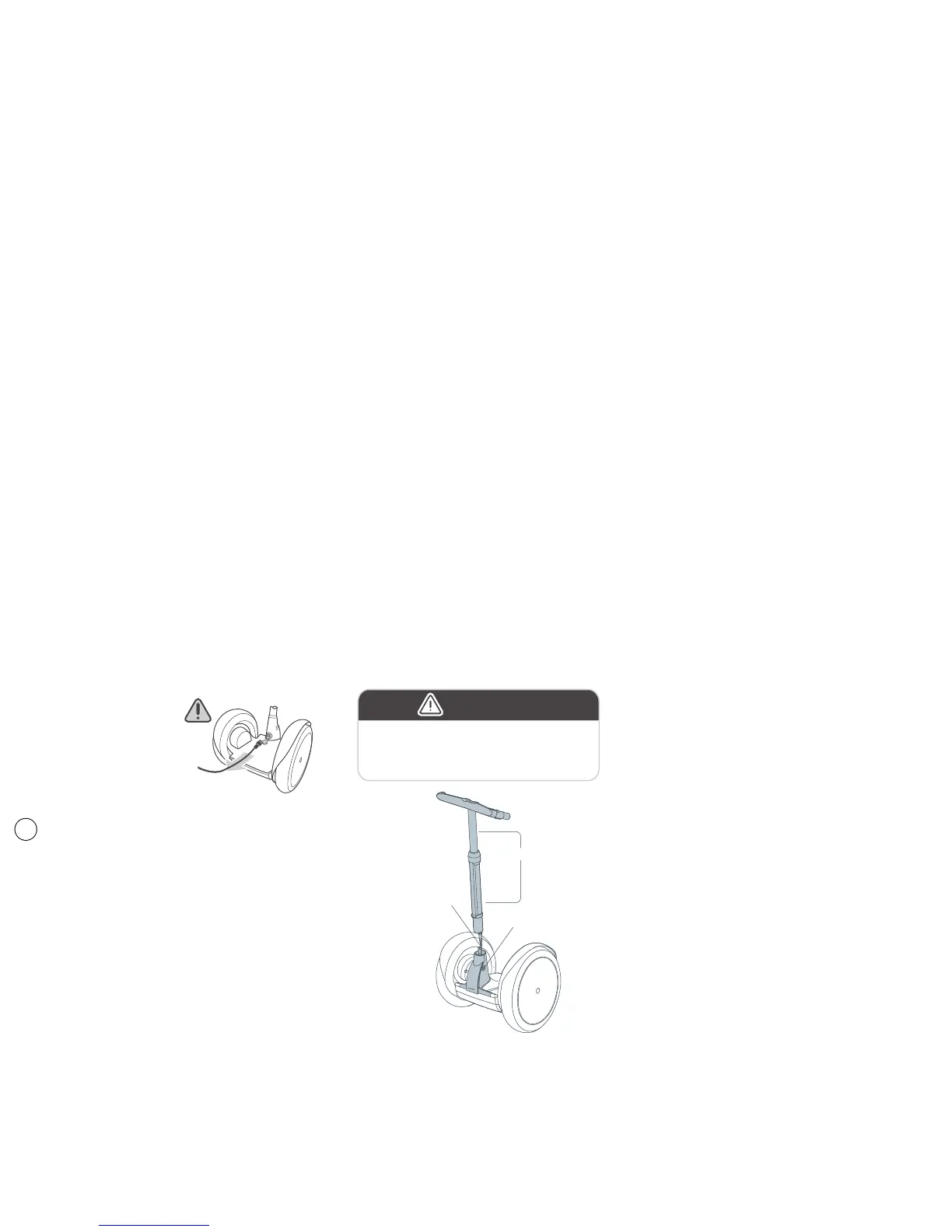

Handlebar/CS Assembly
Control Shaft Cords
Control Shaft Clamp
