Ref. No. Part No. Description Code Ref. No. Part No. Description Code
25
20MR10
1 CCABA0006WEH2 X Front Cabinet Ass’y AY
1-1 Not Available – Front Cabinet —
1-2 GCOVA0003GJSA X Cover for R/C AG
1-3 HBDGB1001GJSB X Badge, "SHARP" AF
1-4 JBTN-0003GJSD X Button(Power, Vol-up/down, AH
CH-up/down)
2 GCABB0109GJKA X Rear Cabinet AW

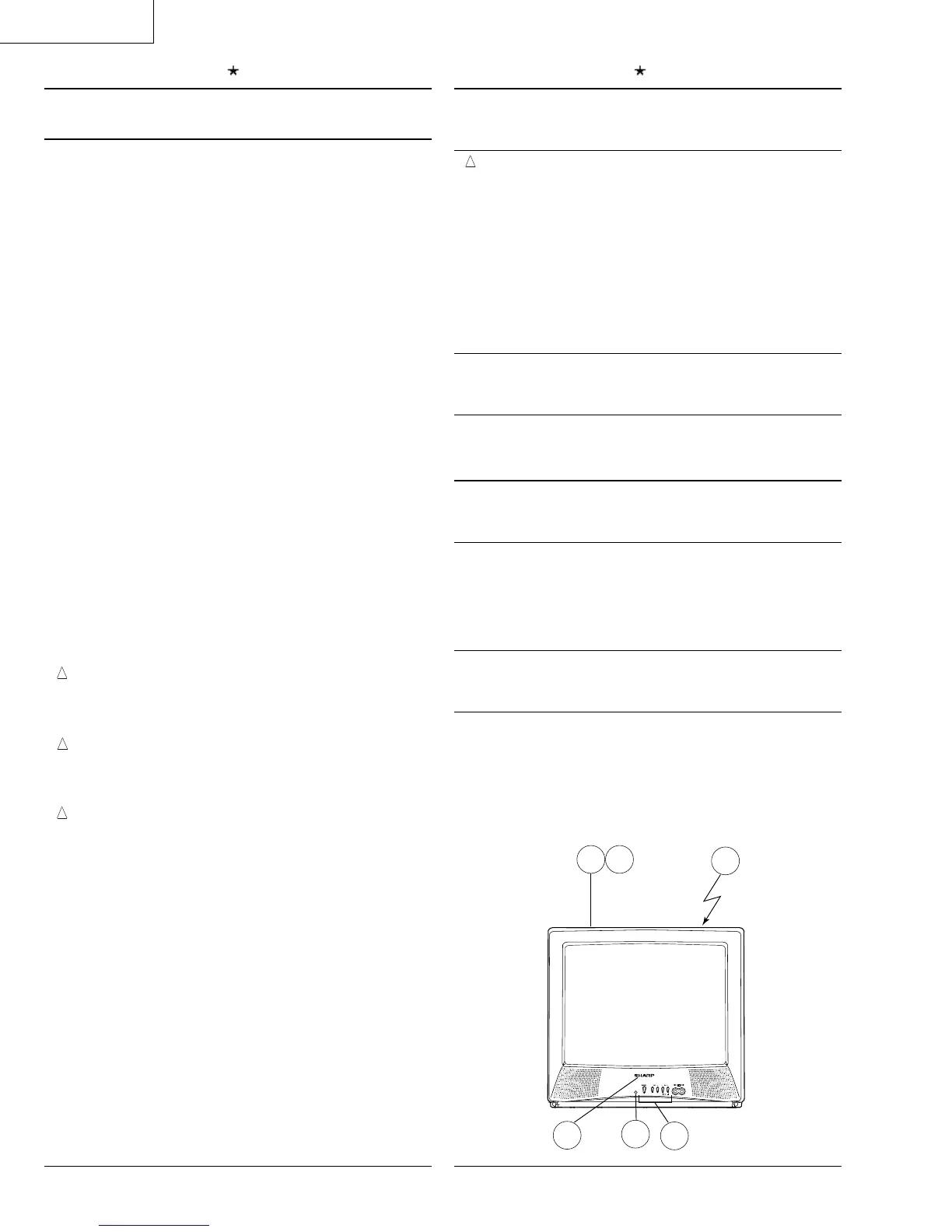

CABINET PARTS
ACC701 QACCD3064CESA J AC Cord AM
or
QACCD3090CESA
or
QACCD3060CESA
SP1 VSP0080PBP7YA X Speaker, 32 ohm A L
QCNW-2111PEZZ J Connecting Cord AF
QCNW-2112PEZZ J Connecting Cord AF
QCNW-2160PEZZ J Connecting Cord AG
TCAUS3000GJZZ X Caution Card A B
TLABM0003GJZZ X Label AB
SPAKC0210GJZZ – Packing Case —
SPAKP0102GJZZ – Wrapping Paper —
SPAKX0003GJZZ – Buffer Material —
SSAKA0101GJZZ – Polyethylene Bag —
PACKING PARTS
(NOT REPLACEMENT ITEM)
MISCELLANEOUS PARTS
RRMCG1339CESB X Infrared R/C Unit AQ
T iNS-7371GJZZ X Operation Manual AG
SUPPLIED ACCESORRIES
1
2
1-1
1-3
1-2
1-4
TRANSISTORS
Q852 VSBF422////-1 J BF422 AC
or
VS2SC2229O/1E
Q854 VSBF422////-1 J BF422 AC
or
VS2SC2229O/1E
Q856 VSBF422////-1 J BF422 AC
or
VS2SC2229O/1E
Q881 VS2SA1266-Y-1 J 2SA1266-Y AA
or
VS2SA1015-Y-1
DIODES
D882 RH-DX0475CEZZ J Diode AB
D885 RH-DX0475CEZZ J Diode AB
COIL
L852 VP-MK820K0000 J Peaking 82µH AB
CAPACITORS
[EL.··· Electrolytic]
C851 VCCCCY1HH151J J 150p 50V Ceramic AA
C852 VCCCCY1HH151J J 150p 50V Ceramic AA
C853 VCCSPA1HL151J J 150p 50V Ceramic AA
C854 RC-KZ0029CEZZ J 0.01 1.4kV Ceramic AC
or
RC-KZ0160CEZZ
C883 VCEA0A1CW336M J 33 16V EL. AB
RESISTORS
[M-Ox.··· Metal Oxide]
R851 VRS-CY1JF470J J 47 1/16W M-Ox. AA
R852 VRD-RA2BE181J J 180 1/8W Carbon AA
R853 VRS-CY1JF121J J 120 1/16W M-Ox. AA
R857 VRS-VU3AE123J J 12k 1W M-Ox. AB
R858 VRD-RM2HD332J J 3.3k 1/2W Carbon AA
R859 VRS-CY1JF470J J 47 1/16W M-Ox. AA
R860 VRD-RA2BE181J J 180 1/8W Carbon AA
R861 VRS-CY1JF121J J 120 1/16W M-Ox. AA
R865 VRS-VU3AE123J J 12k 1W M-Ox. AB
R866 VRD-RM2HD332J J 3.3k 1/2W Carbon AA
R867 VRS-CY1JF470J J 47 1/16W M-Ox. AA
R868 VRS-CY1JF181J J 180 1/16W M-Ox. AA
R869 VRS-CY1JF121J J 120 1/16W M-Ox. AA
R873 VRS-VU3AE123J J 12k 1W M-Ox. AB
R874 VRD-RM2HD332J J 3.3k 1/2W Carbon AA
R881 VRS-CY1JF561J J 560 1/16W M-Ox. AA
R882 VRS-CY1JF391J J 390 1/16W M-Ox. AA
R883 VRD-RA2BE561J J 560 1/8W Carbon AA
R884 VRS-CY1JF152J J 1.5k 1/16W M-Ox. AA
R886 VRS-CY1JF821J J 820 1/16W M-Ox. AA
R887 VRD-RA2BE470J J 47 1/8W Carbon AA
MISCELLANEOUS PARTS
P851 QPLGN0561CEZZ J Plug, 5-pin(GBN) AB
P852 QPLGN0461CEZZ J Plug, 4-pin(YBN) AB
SC851 QSOCV0933CEZZ J CRT Socket AH
or
QSOCV0016PEZZ
PWB-B: DUNTKA359WEW3
CRT UNIT
!
!
!
!
