REFRIGERANT CYCLE
1
2
Capillary tube
3
Outdoor unit
Condensor
Evaporator
Indoor unit
Compressor
Flare coupling Flare coupling
Silencer
4
valve valve
Accumulator

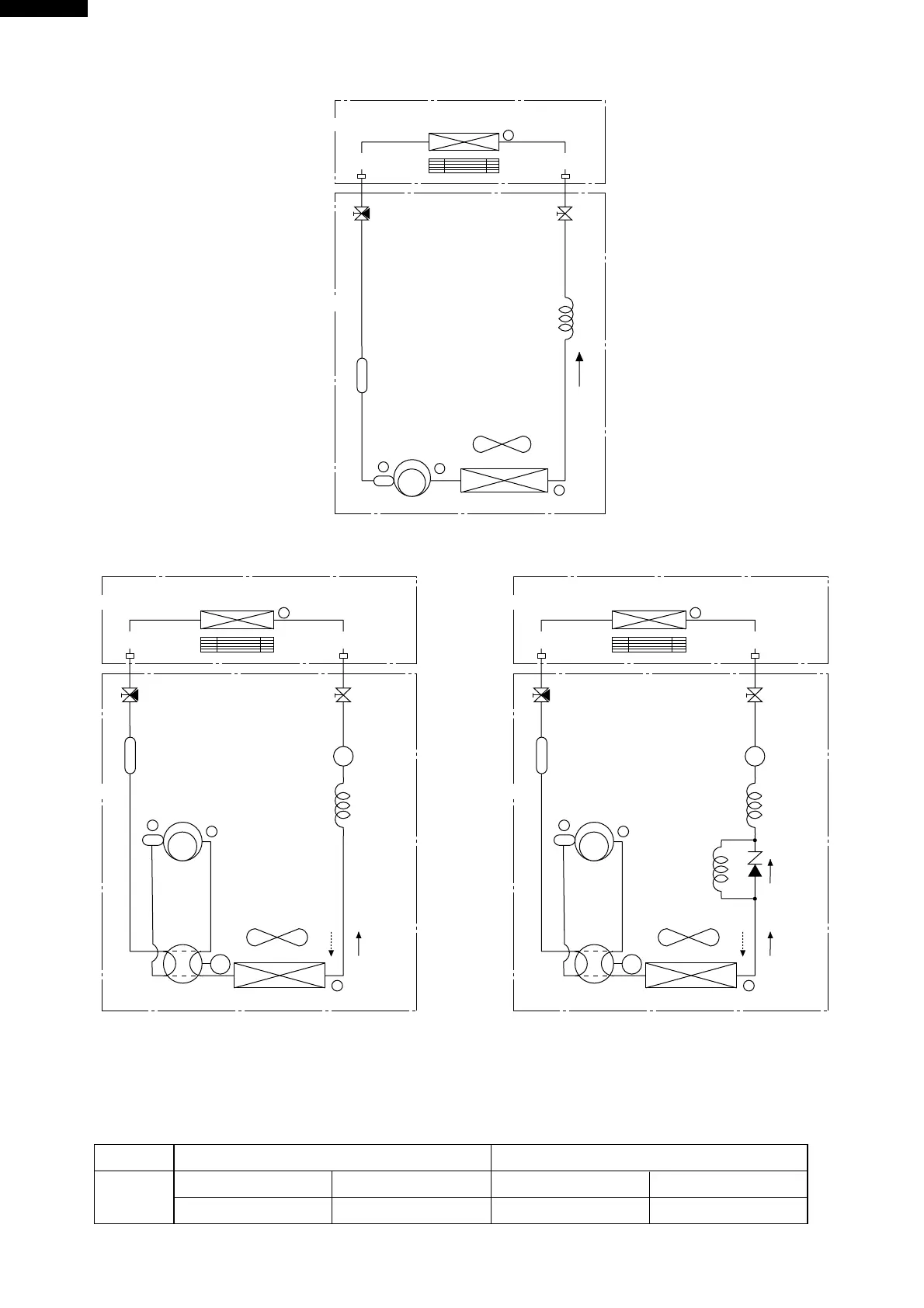

Figure R-1. Refrigeration Cycle for AH-X108E/AH-X138E
1
4
C
2
Accumulator
3
Strainer
Outdoor unit
Condensor
Evaporator
Reverse valve
Comp-
ressor
Valve Valve
Silencer
Cooling
Heating
Coil
Capillary 
tube A
Capillary 
tube B
Flare coupling
Indoor unit
Flare coupling
s
Figure R-2. Refrigeration Cycle for AY-X108E Figure R-3. Refrigeration Cycle for AY-X138E
Indoor side
Standard conditions: 
Dry-bulb Temp. (˚C) Relative Humidity (%)
27Cooling 47
Outdoor side
Dry-bulb Temp. (˚C) Relative Humidity (%)
35 40
AH-X108E, AH-X138E
1
4
C
2
Accumulator
3
Strainer
Outdoor unit
Condensor
Evaporator
Reverse valve
Comp-
ressor
Valve Valve
Silencer
Cooling
Heating
Coil
Capillary 
tube A
Flare coupling
Indoor unit
Flare coupling
s
