[4] REMOVING OF MAJOR PARTS (LC-80LE633U/844U)

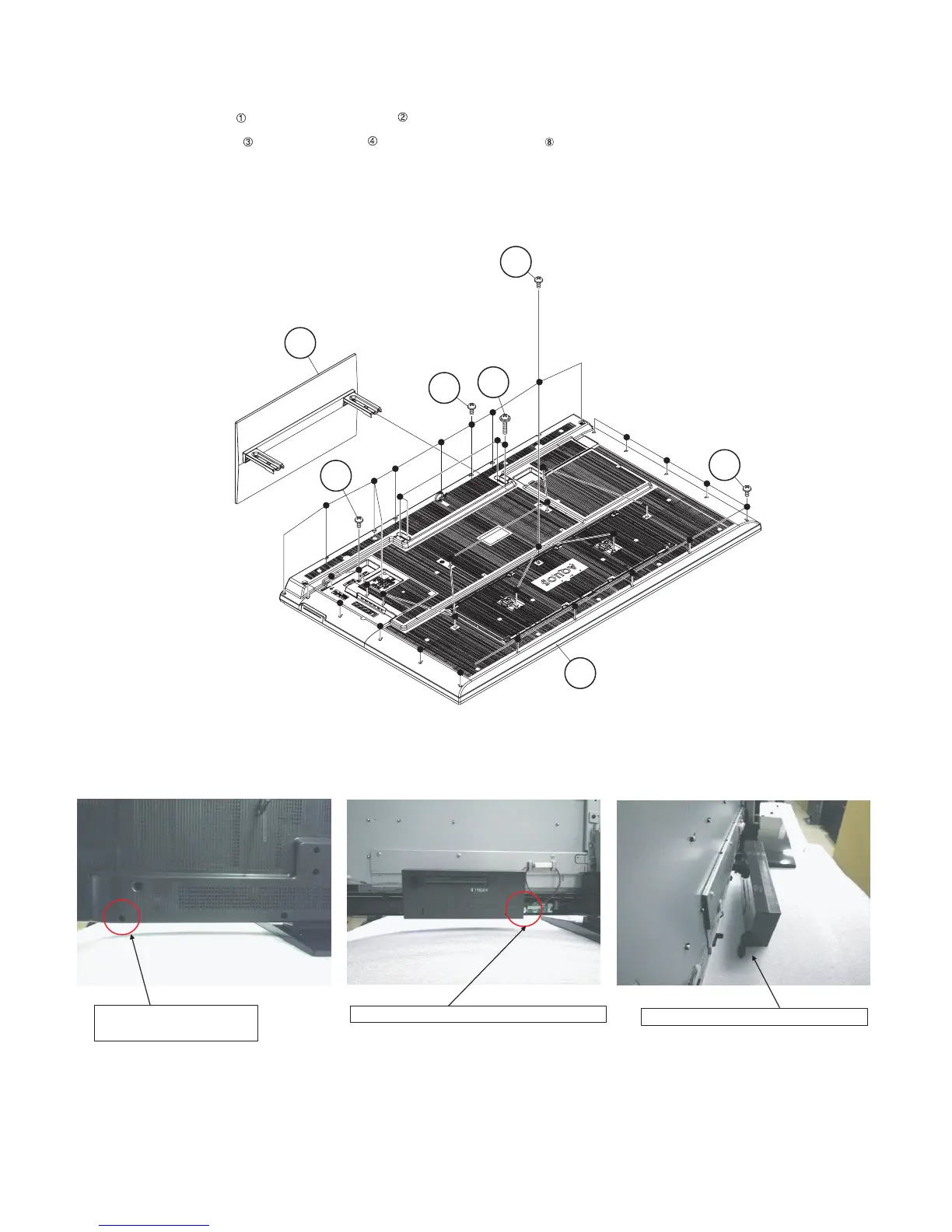

1. Removing of Stand Unit and Rear Cabinet Ass’y.
1. Remove the 4 lock screws and detach the Stand Unit .
2. Remove the 10 lock screws and 26 lock screws and detach the Rear Cabinet .
[Precautions when mounting and removing the rear cabinet]
Therefore, it does not come away completely, but only one side can come off.
2Stand Unit
Rear Cabinet
8
1
3
4
4
4
Tighten together with the
Rear Cabinet Ass'y.
Fix with the 80" LCD Panel Module Unit.
Only one side (outer) can come off.
To Next Page
