Sharp LC-26SB25S User Manual

Connecting external devices
E
Before connecting ...
Be sure to turn off the TV and any devices before making any connections�•
Firmly connect a cable to a terminal or terminals�•
Carefully read the operation manual of each external device for possible connection types� This also helps you get •
the best possible audiovisual quality to maximise the potential of the TV and the connected device�
VGA
Y
LR
LR
Pb Pr
SCART 1SCART 2
AUDIO
SPDIF OUT
AUDIO OUT
PC IN
COMPONENT
75Ω
SERVICE
VGA
Y
LR
LR
Pb Pr
AUDIO
SPDIF OUT
AUDIO OUT
PC IN
COMPONENT
75Ω
SERVICE
S
PDIF
OU
T
Y
L
R
Pb
Pr
COMPONEN
T
L
R
L
R
S-VIDEO
VIDEO L R
AV IN
VIDE
O
L
R
AV IN
S
-VIDE
O
O
L
R
L
R

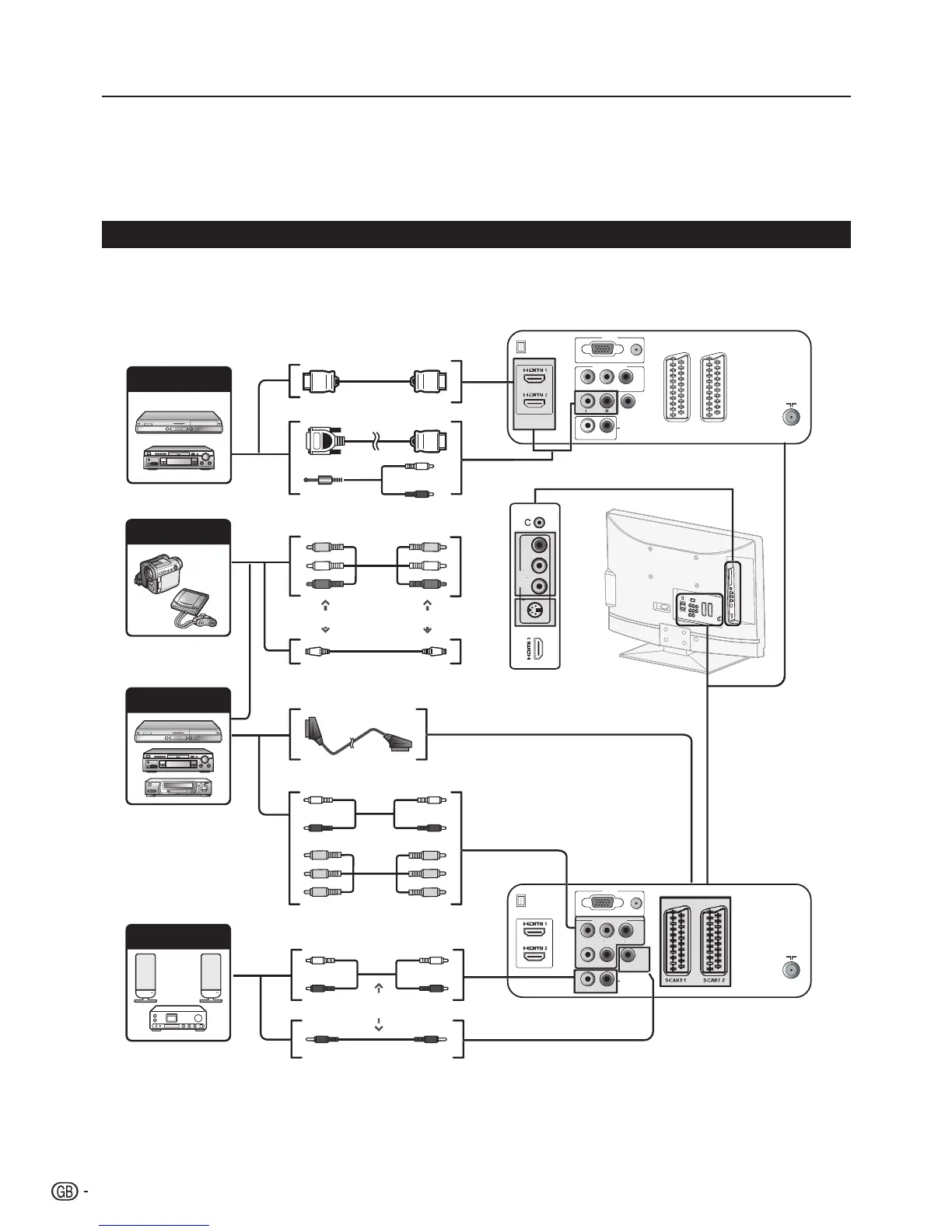

The TV is equipped with the terminals as shown below� Find the cable corresponding the TV’s terminal and connect
the device�
* When using S-video cable, you also need to connect an audio cable (R/L).
Introduction to connections
12
Digital audio cable
HDMI device
Game console or
camcorder
Video recording
device
Audio device
HDMI Cable
DVI/HDMI Cable
Audio cable
S-video cable
*
AV cable*
Audio cable
Component cable
SCART cable
or
Audio cable
or
or
