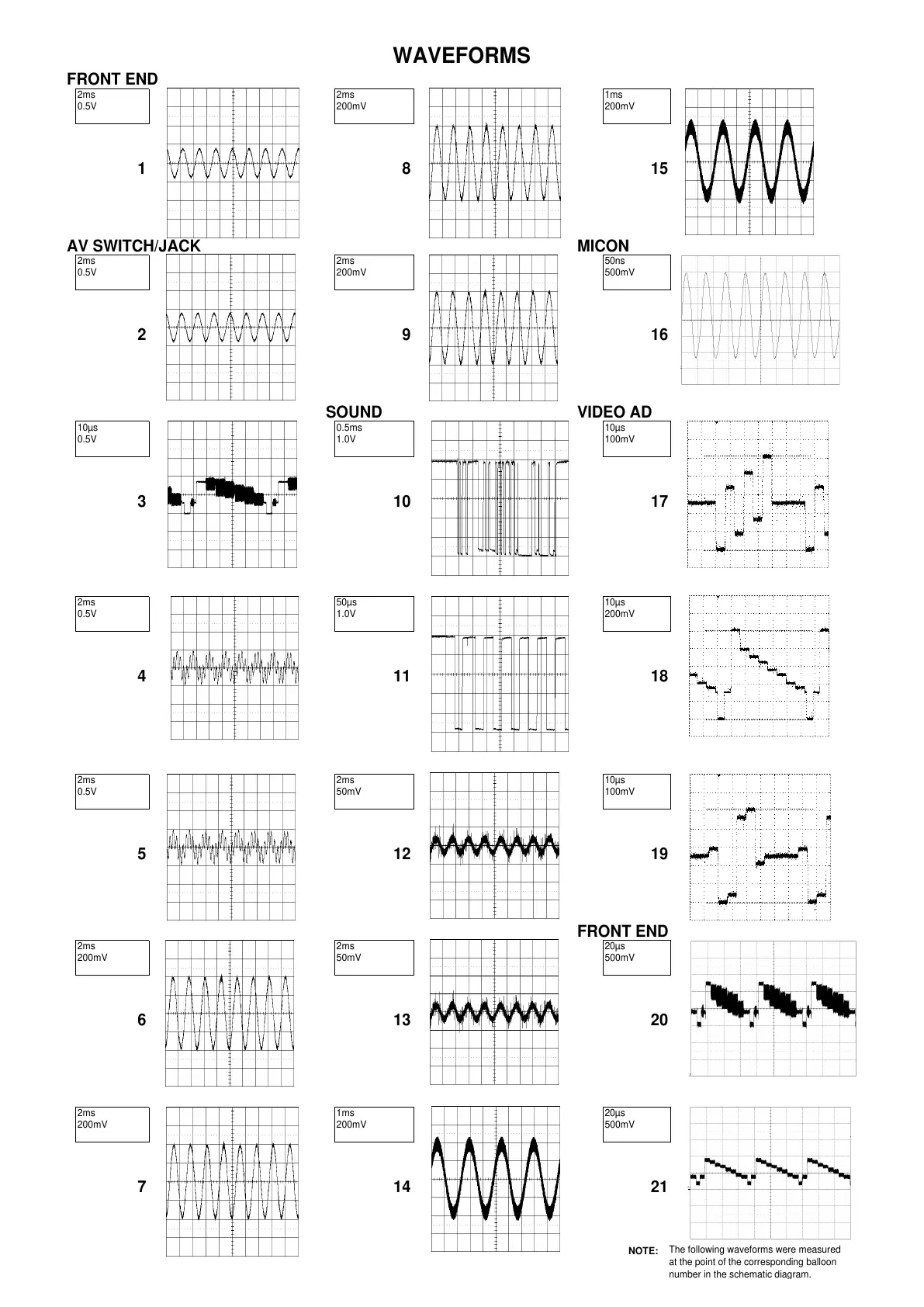

WAVEFORMS
FRONT END
2ms 2ms 1ms
0.5V 200mV 200mV
1 8 15
AV SWITCH/JACK MICON
2ms 2ms 50ns
0.5V 200mV 500mV
2 9 16
SOUND VIDEO AD
10µs 0.5ms 10µs
0.5V 1.0V 100mV
3 10 17
2ms 50µs 10µs
0.5V 1.0V 200mV
4 11 18
2ms 2ms 10µs
0.5V 50mV 100mV
5 12 19
FRONT END
2ms 2ms 20µs
200mV 50mV 500mV
6 13 20
2ms 1ms 20µs
200mV 200mV 500mV
7 14 21
The following waveforms were measured
at the point of the corresponding balloon
number in the schematic diagram.
NOTE:
I-1
