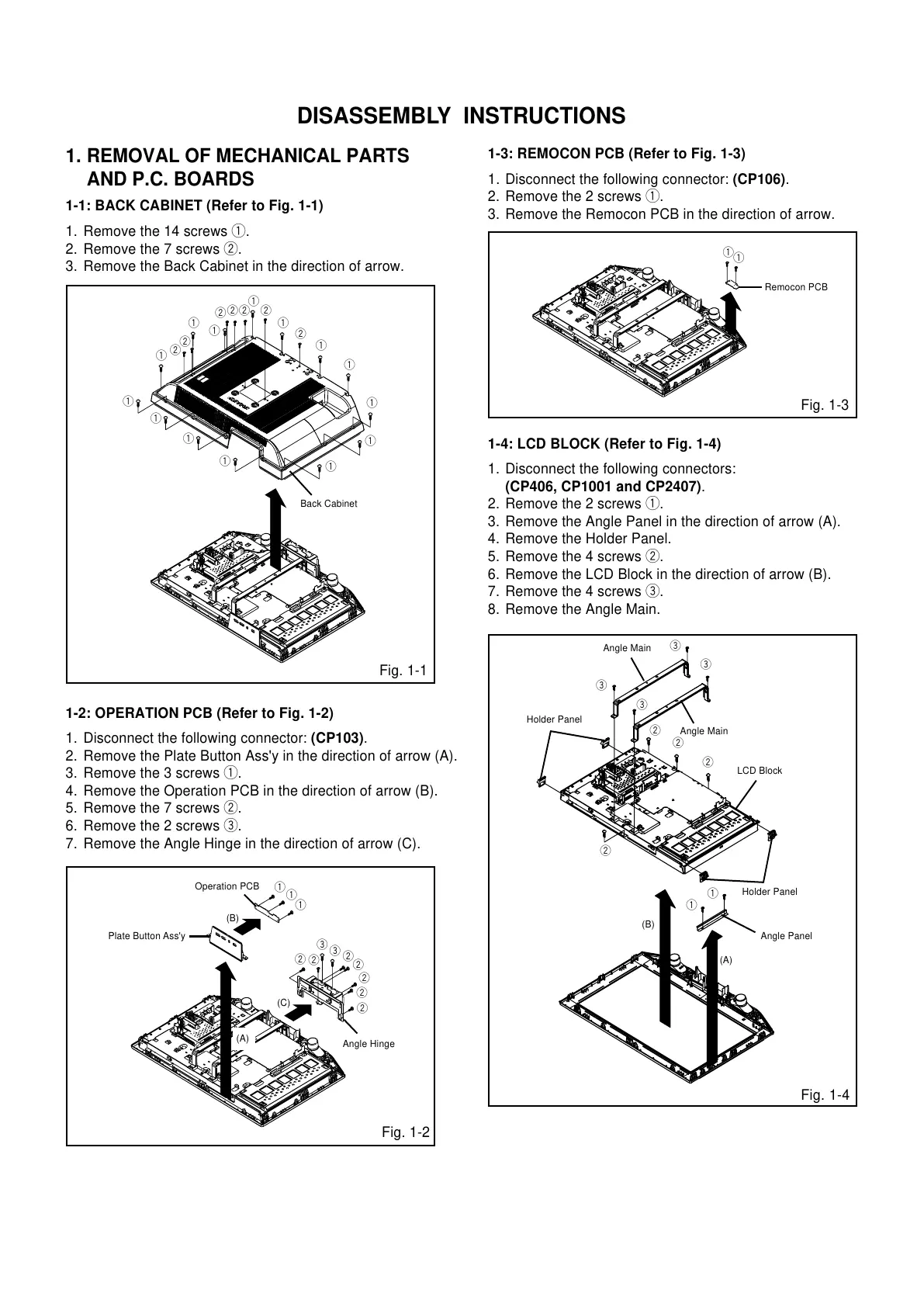

DISASSEMBLY INSTRUCTIONS
B1-1
1. REMOVAL OF MECHANICAL PARTS
AND P.C. BOARDS
1-2: OPERATION PCB (Refer to Fig. 1-2)
1.
2.
3.
4.
5.
6.
7.
Disconnect the following connector: (CP103).
Remove the Plate Button Ass'y in the direction of arrow (A).
Remove the 3 screws 1.
Remove the Operation PCB in the direction of arrow (B).
Remove the 7 screws 2.
Remove the 2 screws 3.
Remove the Angle Hinge in the direction of arrow (C).
Fig. 1-2
1-1: BACK CABINET (Refer to Fig. 1-1)
1.
2.
3.
Remove the 14 screws 1.
Remove the 7 screws 2.
Remove the Back Cabinet in the direction of arrow.
Fig. 1-1
1-4: LCD BLOCK (Refer to Fig. 1-4)
1.
2.
3.
4.
5.
6.
7.
8.
Disconnect the following connectors:
(CP406, CP1001 and CP2407).
Remove the 2 screws 1.
Remove the Angle Panel in the direction of arrow (A).
Remove the Holder Panel.
Remove the 4 screws 2.
Remove the LCD Block in the direction of arrow (B).
Remove the 4 screws 3.
Remove the Angle Main.
Fig. 1-4
1-3: REMOCON PCB (Refer to Fig. 1-3)
1.
2.
3.
Disconnect the following connector: (CP106).
Remove the 2 screws 1.
Remove the Remocon PCB in the direction of arrow.
Fig. 1-3
Operation PCB
1
Plate Button Ass'y
(B)
(A)
1
1
(C)
2
2
2
2
2
2
2
3
3
Back Cabinet
2
1
2
22
2
2
2
1
1
1
1
1
1
1
1
1
1
1
1
1
2
Holder Panel
2
2
2
LCD Block
Angle Main
3
3
(B)
3
3
Angle Main
Holder Panel
Remocon PCB
1
1
(A)
1
1
Angle Hinge
Angle Panel
