Sharp LC-26SH330E User Manual

Introduction

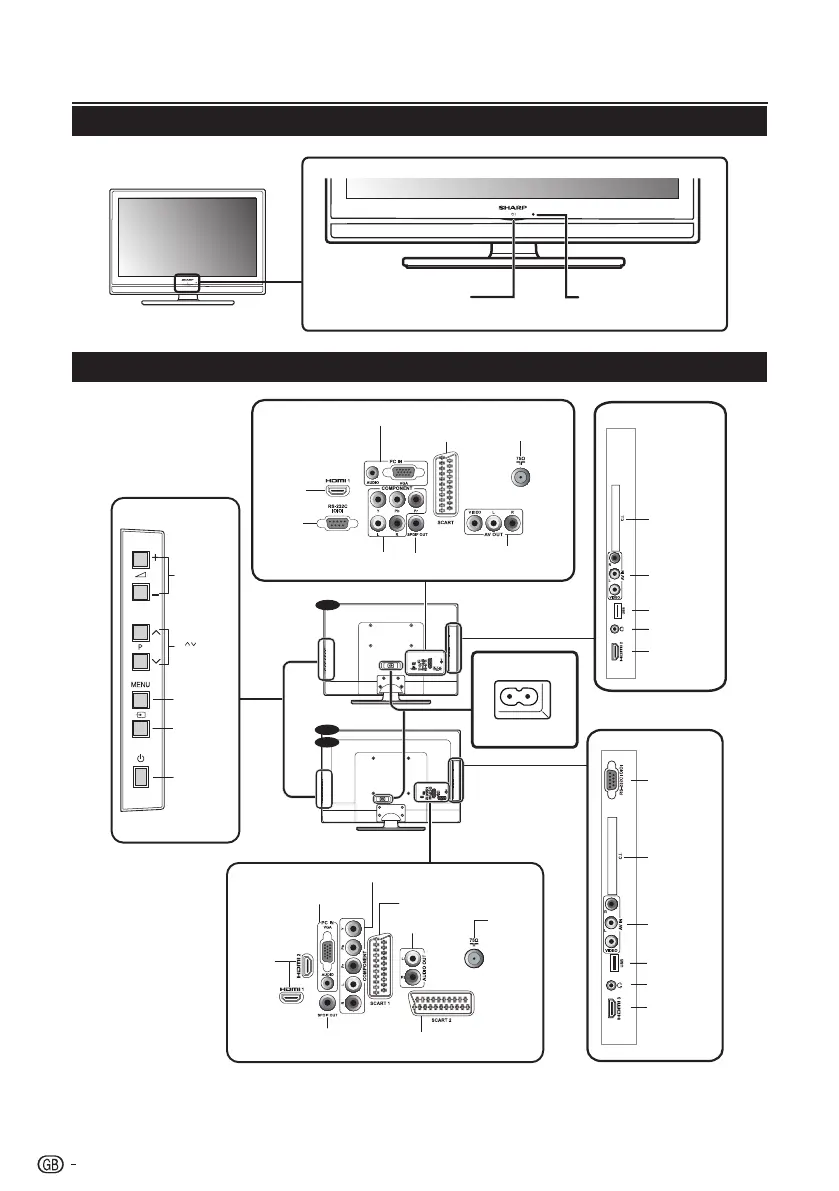

TV (Front view)
B
(Standby/On) indicator
Remote control sensor
TV (Rear view)
26”
POWER button
Volume buttons
MENU button
COMMON
INTERFACE
slot
Composite
(AV IN, AV/LR)
Headphone Output
AC IN
PC IN
(VGA / AUDIO)
COMPONENT (VIDEO
and L/R AUDIO INPUT)
SCART
(CVBS Tuner out)
AV VIDEO and L/R Audio
Output
RS-232C
IOIOI
Tuner Input
SPDIF OUT
(Digital audio out)
Tuner Input
SCART 1 (CVBS Tuner out)
SCART 2 (CVBS Monitor out)
AV L/R Audio Output
PC IN (VGA / AUDIO)
COMPONENT (VIDEO and L/R AUDIO INPUT)
HDMI 1
HDMI 2
SPDIF OUT
(Digital audio out)
HDMI 1
P ( )
Programme
(Channel) buttons
Power conntector
USB
HDMI 2
COMMON
INTERFACE
slot
Composite
(AV IN, AV/LR)
Headphone Output
RS-232C
IOIOI
USB
HDMI 3
32”
42”
INPUT SOURCE
button
RS232C-connector
• TheRS232connectorisonlyusedforservicepurpose.
4

Sharp LC-26SH330E Specifications

General

Child lock	No
Teletext function	Yes
Audio formats supported	AAC
Video formats supported	DIVX, MPEG4
Number of AV connections	1
Response time	6.5 ms
Display diagonal	26 \
Display brightness	450 cd/m²
Display resolution	1366 x 768 pixels
Display technology	LCD
Native aspect ratio	16:9
Supported graphics resolutions	1366 x 768
HDMI version	1.3
Audio (L/R) in	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Product color	Black
Panel mounting interface	200 x 100 mm
Remote control type	GL220
Power consumption (standby)	0.18 W
Power consumption (typical)	55 W
RMS rated power	10 W
Tuner type	Analog & digital
Analog signal format system	NTSC, PAL, SECAM
Digital signal format system	DVB-C, DVB-T

Weight and Dimensions

Depth (with stand)	239.8 mm
Width (with stand)	657.8 mm
Height (with stand)	491.1 mm
Weight (with stand)	8300 g
Depth (without stand)	91.6 mm
Height (without stand)	448.4 mm
