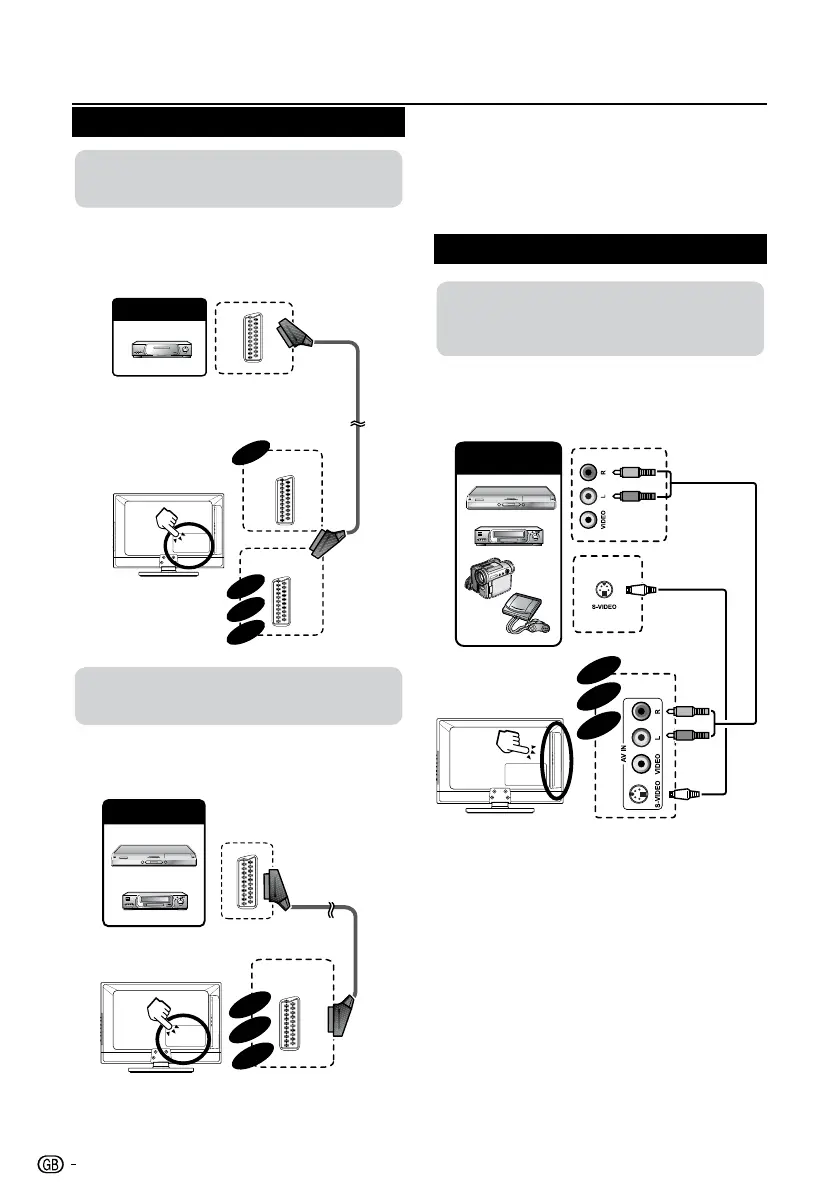

SCART connection
Example of connectable devices
E Decoder
E
When using the SCART 1
Full SCART, which transmits RGB, S-Video and CVBS
in, and CVBS tuner out.
SCART
SCART 1
19”
26”
32”
42”
Example of connectable devices
E VCR E DVD recorder
E
When using the SCART 2
Half SCART, which transmits S-Video or CVBS in, and
CVBS monitor out.
SCART 2
26”
32”
42”
Connecting external devices
NOTE
In cases when the decoder needs to receive a signal •
from the TV, make sure to select the appropriate input
source.
Do not connect the decoder to the SCART 2.•
You cannot connect the VCR with Decoder using a fully •
wired SCART cable under the SCART 2 source.
S-Video connection
Example of connectable devices
E VCR E DVD E Blu-ray player/recorder
E Game concole E Camcorder
You can use the S-Video when connecting to a game
console, camcorder, a DVD recorder and some other
equipment.
26”
32”
42”
NOTE
When using a S-video cable, you also need to connect •
an audio cable (R/L).
SCART cable
Decoder
SCART cable
VCD / DVD
recorder
S-Video
connection
Audio cable
S-video cable
20

Sharp LC-26SH7E Specifications

General

Comb filter	Digital
Display diagonal	26 \
Display brightness	450 cd/m²
Display resolution	1366 x 768 pixels
Display technology	LCD
Native aspect ratio	16:9
Viewing angle, vertical	150 °
Contrast ratio (dynamic)	8000:1
Contrast ratio (typical)	800:1
Viewing angle, horizontal	160 °
Power requirements	220 - 240V AC, 50 - 60Hz
Headphone connectivity	3.5 mm
SCART ports quantity	2
Digital audio coaxial out	1
Product color	Black
Panel mounting interface	200 x 100 mm
Power consumption (standby)	0.3 W
Power consumption (typical)	55 W
RMS rated power	10 W
Tuner type	Analog & digital

Weight and Dimensions

Depth (with stand)	239.8 mm
Width (with stand)	657.8 mm
Height (with stand)	491.1 mm
Weight (with stand)	8400 g
Depth (without stand)	91.6 mm
Height (without stand)	448.4 mm
