STBY_ON/OFF_NOT should be high for standby condition, please check R203.
B. CI Module Problem
Problem: CI is not working when CI module inserted.
Possible couses: Supply, suply control pin, detect pins, mechanical positions of pins.
50

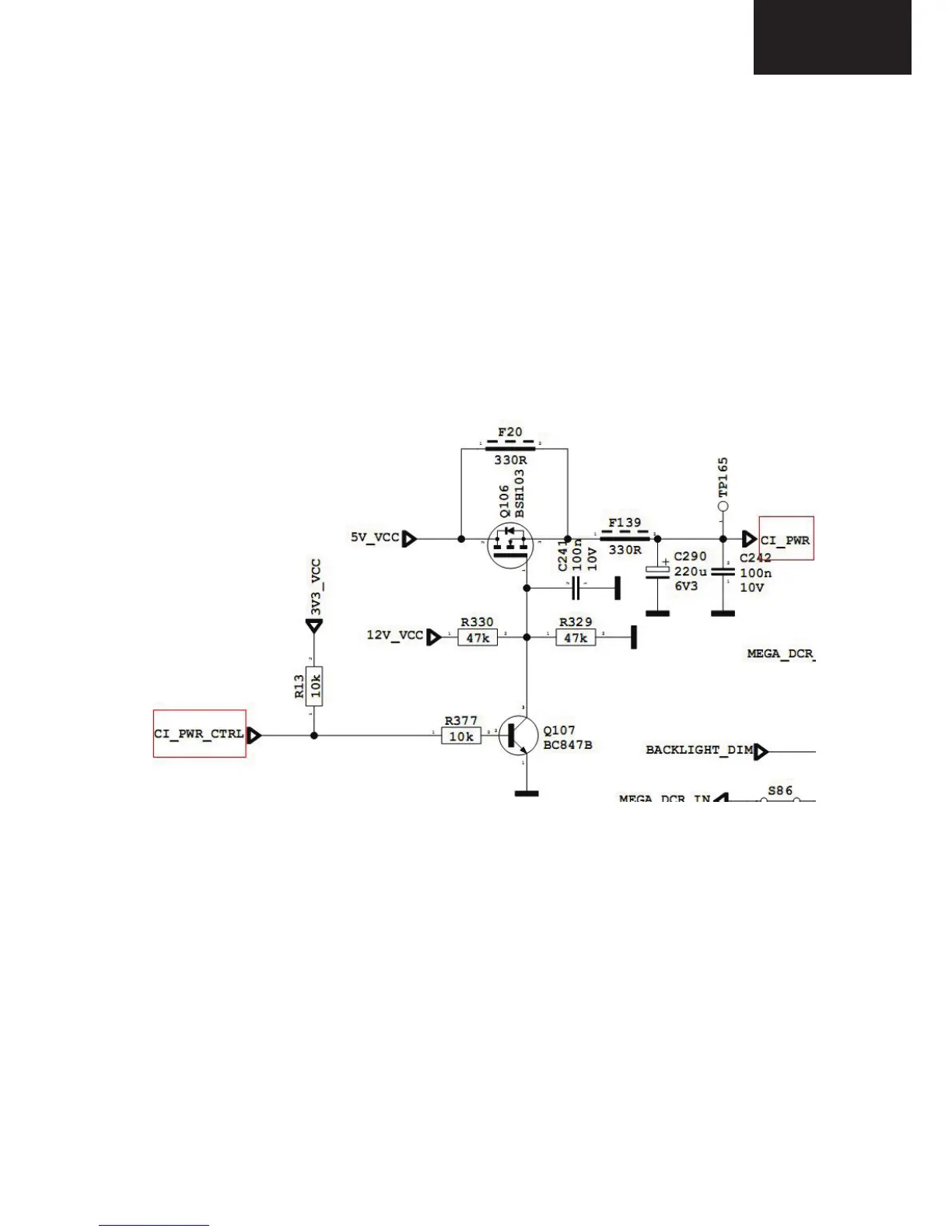

 CI supply should be 5V when CI module inserted. If it is not 5V please check
CI_PWR_CTRL, this pin should be low.
 Please check mechanical position of CI module. Is it inserted properly or not?
 Detect ports should be low. If it is not low please check CI connector pins, CI module
pins.
