LC-32/40/46/52LE700UN
4 – 1
LC32LE700UN
Service Manual
CHAPTER 4. REMOVING OF MAJOR PARTS
[1] REMOVING OF MAJOR PARTS
1. Removing of Stand Unit and Rear Cabinet Ass’y.
(LC-32LE700UN)

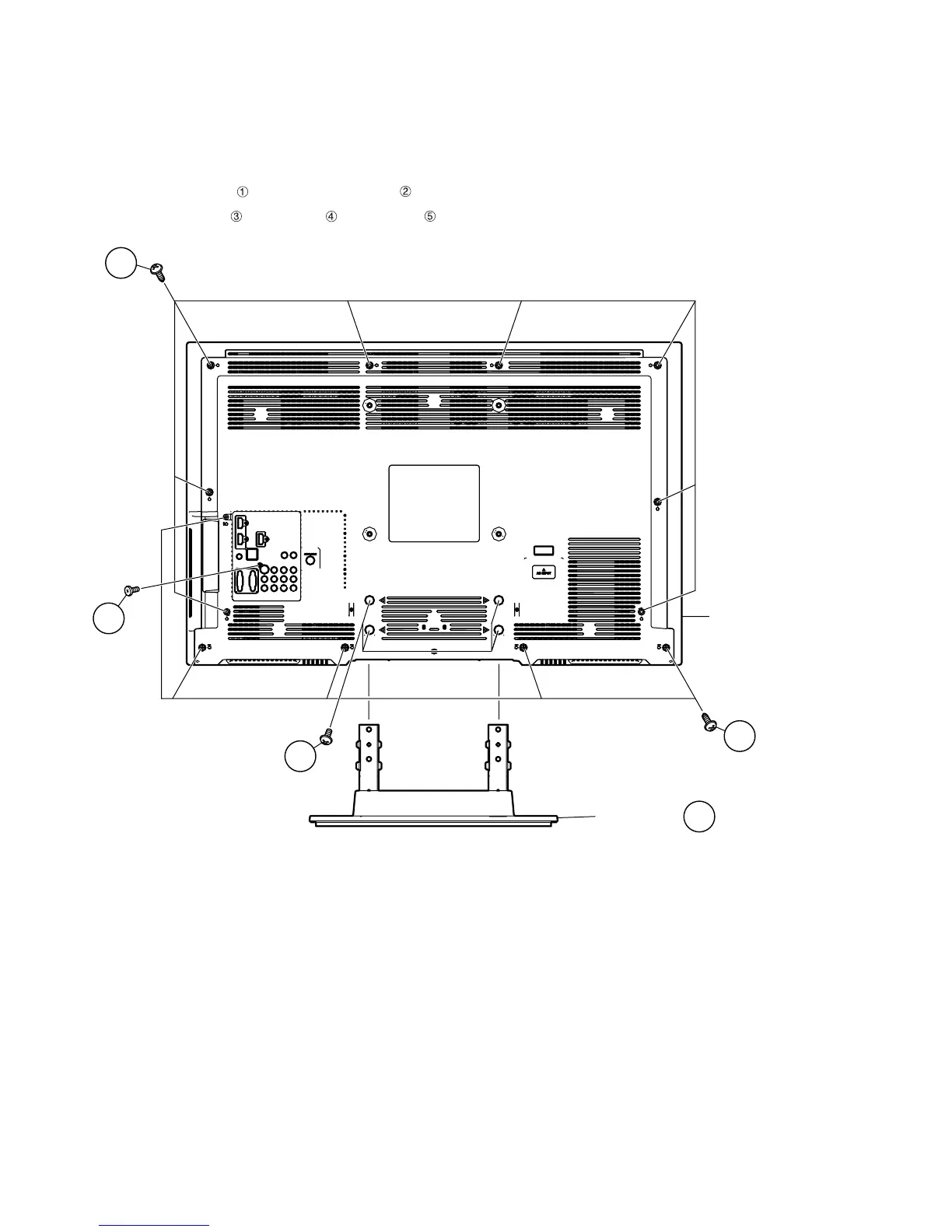

1. Remove the 4 lock screws and detach the Stand Unit .
2. Remove the 1 lock screw , 5 lock screws , 8 lock screws and detach the Rear Cabinet Ass’y.
䎔
䎖
䎘
䎗
䎕
䎶䏗䏄䏑䏇䎃䎸䏑䏌䏗
䎵䏈䏄䏕䎃䎦䏄䏅䏌䏑䏈䏗䎃䎤䏖䏖䎊䏜
