Service Manual
CHAPTER 4. REMOVING OF MAJOR PARTS
[1] REMOVING OF MAJOR PARTS (LC-42D64U)

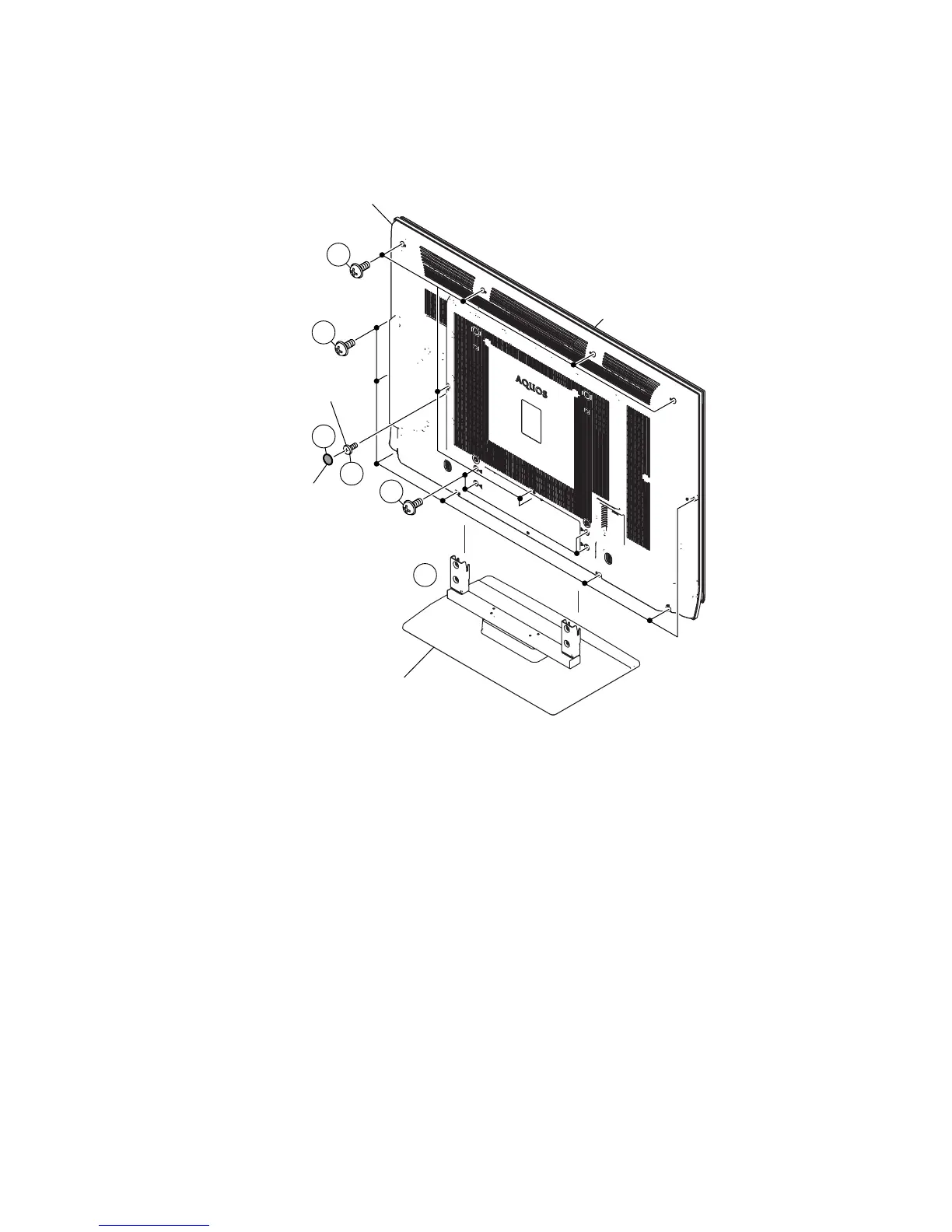

1. Remove the Black Sheet, and remove the 7 lock screws, 1 lock screw, 7 lock screws and detach the Rear Cabinet.
2. Remove the 4 lock screws and detach the Stand Base Ass'y.
CAUTION: For 42/46, In the case of assembly, the new sheet (PSPAKA237WJ00) can be stuck on a flat head screw.
1
2
2
Stand Base Ass'y
Rear Cabinet
Front Cabinet
Black Sheet
Flat head screw
1
1
1
