Using DVI (same as HDMI but requires an audio connection)
To connect a cable or satellite box using DVI:
1 Make sure that your TV’s power cord is unplugged and all connected equipment is turned off.
2 Connect the incoming cable from the cable wall jack to the cable-in jack on the cable or satellite box.
3 Connect an HDMI-DVI adapter (not provided) to one end of an HDMI cable (not provided), then connect the
adapter to the DVI OUT jack on the cable or satellite box.
4 Connect the other end of the cable to the HDMI 3/DVI jack on the side of your TV.
5 Connect a 3.5mm audio cable (not provided) to the PC/DVI AUDIO IN jack on the back of your TV and to the
AUDIO OUT jacks on the cable or satellite box.
6 Plug your TV’s power cord into a power outlet, turn on your TV, then turn on the cable or satellite box.
7 Press INPUT to open the INPUT SOURCE list.
8 Press
S or T to select HDMI 3, then press ENTER.
Note
You must use the HDMI 3/DVI jack to connect a cable or satellite box using
DVI. If you use another HDMI jack, you will not hear sound from the TV
speakers.
Note
When you connect the audio using the PC/DVI AUDIO IN jack, the audio
output is analog.

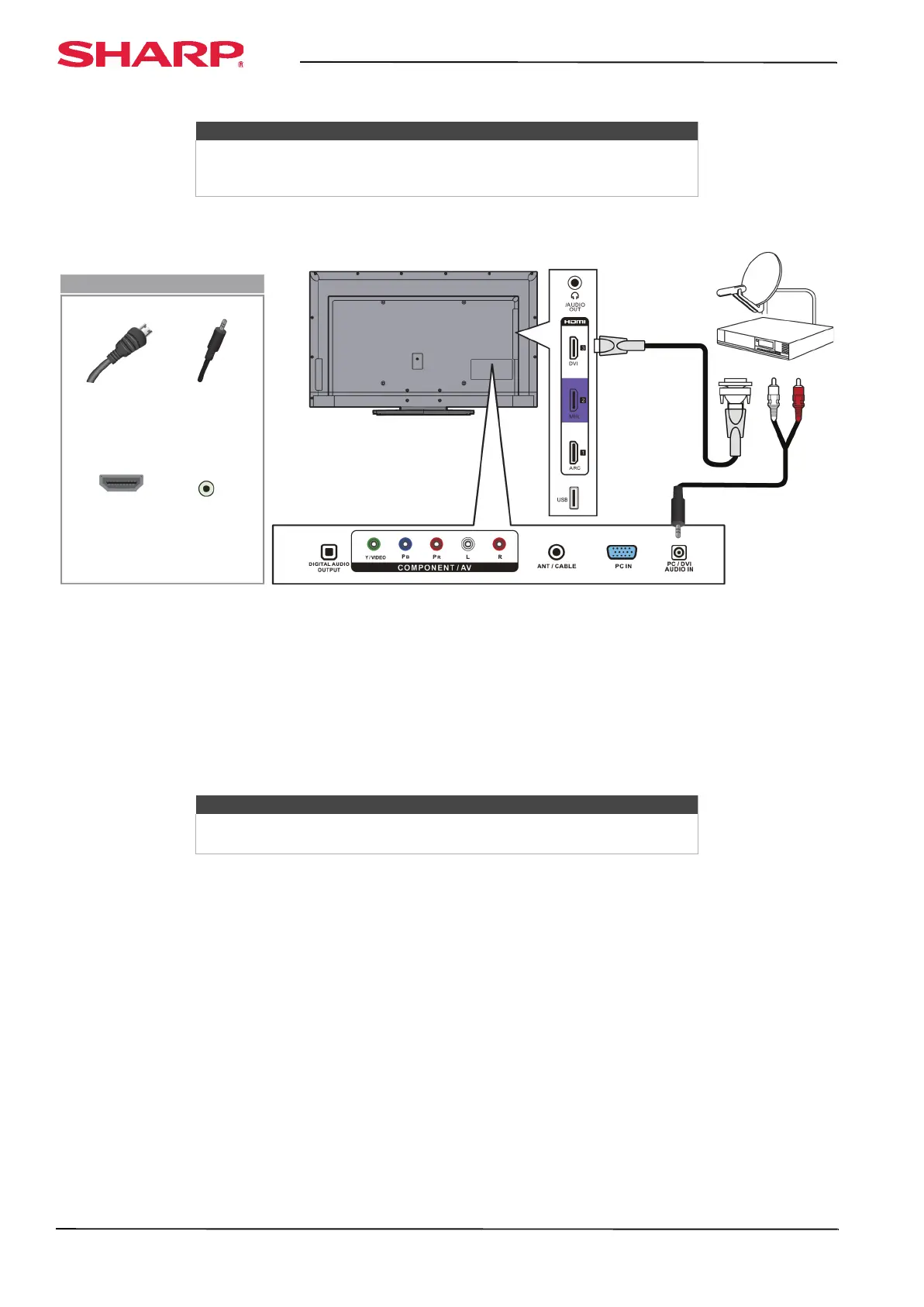

Cable or
satellite box
HDMI cable
with
HDMI-DVI
adapter
3.5mm audio
cable
Side of TV
HDMI cable
connector
3.5mm audio
connector
HDMI 3/DVI
jack
PC/DVI
AUDIO IN
jack
On your TV
Back of TV
