Using DVI (same as HDMI but requires an audio connection)
To connect a computer using DVI:
1 Make sure that your TV’s power cord is unplugged and the computer is turned off.
2 Connect an HDMI-DVI adapter (not provided) to one end of an HDMI cable (not provided), then connect the
adapter to the DVI OUT jack on the computer.
3 Connect the other end of the cable to the HDMI 3/DVI jack on the side of your TV.
4 Connect an audio cable with a stereo mini plug (not provided) to the PC/DVI AUDIO IN jack on the back of your
TV and to the AUDIO OUT (headphone) jack on the computer.
5 Plug your TV’s power cord into a power outlet, then turn on your TV and the computer.
6 Press INPUT to open the INPUT SOURCE list.
7 Press
S or T to select HDMI 3, then press ENTER.
8 Adjust the display properties on the computer, if necessary.
Note
You must use the HDMI 3/DVI jack to connect a computer using DVI. If you
use another HDMI jack, you will not hear sound from the TV speakers.
Note
When you connect the audio using the PC/DVI AUDIO IN jack, the audio
output is analog.

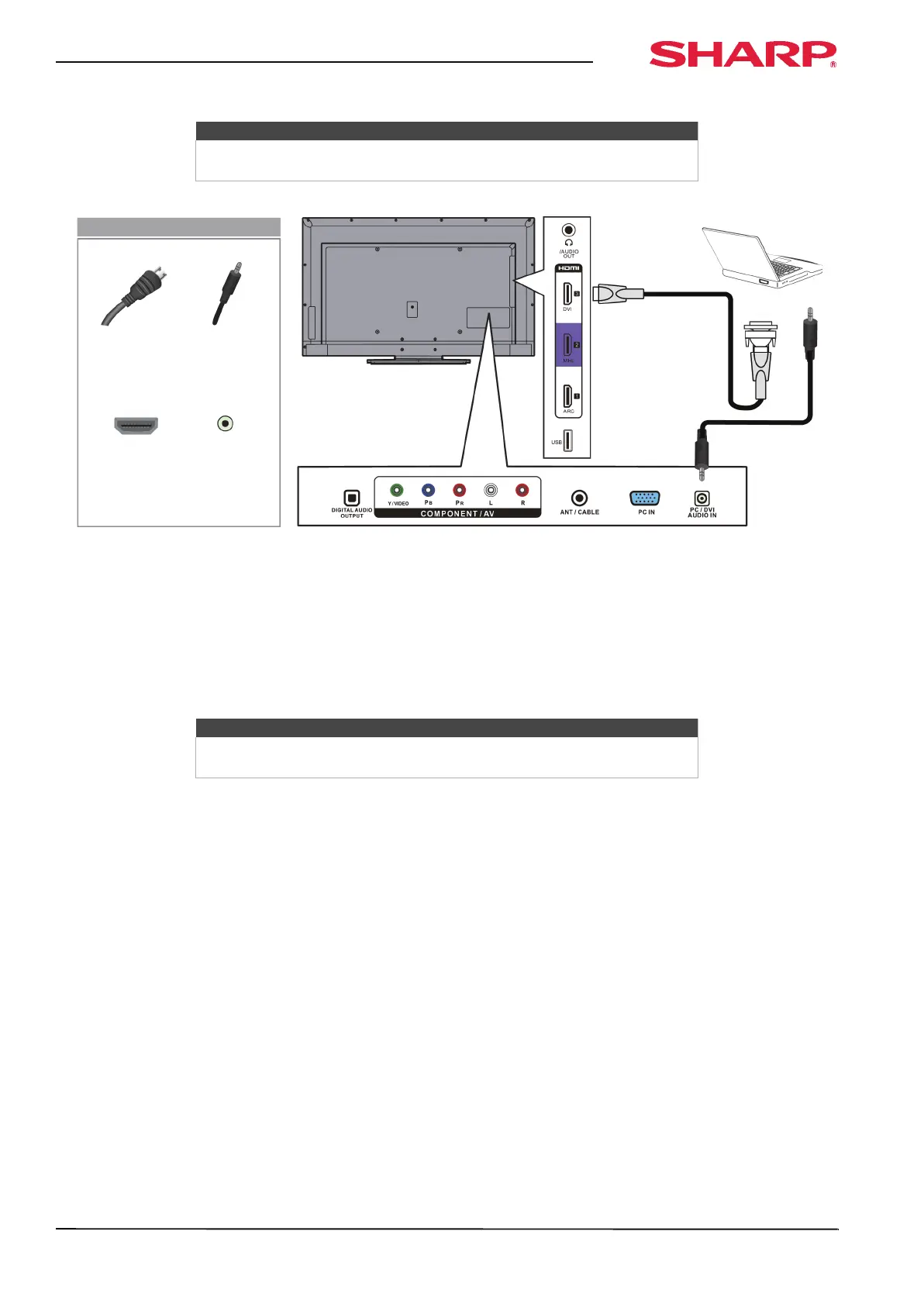

HDMI cable
connector
Audio cable
with stereo
mini plug
HDMI 3/DVI
jack
PC/DVI
AUDIO IN
jack
On your TV
HDMI cable
with HDMI-DVI
adapter
Audio cable
with stereo
mini plug
Side of TV
Back of TV
