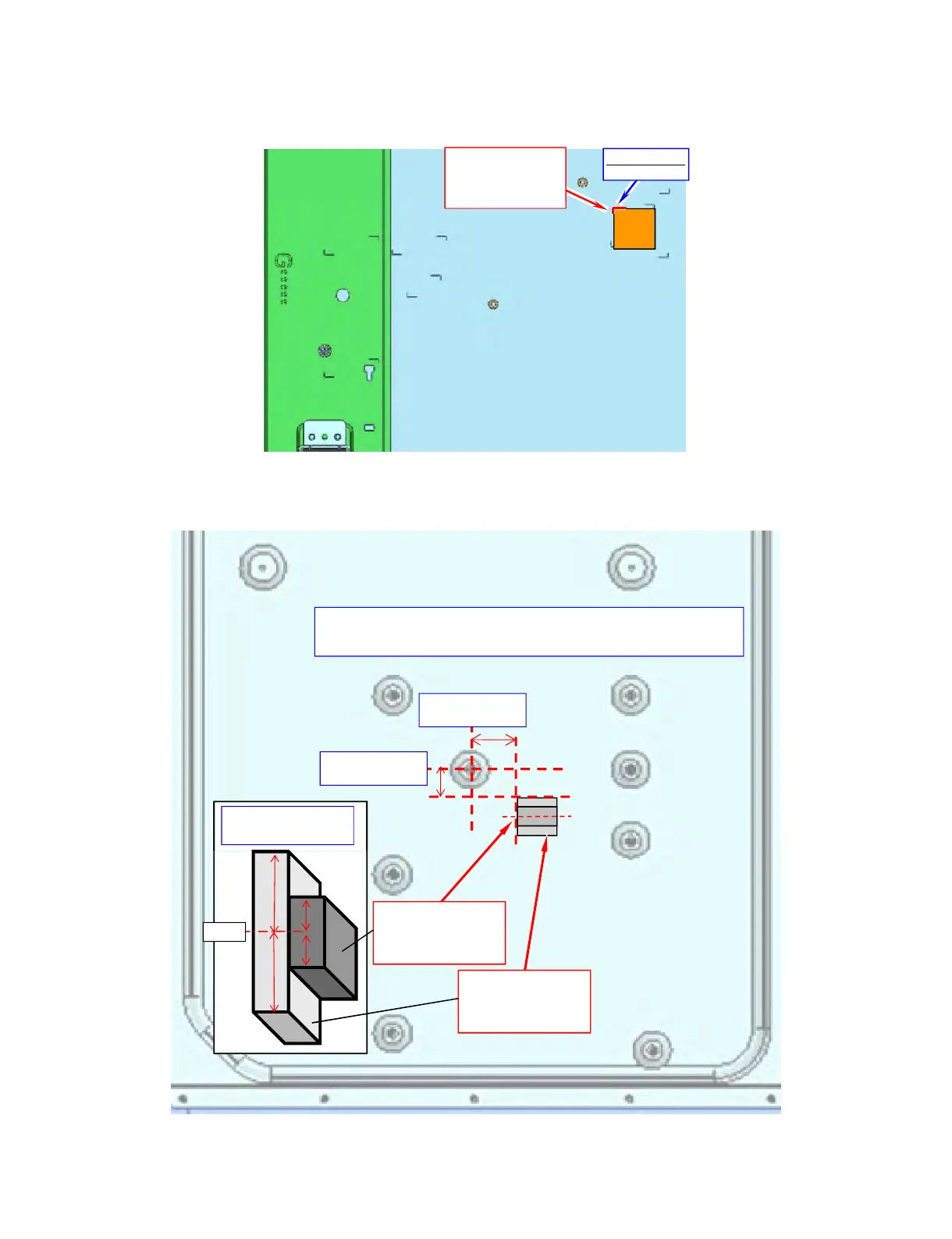

[3] The location putting on the heat measure sheet (LC-60/70LE650U/C6500U/LE657U)
1. MAIN PWB Unit
• LC-60LE650U/C6500U/LE657U
• LC-70LE650U/6500U/LE657U
(1) Stick***
PSPAZD031WJKZ
MAIN CPU COOLER
(20*20*7T)
(20 20 7T)
Stick standard
Punch mark
30mm from center
of screw hole.
20mm from center
of screw hole.
First , please put "PSPAZC805WJKZ" along the standard point.
next , please put "PSPAZC854WJKZ" on the center of "PSPAZC805WJKZ".
( Don't protrude from edge of "PSPAZC805WJKZ".)
Side View of
MAIN•CPU COOLER
(2) Stick *****
PSPAZC805WJKZ
(MAIN-CPU COOLER)
(25x25x8mm)
(3) Stick *****
PSPAZC854WJKZ
(MAIN-CPU COOLER)
(25x15x8.5mm)
Center

Sharp LC-60LE650U Specifications

General

Display diagonal	60 \
Native aspect ratio	16:9
Native refresh rate	120 Hz
LED backlighting type	Edge-Lit LED
Supported video modes	1080p
Contrast ratio (dynamic)	4000000:1
Viewing angle, horizontal	176 °
3D	No
Tuner type	Analog & digital
Analog signal format system	NTSC
Digital signal format system	ATSC
RMS rated power	20 W
Number of speakers	2
HDMI version	1.4
HDMI ports quantity	4
DVI-D ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) in	1
Consumer Electronics Control (CEC)	Aquos Link
Electronic Program Guide (EPG)	-
Product color	Black
Panel mounting interface	400 x 400 mm
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	- W
Power consumption (typical)	188 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (with stand)	360 mm
Height (with stand)	851 mm
Weight (with stand)	28000 g
Depth (without stand)	77 mm
Width (without stand)	1379 mm
Height (without stand)	826 mm
Weight (without stand)	25000 g
