PART NAMES
1 Door handle
Pull to open door.
2 Auto-Touch control panel
3 2-line 16 digit display Maximum time: 99
minutes, 99 seconds
4 Oven door with see-through window
5 Safety door latches
The oven will not operate unless the
door is securely closed.
6 Door hinges
7 Door seals and sealing surfaces
8 Turntable motor shaft
9 Removable turntable support
Carefully place the turntable support in
the center of the oven floor.
10 Removable turntable
Place the turntable on the turntable
support securely. The turntable will
rotate clockwise or counterclockwise.
Only remove for cleaning.
11 Ventilation openings (Rear)
12 Oven light
It will light when oven is operating or
door is open.
13 Waveguide cover: DO NOT REMOVE.
14 Menu label

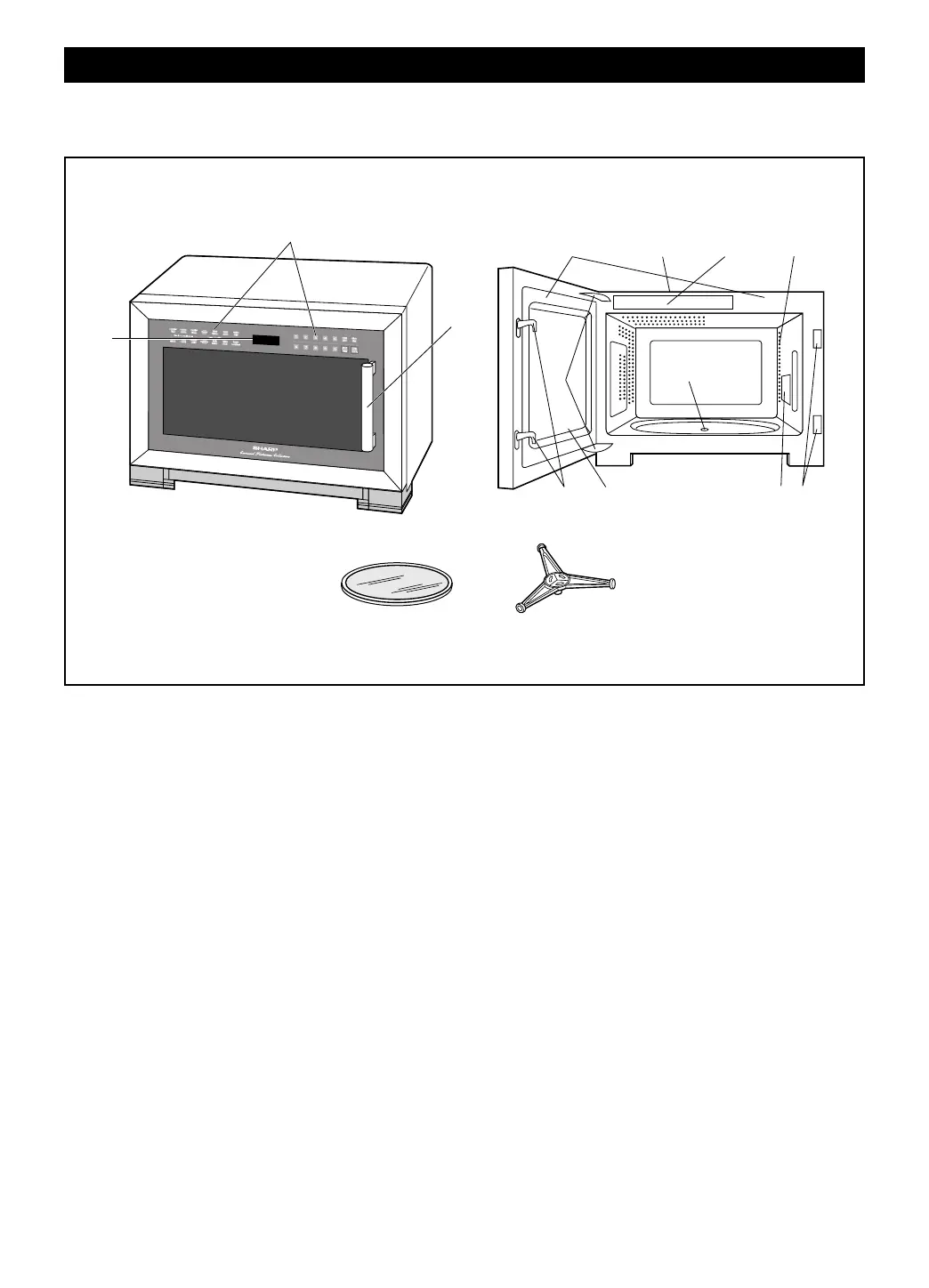

MICROWAVE OVEN PARTS
7
10 9
11
12
2
1
5
4
13 5
6
3
8
14
