R-950A
40
1. MODEL NUMBER 3. PART NO.
2. REF. NO. 4. DESCRIPTION
HOW TO ORDER REPLACEMENT PARTS
To have your order filled prompty and correctly, please furnish the following information.
INFORMATION FOR PARTS CHANGE
The transistors will be changed as follows, and new parts will be used for products from December 1997.
Interchangeability
A. OLD
↔
NEW B. OLD
→
NEW C. OLD
←
NEW D. OLD NEW
REPLACEMENT PART NO. Interchange- EFFECTIVE
REF.NO. DESCRIPTION OLD No. Q'ty NEW No. Q'ty ability FROM CODE
Q3, Q40
Q20-Q23 Transistor VSKRA101M//-3 8 VSDTA143ES/-3 8 A DEC/ '97 AB
Q90-Q91
Q24-Q25
Transistor VSKRA223M//-3 3 VSDTB143ES/-3 3 A DEC/ '97
AC
Q27
Q26 Transistor VSKRC243M//-3 1 VSDTD143ES/-3 1 A DEC/ '97 AB
Q60 Transistor VSKRC101M//-3 1 VSDTC143ES/-3 1 A DEC/ '97 AC

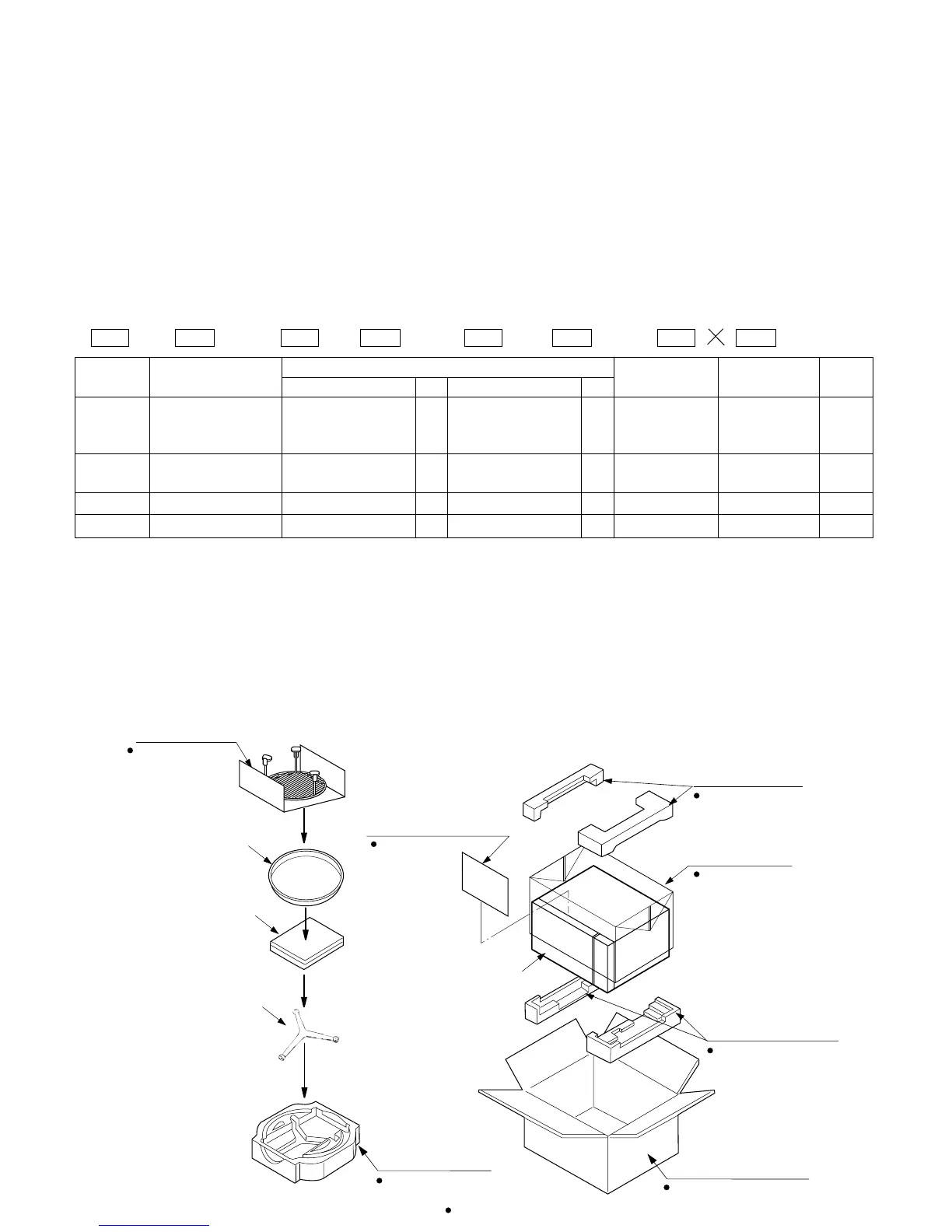

PACKING AND ACCESSORIES
4-3 TURNTABLE TRAY
6-11 OPERATION 
MANUAL 
6-3 COOK BOOK
4-2 TURNTABLE SUPPORT
TRAY PACKING FOAM
SPADPA198WRE0
DOOR PROTECTION SHEET
SPADPA178WRE0
MICROWAVE OVEN
TOP PAD ASSEMBLY
FPADBA362WRK0
PLASTIC BAG
SSAKHA012WRE0
TRAY HOLDER
(SPADFA348WRE0)
BOTTOM PAD ASSEMBLY
FPADBA363WRK0
Not replaceable items.
PACKING CASE
SPAKCC966WRE0

Sharp R-950A Specifications

Power

ac line voltage	220 V
microwave frequency	2450 MHz
ac power required (microwave)	1.6 kW
ac power required (convection)	1.6 kW
ac power required (grill)	1.05 kW
ac power required (simul)	3.15 kW

Oven Specifications

oven capacity	41 litre
output power (microwave)	900 W
output power (convection heater)	1500 W
output power (grill heater)	1000 W

Weight and Dimensions

width	627 mm
height	378 mm
depth	492 mm
cavity width	410 mm
cavity height	245 mm
cavity depth	410 mm
weight	29 kg
