25/34
•
•
•

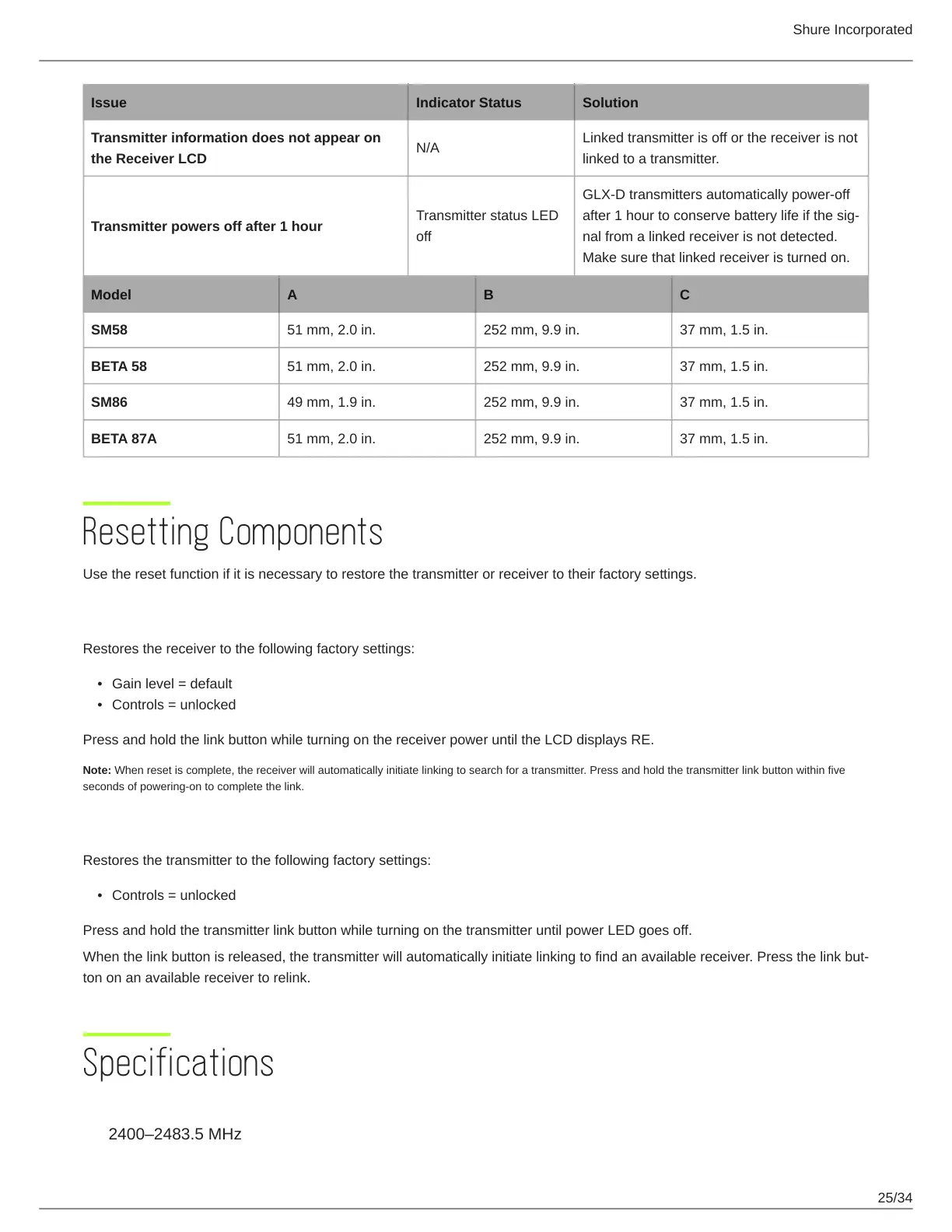

Issue Indicator Status Solution
Transmitter information does not appear on
the Receiver LCD
N/A
Linked transmitter is off or the receiver is not
linked to a transmitter.
Transmitter powers off after 1 hour
Transmitter status LED
off
GLX-D transmitters automatically power-off
after 1 hour to conserve battery life if the sig
nal from a linked receiver is not detected.
Make sure that linked receiver is turned on.
Model A B C
SM58 51 mm, 2.0 in. 252 mm, 9.9 in. 37 mm, 1.5 in.
BETA 58 51 mm, 2.0 in. 252 mm, 9.9 in. 37 mm, 1.5 in.
SM86 49 mm, 1.9 in. 252 mm, 9.9 in. 37 mm, 1.5 in.
BETA 87A 51 mm, 2.0 in. 252 mm, 9.9 in. 37 mm, 1.5 in.
Resetting Components
Use the reset function if it is necessary to restore the transmitter or receiver to their factory settings.
Resetting the Receiver
Restores the receiver to the following factory settings:
Gain level = default
Controls = unlocked
Press and hold the link button while turning on the receiver power until the LCD displays RE.
Note: When reset is complete, the receiver will automatically initiate linking to search for a transmitter. Press and hold the transmitter link button within five
seconds of powering-on to complete the link.
Resetting the Transmitter
Restores the transmitter to the following factory settings:
Controls = unlocked
Press and hold the transmitter link button while turning on the transmitter until power LED goes off.
When the link button is released, the transmitter will automatically initiate linking to find an available receiver. Press the link but
ton on an available receiver to relink.
Specifications
Tuning Bandwidth
2400–2483.5 MHz

Shure GLXD4 Specifications

General

Input voltage	14 - 18 V
Power supply type	AC
Battery life (max)	16 h
Current consumption	550 mA
Battery low indication	Yes
Impedance	50 Ω
Antenna type	Fixed
Display type	LCD
Mounting type	-
Product color	Black
Scan features	Channel scan, Group scan
Housing material	ABS
Antennas quantity	2
Channels quantity	8 channels
High density mode	No
Operating frequency type	Ultra High Frequency (UHF)
Radio Frequency (RF) range	2404 - 2478 MHz
Operating temperature (T-T)	-18 - 57 °C
Microphone frequency response	20 - 20000 Hz
Total Harmonic Distortion (THD)	0.2 %
XLR out	1

Weight and Dimensions

Depth	117 mm
Width	183 mm
Height	40 mm
Weight	286 g
