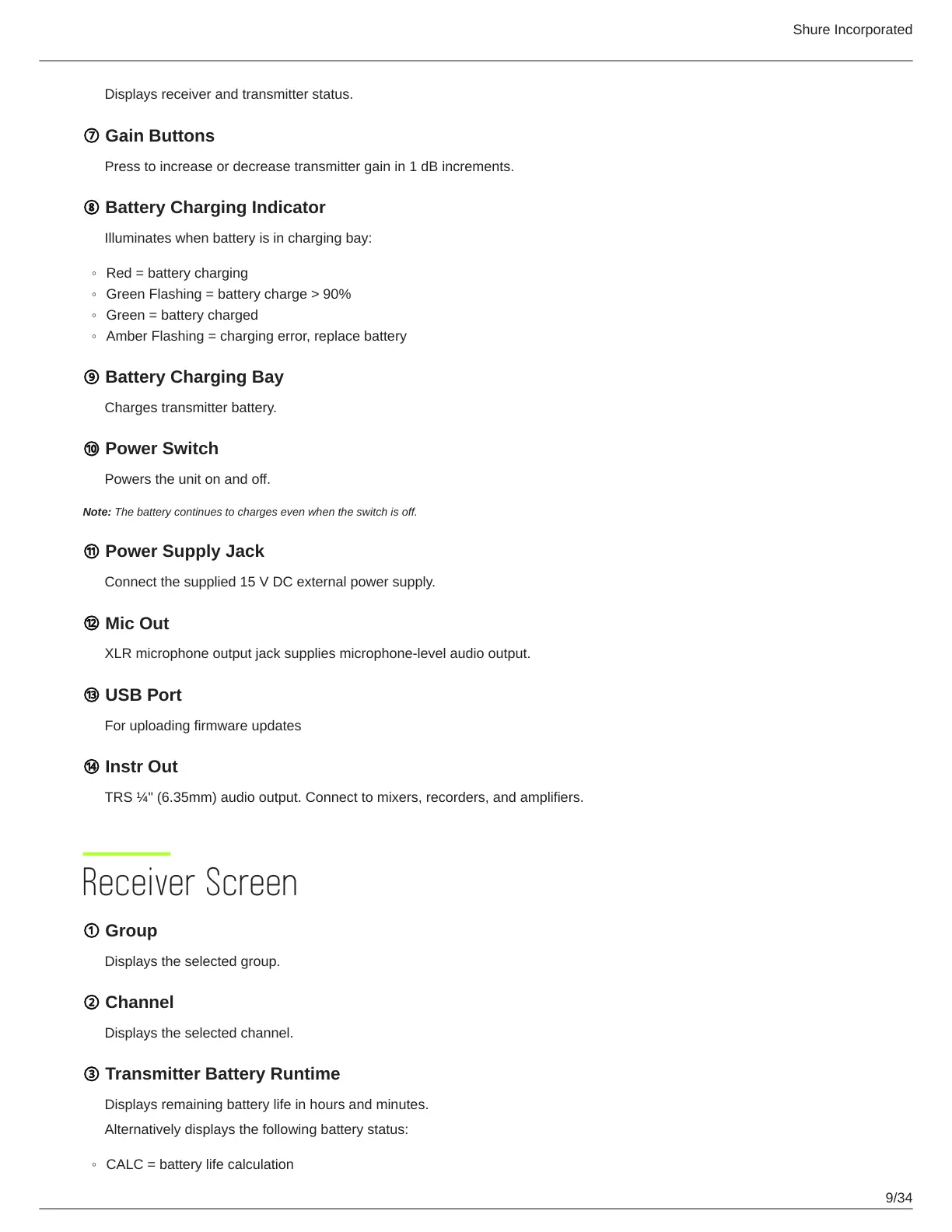

Displays receiver and transmitter status.
⑦ Gain Buttons
Press to increase or decrease transmitter gain in 1 dB increments.
⑧ Battery Charging Indicator
Illuminates when battery is in charging bay:
Red = battery charging
Green Flashing = battery charge > 90%
Green = battery charged
Amber Flashing = charging error, replace battery
⑨ Battery Charging Bay
Charges transmitter battery.
⑩ Power Switch
Powers the unit on and off.
Note: The battery continues to charges even when the switch is off.
⑪ Power Supply Jack
Connect the supplied 15 V DC external power supply.
⑫ Mic Out
XLR microphone output jack supplies microphone-level audio output.
⑬ USB Port
For uploading firmware updates
⑭ Instr Out
TRS ¼" (6.35mm) audio output. Connect to mixers, recorders, and amplifiers.
Receiver Screen
① Group
Displays the selected group.
② Channel
Displays the selected channel.
③ Transmitter Battery Runtime
Displays remaining battery life in hours and minutes.
Alternatively displays the following battery status:
CALC = battery life calculation

Shure GLXD4 Specifications

General

Input voltage	14 - 18 V
Power supply type	AC
Battery life (max)	16 h
Current consumption	550 mA
Battery low indication	Yes
Impedance	50 Ω
Antenna type	Fixed
Display type	LCD
Mounting type	-
Product color	Black
Scan features	Channel scan, Group scan
Housing material	ABS
Antennas quantity	2
Channels quantity	8 channels
High density mode	No
Operating frequency type	Ultra High Frequency (UHF)
Radio Frequency (RF) range	2404 - 2478 MHz
Operating temperature (T-T)	-18 - 57 °C
Microphone frequency response	20 - 20000 Hz
Total Harmonic Distortion (THD)	0.2 %
XLR out	1

Weight and Dimensions

Depth	117 mm
Width	183 mm
Height	40 mm
Weight	286 g
