① Input Channels
Adds analog line- or aux-level signals to the digital network. When the
device is associated to an MXW Group, inputs are automatically routed
to Linked microphone channels (Input A to channels 1-4; Input B to 5-8).
② Output Channels
Converts digital network audio to an analog output for each channel.
When associated to an MXW group, access point channels are
automatically routed to the outputs of the ANI.
③ Channel Selector
Selects a channel to perform the following functions:
Action Function
Single Press • Listen to that channel at the headphone jack
• Display and adjust the channel output level and
attenuation
• Monitor output signal on the level meter
Press and Hold
(3 seconds)
Mute/unmute a channel. Mute is indicated by the
mute LED.
④ Selected Channel LED
Illuminates when a channel is selected.
⑤ Signal Strength LED (sig/clip)
Indicates audio signal strength for each channel:
- Green = Normal
- Amber = Strong
- Red = Clipping (to eliminate clipping, attenuate the signal level at the audio
source)
⑥ Mute LED
Illuminates red when the channel output is muted (hold its channel
select button for 3 seconds). A muted channel is still routed to the
HEADPHONE jack for monitoring or troubleshooting.
⑦ Input Level Selector
Set the selected channel to line- or aux-level to match the input signal.
⑧ Output Level Selector
Set the selected channel to an output level that matches the connecting
device:
- line: +4 dBu
- aux: -10 dBV
- mic: -30 dBV
Front Panel
⑨ Output Attenuation Control
Use the up/down buttons to attenuate the channel output from 0 dB (no
attenuation) to -24 dB in 1 dB increments, and from -24 to -78 in 3 dB
increments.
⑩ Level Meter
Displays a selected channel's audio level in dBFS. It is good practice to
use -18 dBFS on the output meter as an approximation of 0 VU on an
analog meter.
⑪ Hardware Status LEDs
Indicate the status of the hardware:
LED Color Status
Power Green Unit is powered on.
Ethernet Green Connected to an Ethernet device.
Network
Audio
Green All connected receive channels are OK
(receiving digital audio as expected).
Flashing
Green
One or more connected receive channels
experiencing a subscription error or is
unresolved (transmitting device is off,
disconnected, renamed or has incorrect
network setting).
Off No receive channels connected (routing has
not been established).
Lockout Red Front panel gain and mute controls are locked.
The LED will blink when a button is pressed
while the hardware is locked.
⑫ Headphone Volume Knob
Adjusts the volume to the headphone output.
⑬ Headphone Output
1/4" (6.35 mm) output jack for monitoring audio going to and from the
digital audio network.
Note: Audio is present only when the unit is connected to a digital audio
network.
①
②

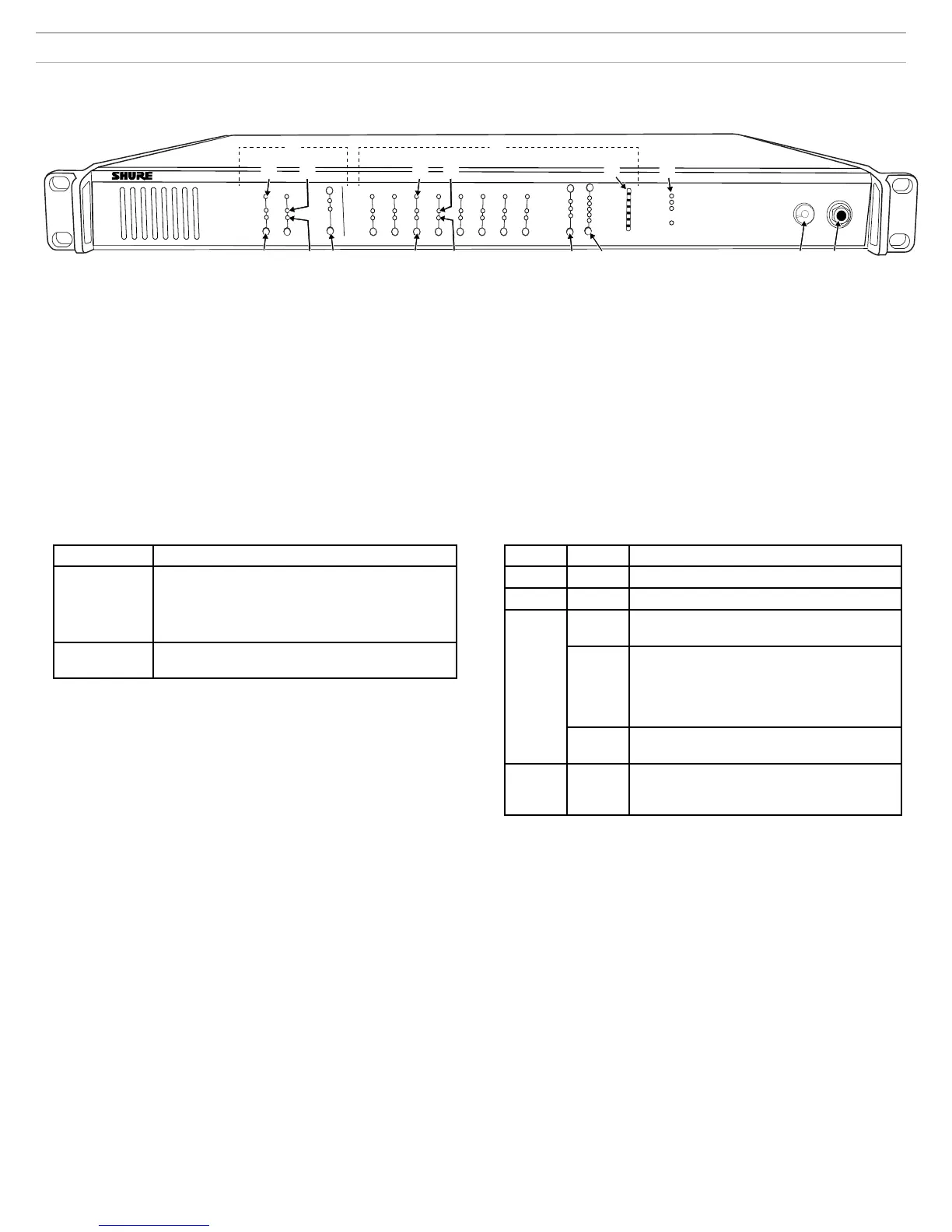

Audio Network Interface (ANI)
④
④
⑤ ⑤
⑩
⑪
③
⑥ ⑥⑦
⑧ ⑨
⑫
⑬
③
